Height Adjustable Electric Standing Desk Control Box belongs to 1-motor control box with external power supply. It features small size, full voltage and high power. It can also connect to battery bank. Using power bank enables you to move your desk at your will.
Jingshi holds the advantage of self-developed technology concerning intelligent motion control, and provides one-stop solutions for a wide range of intelligent terminal products that call for drive. Our company offers customers products and services that are good value for money. The linear drive control boxes we produced are extensively applied in areas of brush motors and brushless motors, for example, electric adjustable desks, medical beds, gardening implements and massage chairs. All products can be tailored to meet diverse needs. With our products, users are able to realize kinds of movements as expected, and to run the entire system through software programs.
Basic property of Height Adjustable Electric Standing Desk Control Box
Input: 24-36V
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Basic property of Rechargeable Battery Pack:
1. Output parameters: 29V2.2A
2. Maximum output parameter: 29V5.5A
3. Enter the charging parameters: 29V1.8A
4. Maximum charging parameters: 29V0.5A
5. Battery capacity; 2200MAH

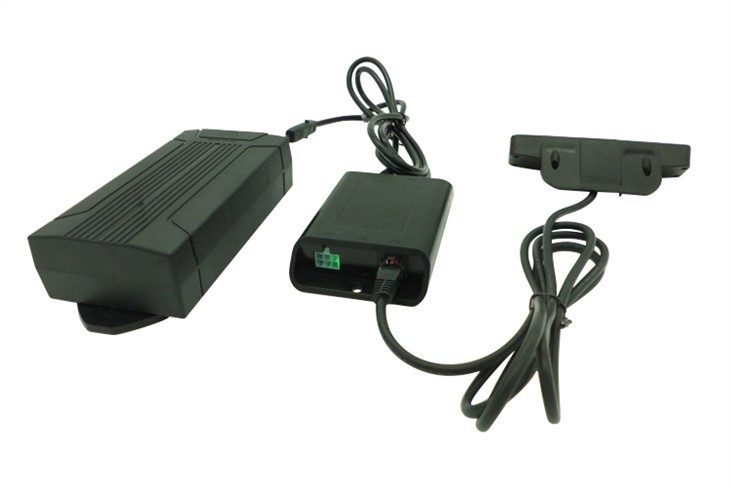

When connected to the adapter, the battery pack can be charged. It can be fully charged in about 5 hours. When in use, connect the battery pack and the control box (external power) with a wire so that the battery pack works as a mobile power source to supply power to the control box. Currently, battery packs are mainly used for control boxes (external power).

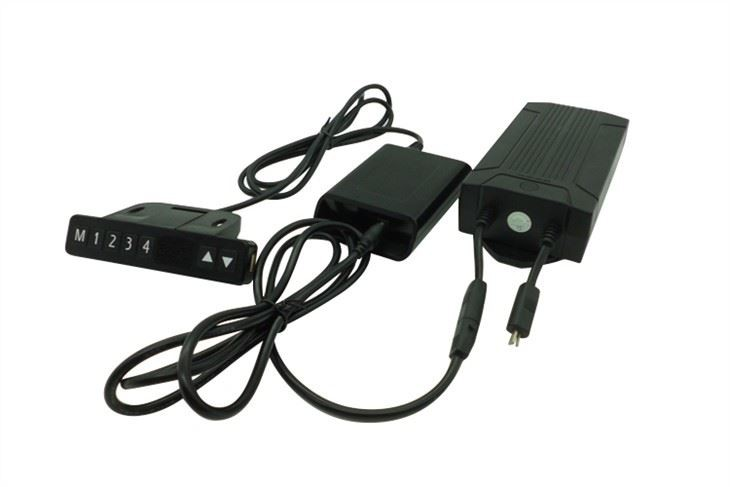

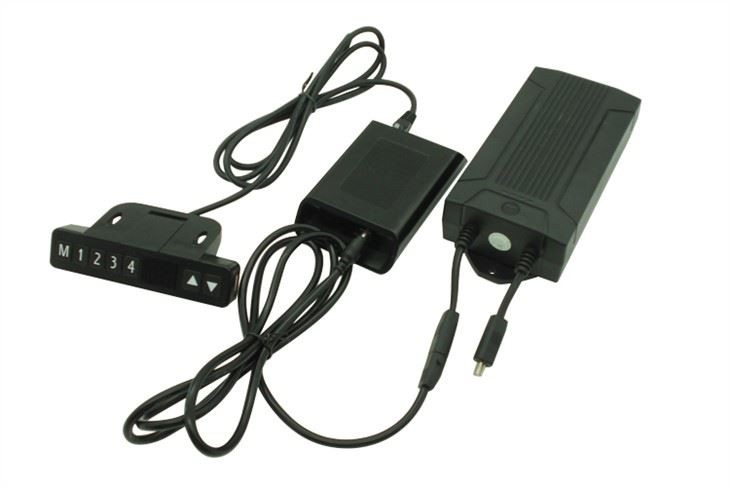

This Hand Controller holds an advantage of 7 buttons, able to set 4 different heights in memory. The screen will automatically show you real-time height.There is a USB interface on the side enabling users to charge up.
Types of standing desk control box:
Applications：
Company related introduction:
Jingshi company emphasizes technological innovation and improvement of purchase channels, and collaborate with partners to realize product stability. We hold independent intellectual property rights and patents and develop markets of over 10 countries around the world. Our products have obtained many global certificates, for example UL, CB, CE, etc. In 2018, Jingshi company was evaluated by clients as China's leading solution provider regarding lifting table control system.
FAQ
What are the characteristics of Jingshi Technology's latest generation of control boxes?
Features:
1. Standby power consumption is less than 0.1W, any key to wake up
2. Support high-precision anti-pinch detection
3. Motor short-circuit protection, to prevent burnout to the control system because of motor short-circuit.
4. Support over-voltage protection, optional Bluetooth, wireless and voice functions are available.
If you have any questions about Height Adjustable Electric Standing Desk Control Box, don’t hesitate to contact us.
