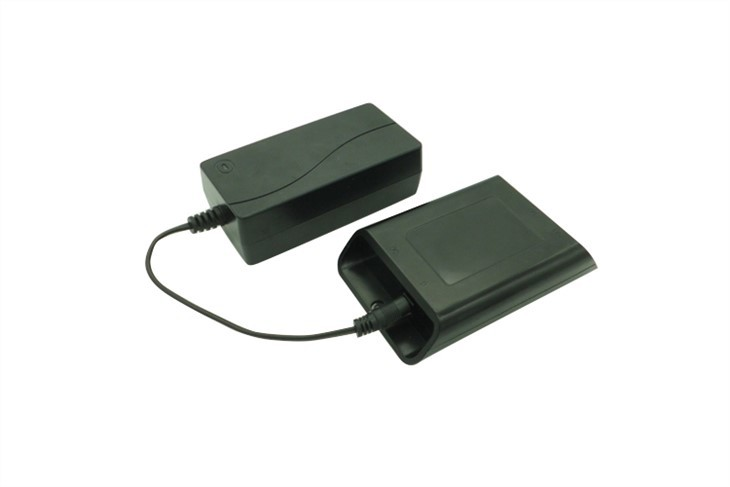

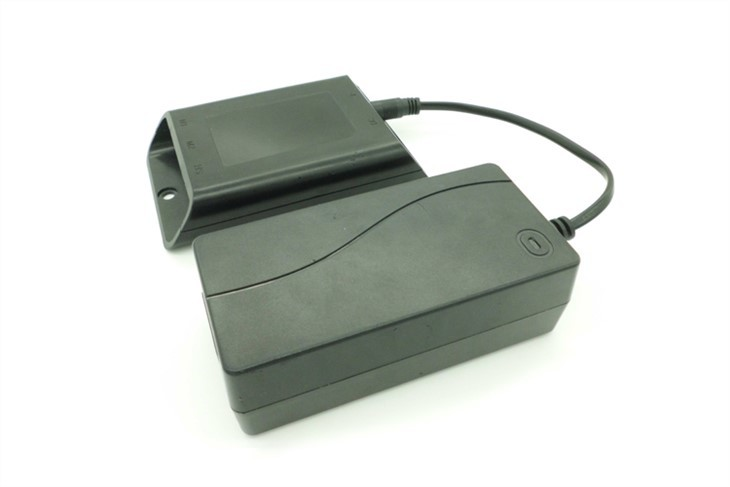

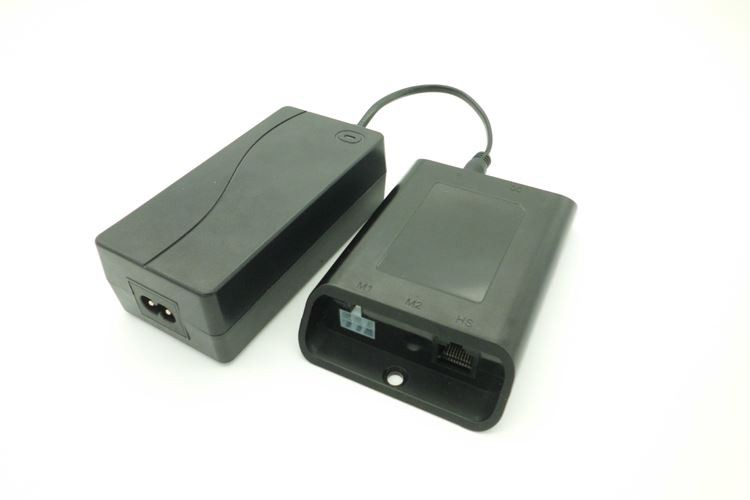

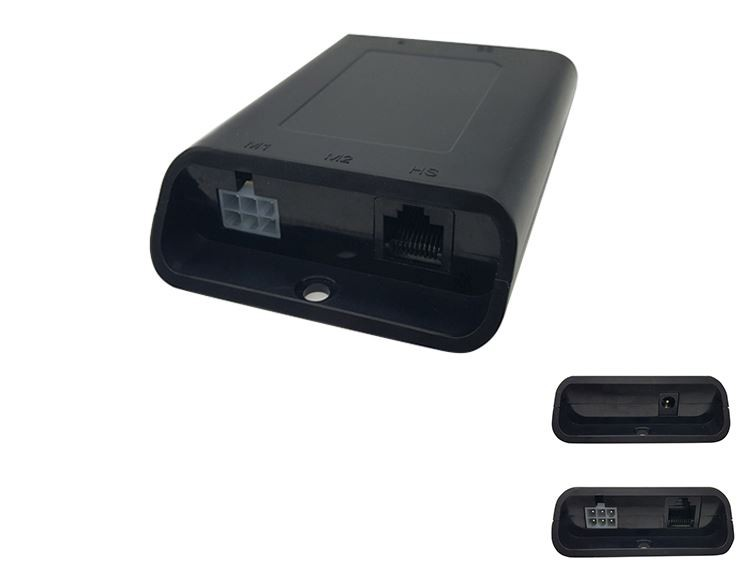

Corner Electric Desk Control Box belongs to 1-motor control box with external power supply. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains. It can also connect to battery bank. Using power bank enables you to move your desk at your will.
Basic property of Control Box
Input: 24-36V
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Functions of Corner Electric Desk Control Box
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 200KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program of Corner Electric Desk Control Box, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Bluetooth | Support | Support | Support |
Multi-machine parallel | not support | Support up to 16 | not support |
EMC | Pass | Pass | Pass |
modify parameters on PC | Support | Support | Support |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |

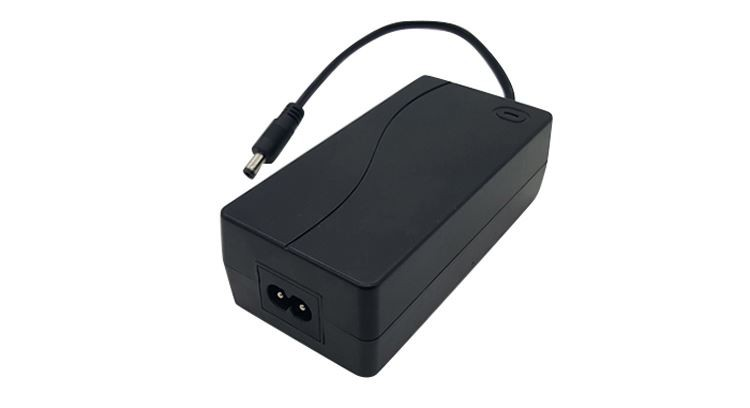

Description of Adapter:
1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Product size: 10.5*5.5*3.5cm
OEM: OEM customization

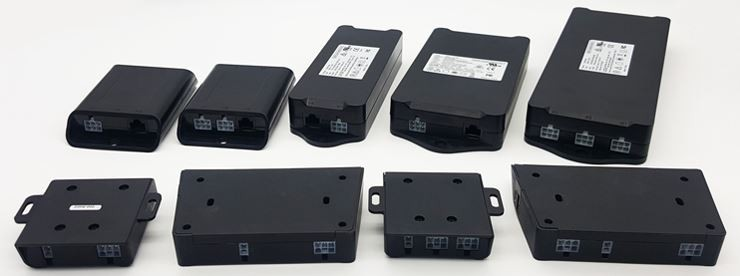

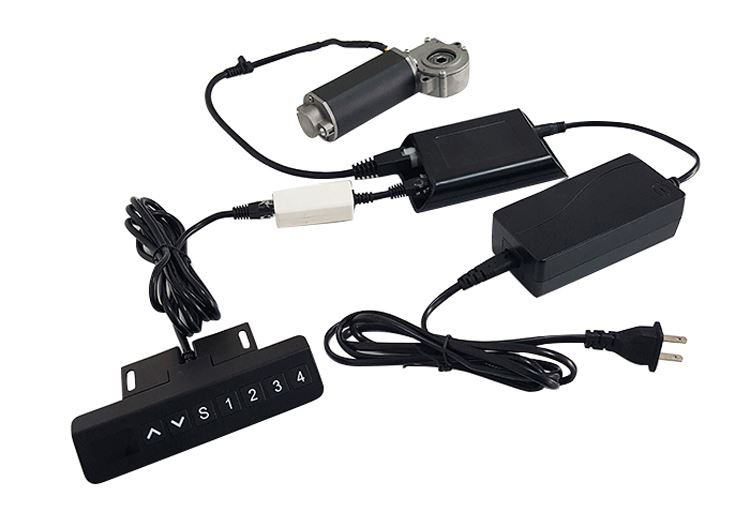

Types of standing desk control box we produce:
Applications of Control Box:
Product testing

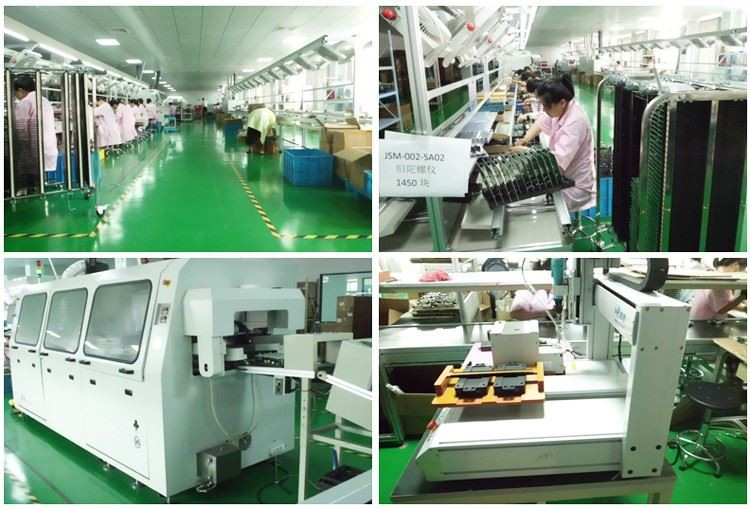

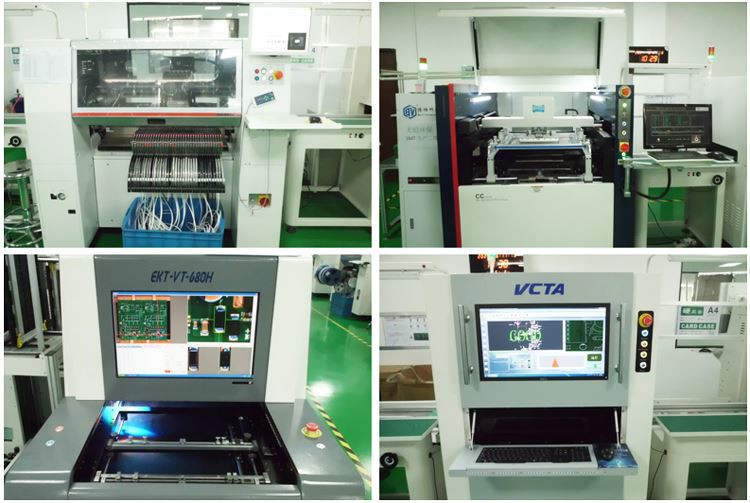

The test adopts the fully automatic test system independently developed by Jingshi. The test system can detect the following contents of the control board:
1. Whether each output of the power supply is normal
2. Whether there are any problems of the main power supply, with load, overload, over temperature, and short circuit
3. Whether the hardware sensors of each part of the control board are normal
4. The control board can be initialized with table legs, rise and fall, etc.
When there is an abnormality during the automatic test, the system can promptly ring through the buzzer as quickly as possible.
Contact us for more information about Corner Electric Desk Control Box.

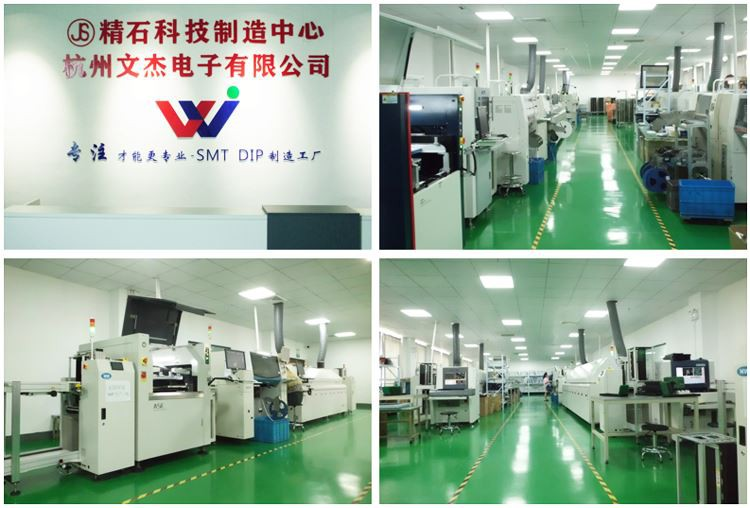

JS factory:
