product description of Small Height Adjustable Desk Control Box
· This control box belongs to 1-motor control box with external power. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Product parameters of Small Height Adjustable Desk Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |
Functions of Electric Height Adjustable Table Control System
Adjustable Desk Controller function
1.Using MOS conductor scheme with gyroscope
2.With reverse brake function, it does not drop under the weight of 200KG
3.5KG high-precision collision protection, no malfunction
4.Protection to keep left and right level, preventing things on desk from falling
5.When No-load, it can run continuously for 20 minutes without protection
6.It supports Bluetooth and can be controlled by apps and wireless computers
7.System parameters can be modified by PC software
8.To update the program, it’s not necessary to disassemble the shell, or turn on power
9.Quite convenient to check system problems with 30 error codes
Applicable products: LCD monitors, surveillance cameras, desktop routers, optical modems.
It enjoys intelligent protection. The built-in intelligent protection system features safety and convenience, with safety protections of over-current, over-voltage, short-circuit, escorting your equipment.

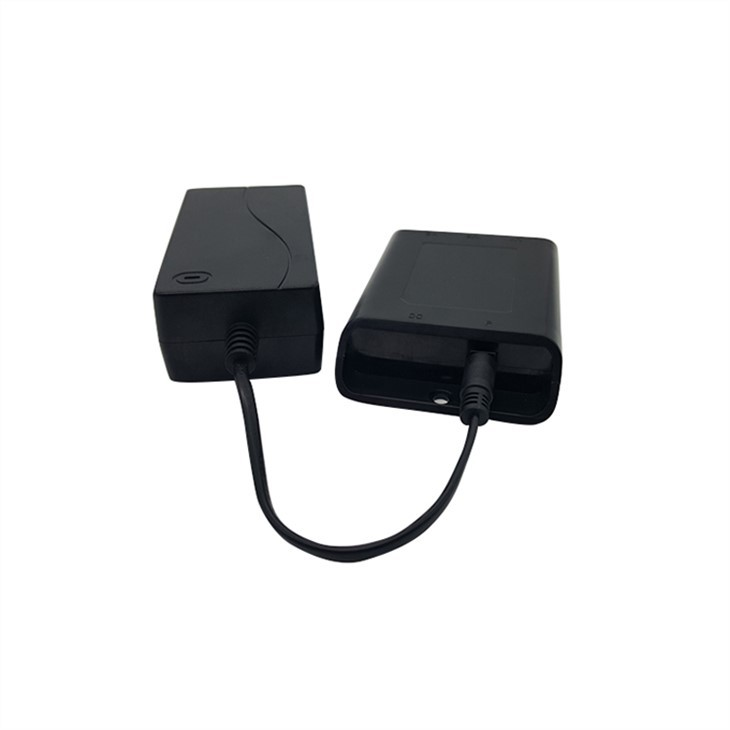

Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Product size: 10.5*5.5*3.5cm
OEM: OEM customization
Types of standing desk control box we produce:
Fixed power supply VS Mobile power supply
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. Hangzhou Jingshi Technology Co., Ltd. was founded in 2017, and Changxing Jingshi Technology Co., Ltd. was founded in 2018.
Our advantages:
1. Strong R&D team
2. Professional processing factories
3. Deep understanding of the industry
4. Sound awareness of service
If you have any questions about Electric Height Adjustable Table Control System, don’t hesitate to contact us.
