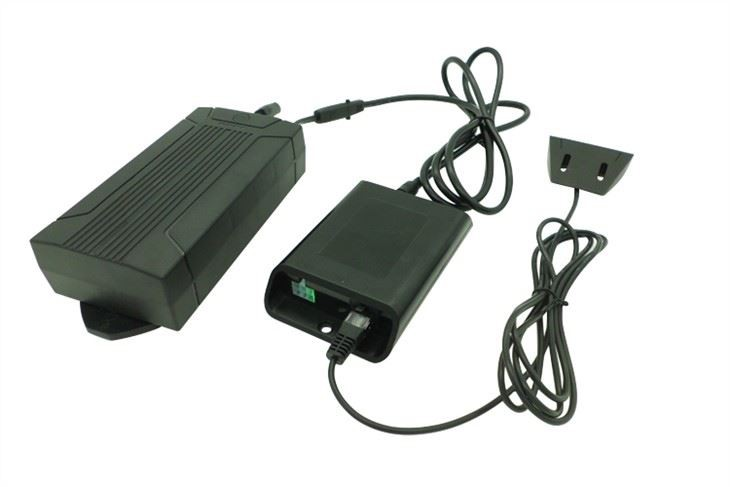

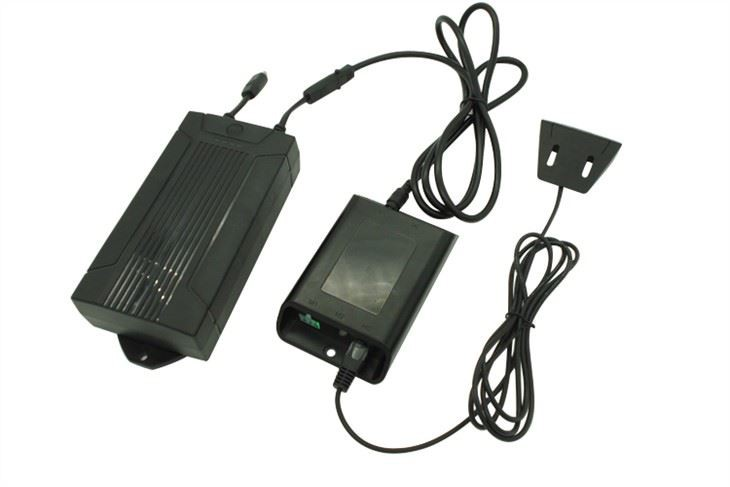

Electric Office Desk Control Box

5 0 Reviews
Input: 24-36V Output:12-32V Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor MOQ=1000 PCS Electric Office Desk Control Box belongs to 1-motor control box with external power supply. Using power bank enables you to move your desk at your will.
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

Basic property of Electric Office Desk Control Box

Input: 24-36V

Output:12-32V

Duty cycle: 2min ON/18min OFF

Product scheme: MOS conductor

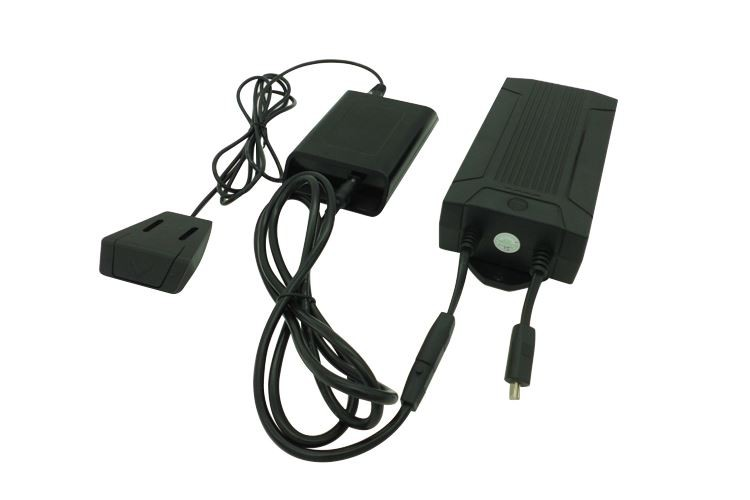

wholesale Electric Office Desk Control Box.jpg

protection functions of control boxes made by Jingshi Technology

protection functions automatically start when standing desk encounter cases of

motor open circuit, Hall fault,

motor short circuit, low voltage,

illegal power-off, illegal plugging and unplugging,

desktop tilt angle being too large,

top and bottom anti-pinch



China control box.jpg








wholesale battery bank (1).jpg

Basic property of Rechargeable Battery Pack:

        1. Output parameters: 29V2.2A

        2. Maximum output parameter: 29V5.5A

        3. Enter the charging parameters: 29V1.8A

        4. Maximum charging parameters: 29V0.5A

        5. Battery capacity; 2200MAH

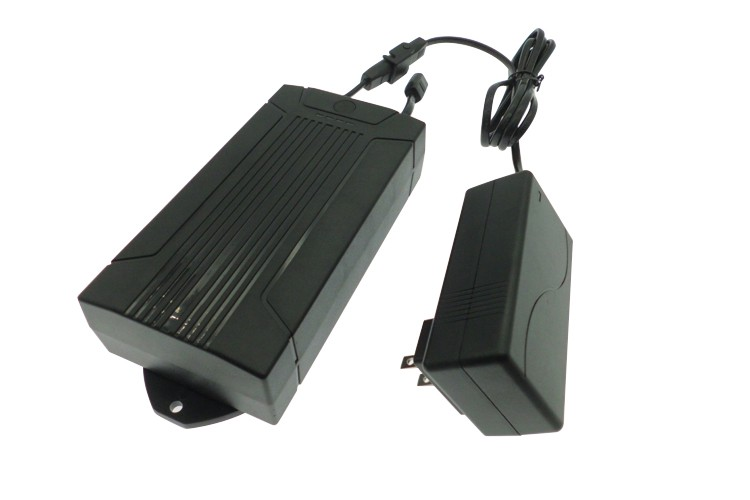

wholesale power bank and adaptor.jpg

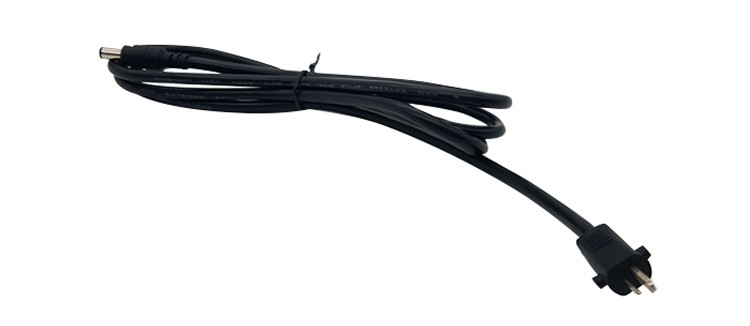

When connected to the adapter, the battery pack can be charged. It can be fully charged in about 5 hours. When in use, connect the battery pack and the control box (external power) with a wire so that the battery pack works as a mobile power source to supply power to the control box. China cable suppliers.jpg

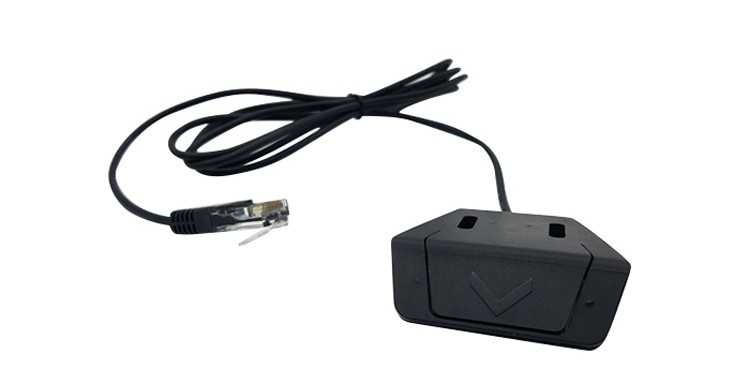

Standing Desk Handset factory.jpg

There are two buttons on this keypad: one is downward button in the front; the other is upward button that is right on the opposite side of downward button.



Types of standing desk control box:

wholesale standing desk control boxes.jpg

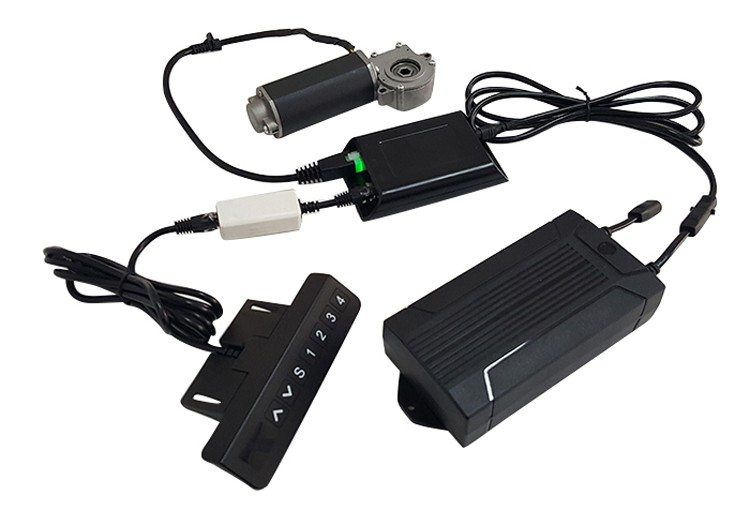

China mobile battery pack.jpg

Applications:

Our products are applicable to adjustable desks, massage chairs, massage sofas, electric medical beds, electric leisure beds, smart home and voice recognition.

Unknown application areas:

The linear drive system can be customized and developed according to customer requirements.




applications of standing desk control box.jpg

Company related introduction: In the year of 2014, Jingshi Technology started to provide our clients with tailored control system of adjustable desks, serving clients in a point-to-point way.

The year of 2017 saw Hangzhou Jingshi Technology was established, and the year of 2018 witnessed Changxing Jingshi Technology was established. On the basis of 6-year technical expertise, we have successfully innovated 3 generations of control systems that feature small size, full voltage and high power. The excellent functions and stability have earned solid reputation for Jingshi Technology. In the years to come, our company will proceed to work on the R&D and break through the current industry bottleneck.

FAQ

1. Do the products have corresponding patents and certifications?

Sure. We hold independent intellectual property rights of computer software and patents of anti-pinch adjustable desks. Our products have acquired many

certifications, such as TUV, CB, CE, UL, FCC, PSE, SAA, C-TICK, KC and CCC.

Contact us for more information about Electric Office Desk Control Box.


Previous:
Next:

Related Products

Model JSM-2.1-0.3W
Input 100-240V 50/60Hz, 5A
Output 32Vdc, each 110VA, total 220VA
Maximum power 350W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL, UKCA, SAA, KC
0
0
Model JSM-4.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 32Vdc, each 110VA, total 220VA
Maximum power 600W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-1.1-0.3W
Input 100-240V 50/60Hz, 2.5A
Output 24Vdc, each 100VA
Maximum power 150W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Angular design, with 1.5m connection cable
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Compact and flexible design, with 1.5m connection cable
0
0
Piano key design with background light
Lifting function,3 memory positions can be selected
Optional USB charging
Strong design technology, with 1.5m connection cable
0
0
Bluetooth support
OLEO display, rich menu
With two memory buttons
Smart appearance, RGB light effect
Up and down operation mode is flexible and fast
The startup Logo is displayed. Can customize the logo
0
0
Bluetooth support
With two memory buttons
Smart appearance, RGB light effect
Slim touch keys with background light
Supports max 18W Type-c fast charging
OLEO display, rich menu, Can customize the logo
0
0
OLEO display, rich menu
The knob can be pressed as a key
Knob comes with RGB light effect
The knob automatically rotates with the table
The startup Logo is displayed. Can customize the logo
Knob using BLOC motor, through the FOC control can simulate a variety of feel
0
0
