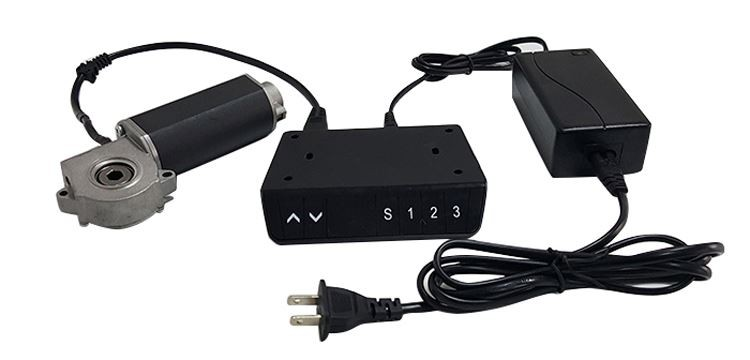

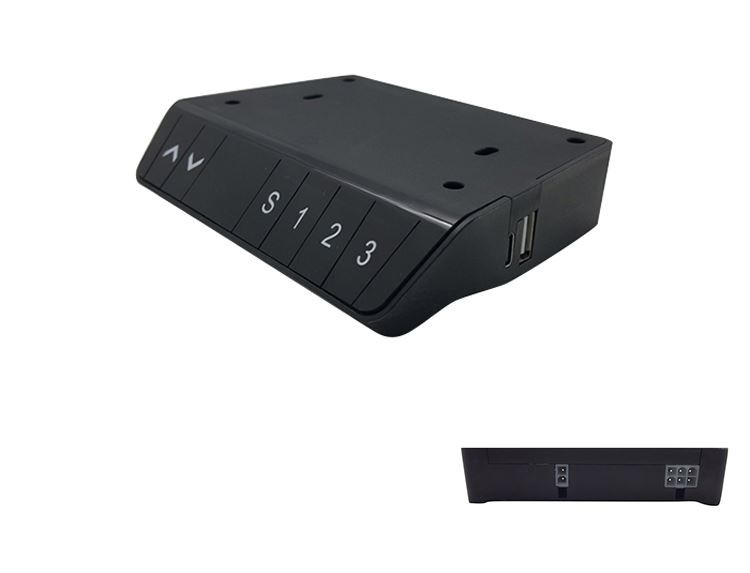

Executive Sit Stand Desk Control Box belongs to 1-motor control box with external power supply and it combines the functions of control box and control panel. In the front, there are 6 keys that can adjust desk height. At the back, It can directly connect to motors. On the right, there are 2 ports enabling users to charge up cellphones or something.
This is one of our new products released in the year of 2021. Its is quite small, creative and innovative.
Product parameters
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 130×94×25mm |
Product solutions | MOS scheme |
Selling points
1. Infineon chips imported from Germany
2. The running distance is accurate to 1mm
3. 100% simultaneity, 10,000 operations, 0 error on 2 columns
4. Low standby power consumption, less than 0.3W
5. Executive Sit Stand Desk Control Box adopts the cutting-edge MOS conductor scheme
6. Able to support the speed of 60mm per second
7. Low noise

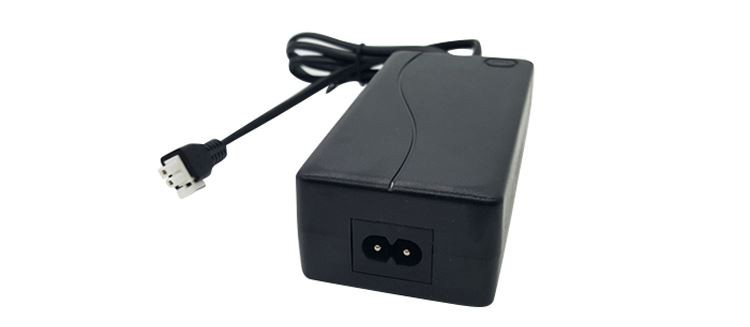

Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box we produce:
Jingshi company makes 1-motor control box, 2-motor control box, 3-motor control box. Up to date, we have innovated 3 generations of control system. We also make hand controllers.
