You are here: Home / Products / Standing Desk Control Box / Single Motor Desk Control Box / Get Up Desk Control Box

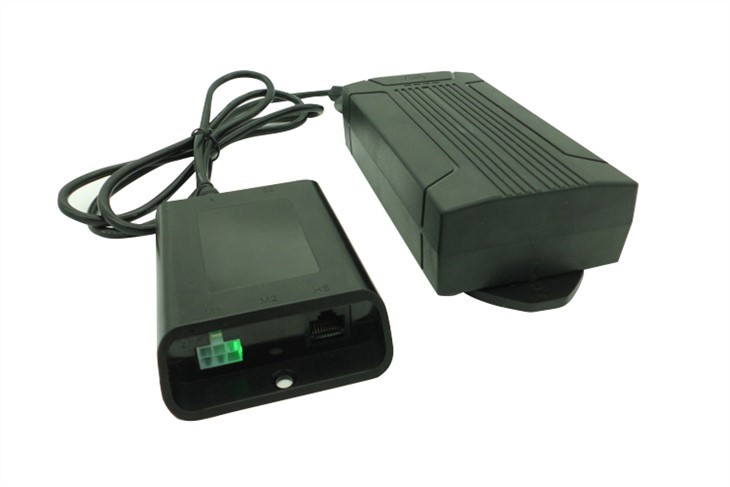

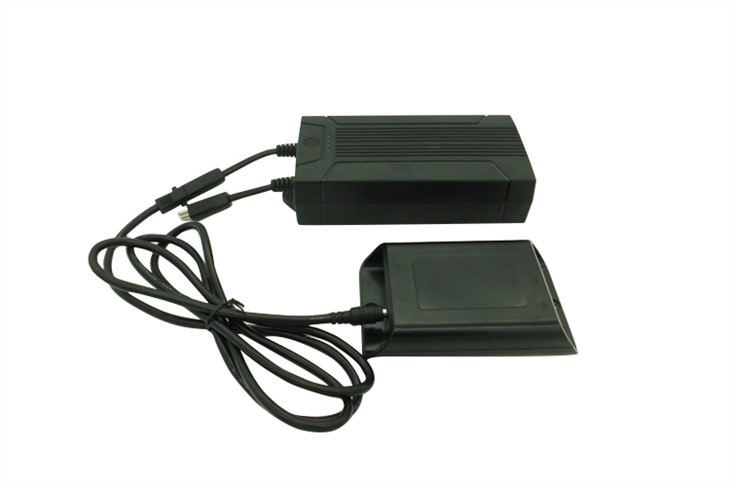

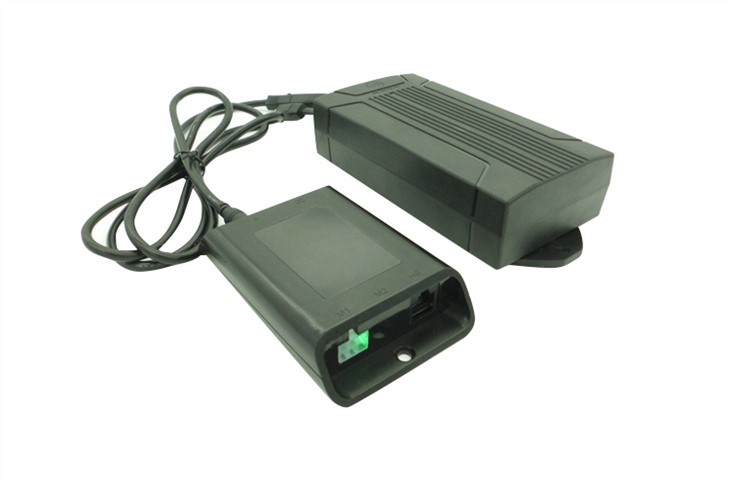

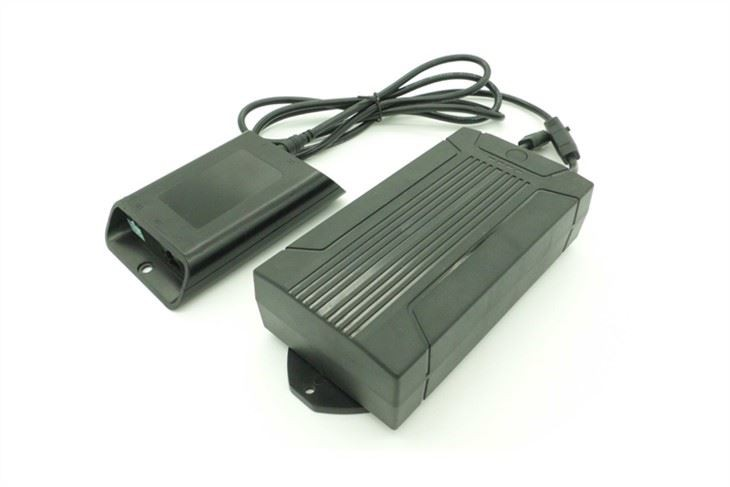

Get Up Desk Control Box

5 0 Reviews
Input: 24-36V Output:12-32V Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor MOQ=1000 PCS Get Up Desk Control Box belongs to 1-motor control box with external power supply. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains. It can also connect to battery bank. Using power bank enables you to move your desk at your will.
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

Get Up Desk Control Box belongs to 1-motor control box with external power supply. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains. It can also connect to battery bank. Using power bank enables you to move your desk at your will.

Basic property

Input: 24-36V

Output:12-32V

Duty cycle: 2min ON/18min OFF

Product scheme: MOS conductor

Get Up Desk Control Box 2China control box.jpg

wholesale battery bank (1).jpg

Battery pack:

1. Output parameters: 29V 2.2A

2. Maximum output parameter: 29V 5.5A

3. Enter the charging parameters: 29V 1.8A

4. Maximum charging parameters: 29V 0.5A

5. Battery capacity; 2200MAH

When connected to the adapter, the battery pack can be charged. It can be fully charged in about 5 hours. When in use, connect the battery pack and the control box (external power) with a wire so that the battery pack works as a mobile power source to supply power to the control box. Currently, battery packs are mainly used for control boxes (external power).


Comparison of three generations of control boxes made by JS Technology

products

1st generation

2nd generation

3rd generation

Drive way

Mos+ Relay

Mos

Mos

Number of motors

1,2,3

1,2,3

1,2

Hand control method

Digital display / two keys / touch

Digital display / two keys / touch

Digital display / two keys

Anti-pinch

detection accuracy

15Kg

5Kg

5Kg

Bluetooth

Support

Support

Support

Height memory

Two keys 0/digital display 4 groups

Two keys 1/digital display 3 groups

Two keys 1/digital display 3 groups

Multi-machine parallel

not support

Support up to 16

not support

Standby

power consumption

0.2W

0.1W

0W



Types of standing desk control box:wholesale standing desk control boxes.jpg





China mobile battery pack.jpg

Applications of Get Up Desk Control Box:

Get Up Desk Control Box can be applied to lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition,TV mount

Unknown application areas:

The linear drive system can be customized and developed according to customer requirements.


applications of standing desk control box.jpg

Photos of factory:

JS is the origin factory manufactuting Get Up Desk Control Box. Focus on wholesale and customization of electric lifting desk control box

free design/origin factory/ODM/OEM/

Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with 2 sockets on single side and dual-motor controller with 2 sockets on two sides. Products can also be customized according to users’ needs.

Besides, Jingshi company produces matching hand controls and accessories, including rechargeable battery packs, bluetooth, adapters and cables.

FAQ

1. Who is your clients?

We specialize in manufacturing control boxes as well as hand controls. In terms of new clients, once we receive the electric lifting columns, we can measure the parameter and check the property of it. Only then can we program the control box and offer the samples effective for you. We serve companies and factories whose products need drive.

2. If I send your electric lifting columns, when can I get the tailored samples?

After we receive the columns, about 7 days, we can send samples out.

3. Are you a trading company or manufacturer?

Jingshi Technology is a manufacturer with its own factory. Jingshi owns two companies, Hangzhou Jingshi Technology and Changxing Jingshi Technology.

4. How about the size of the company, the number of production and R&D personnel?

Jingshi Technology covers an area of 4000 square meters altogether with 120 staff including 12 R&D personnel.

Contact us if you have any questions about Get Up Desk Control Box.

Previous:
Next:

Related Products

Model JSM-2.1-0.3W
Input 100-240V 50/60Hz, 5A
Output 32Vdc, each 110VA, total 220VA
Maximum power 350W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL, UKCA, SAA, KC
0
0
Model JSM-4.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 32Vdc, each 110VA, total 220VA
Maximum power 600W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-1.1-0.3W
Input 100-240V 50/60Hz, 2.5A
Output 24Vdc, each 100VA
Maximum power 150W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Angular design, with 1.5m connection cable
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Compact and flexible design, with 1.5m connection cable
0
0
Piano key design with background light
Lifting function,3 memory positions can be selected
Optional USB charging
Strong design technology, with 1.5m connection cable
0
0
Bluetooth support
OLEO display, rich menu
With two memory buttons
Smart appearance, RGB light effect
Up and down operation mode is flexible and fast
The startup Logo is displayed. Can customize the logo
0
0
Bluetooth support
With two memory buttons
Smart appearance, RGB light effect
Slim touch keys with background light
Supports max 18W Type-c fast charging
OLEO display, rich menu, Can customize the logo
0
0
OLEO display, rich menu
The knob can be pressed as a key
Knob comes with RGB light effect
The knob automatically rotates with the table
The startup Logo is displayed. Can customize the logo
Knob using BLOC motor, through the FOC control can simulate a variety of feel
0
0
