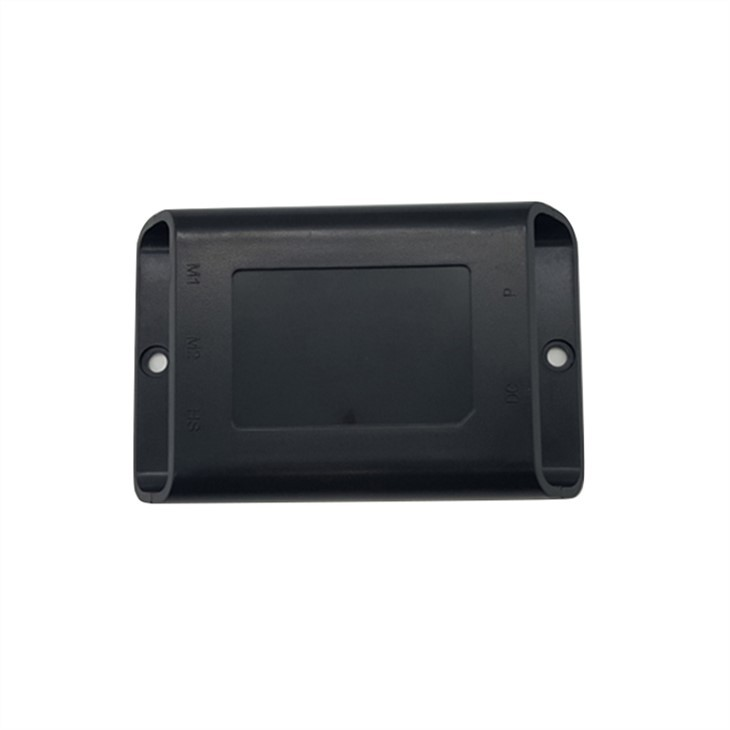

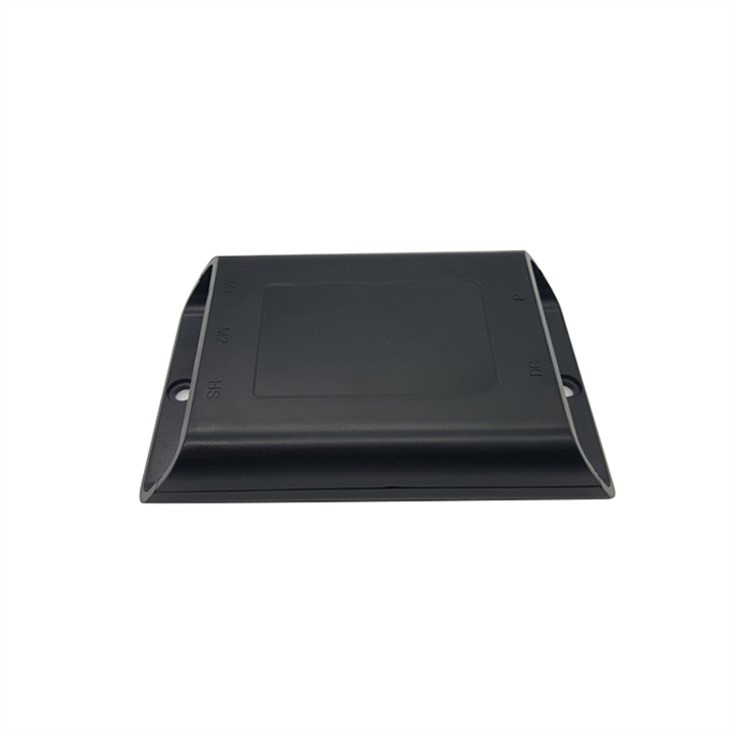

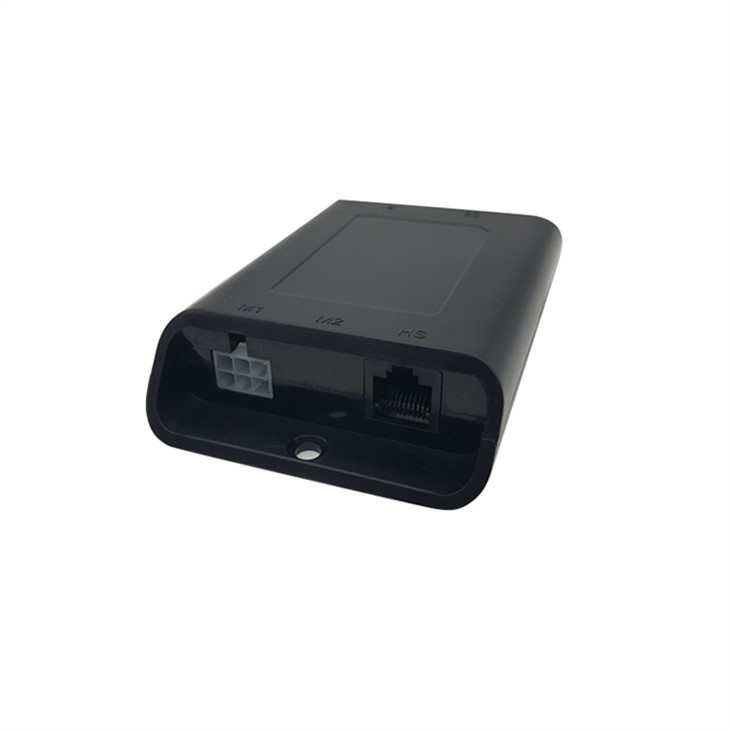

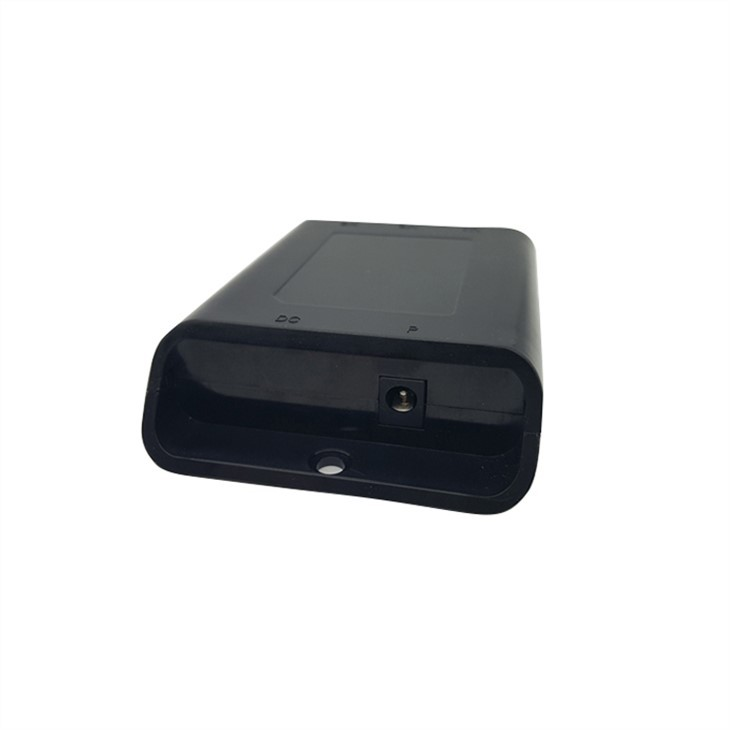

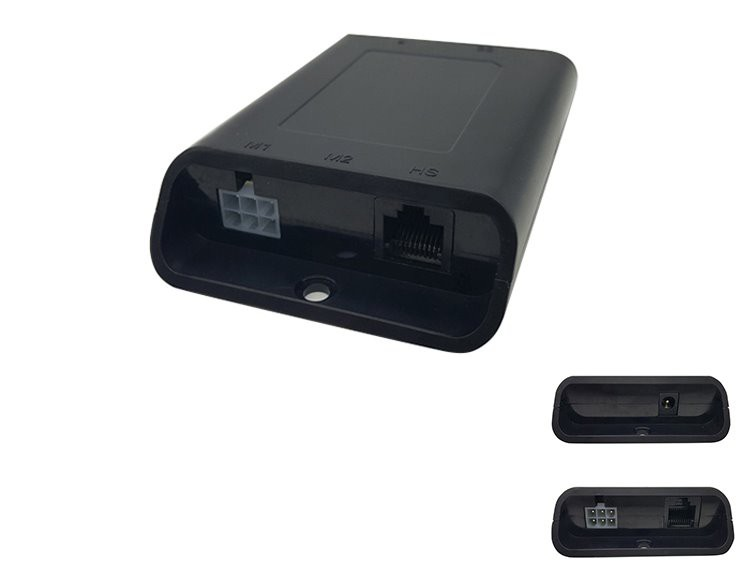

product description of Height Adjustable Table Control System
· This control box belongs to 1-motor control box with external power. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Features
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Product parameters of Height Adjustable Table Control System
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |

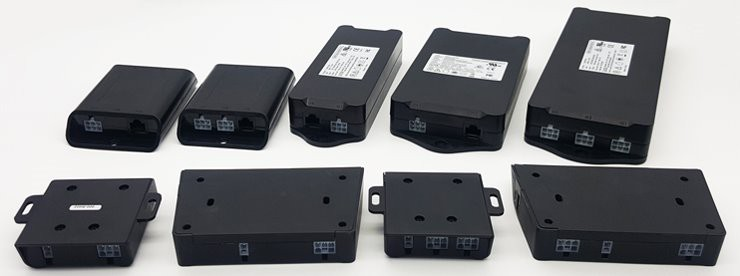

Types of standing desk control box we produce:

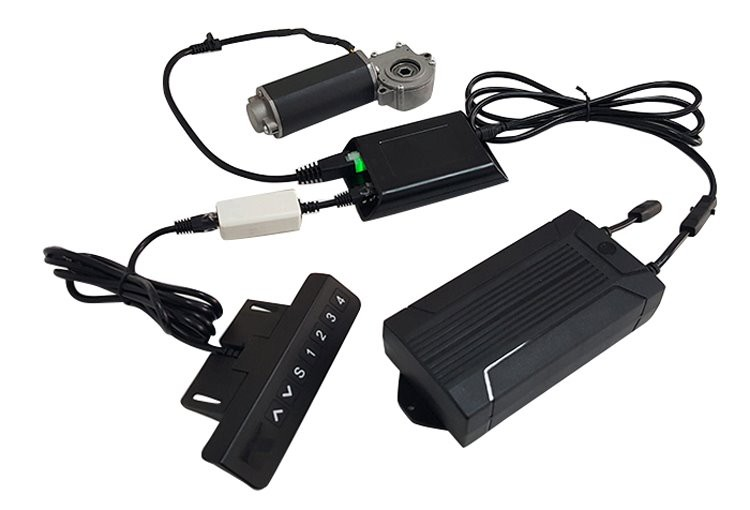

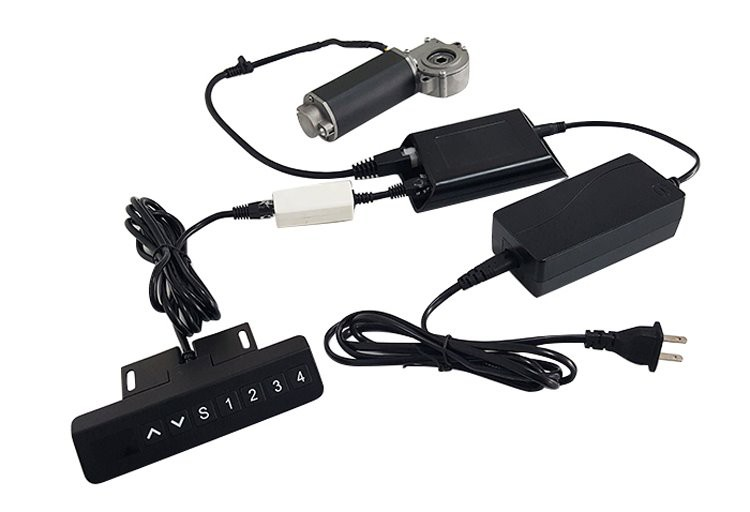

Using adaptor VS using battery bank
Applications:
Product testing of Height Adjustable Table Control System
The test adopts the fully automatic test system independently developed by Jingshi, and the test tool can make a comprehensive evaluation of the power supply and control part of the control board. The test system can detect the following contents of the control board:
1. Whether each output of the power supply is normal
2. Whether there are any problems of the main power supply, with load, overload, over temperature, and short circuit
3. Whether the hardware sensors of each part of the control board are normal
4. The control board can be initialized with table legs, moving them up and down, etc.
When there is any anomaly during the automatic test, the system can promptly ring through the buzzer as quickly as possible.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
If you have any questions about Height Adjustable Table Control System, don’t hesitate to contact us.
