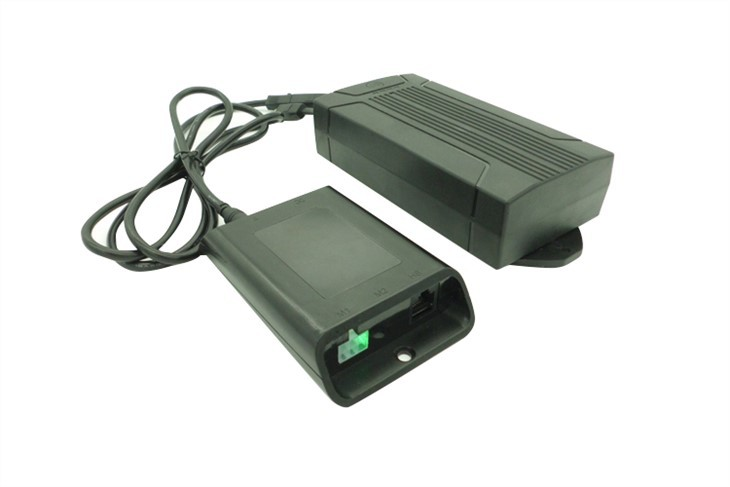

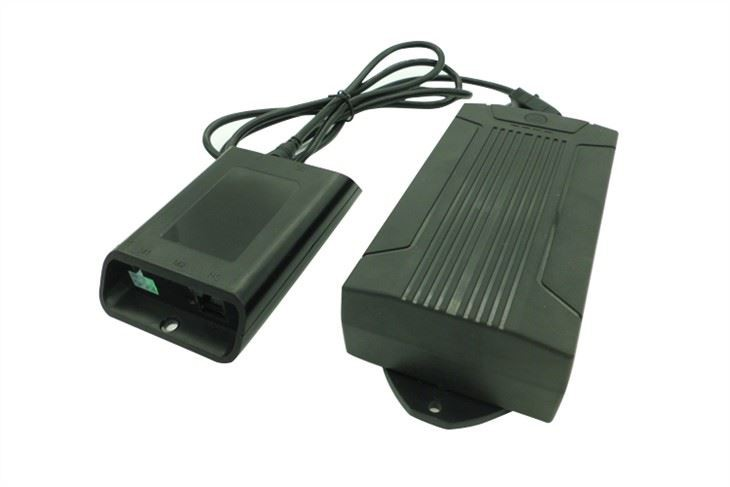

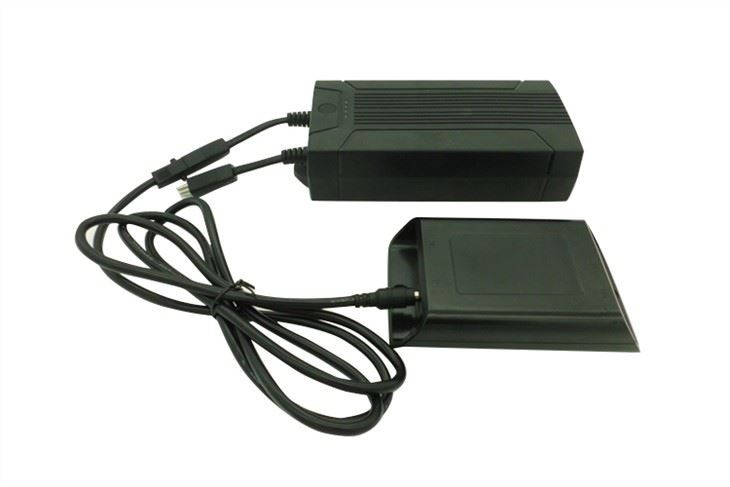

Basic property of Industrial Sit Stand Desk Control Box
Input: 24-36V
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Battery pack:
1. Output parameters: 29V 2.2A
2. Maximum output parameter: 29V 5.5A
3. Enter the charging parameters: 29V 1.8A
4. Maximum charging parameters: 29V 0.5A
5. Battery capacity; 2200MAH
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Bluetooth | Support | Support | Support |
Multi-machine parallel | not support | Support up to 16 | not support |
EMC | Pass | Pass | Pass |
modify parameters on PC | Support | Support | Support |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Types of standing desk control box:
Linear drive is a key device that realizes the motion control of smart terminal products. Its principle is to transmit instructions to the mechanical structure through the control system, so that the circular motion of the motor is converted into the linear motion of the push rod, so as to push, pull, and lift heavy objects.
Applications of Industrial Sit Stand Desk Control Box:
In 2019, our control box had secured CE, UL, PSE, SAA, KC, FCC and other certifications, and a number of new hand control systems made their debut. We developed further toward intelligent automation and high efficiency.
In the following 2020, the shipments of company's control box ranked first in China, taking up 40% of market share, with an annual production capacity of 1.2 million units per year and a sales volume of 60 million.
