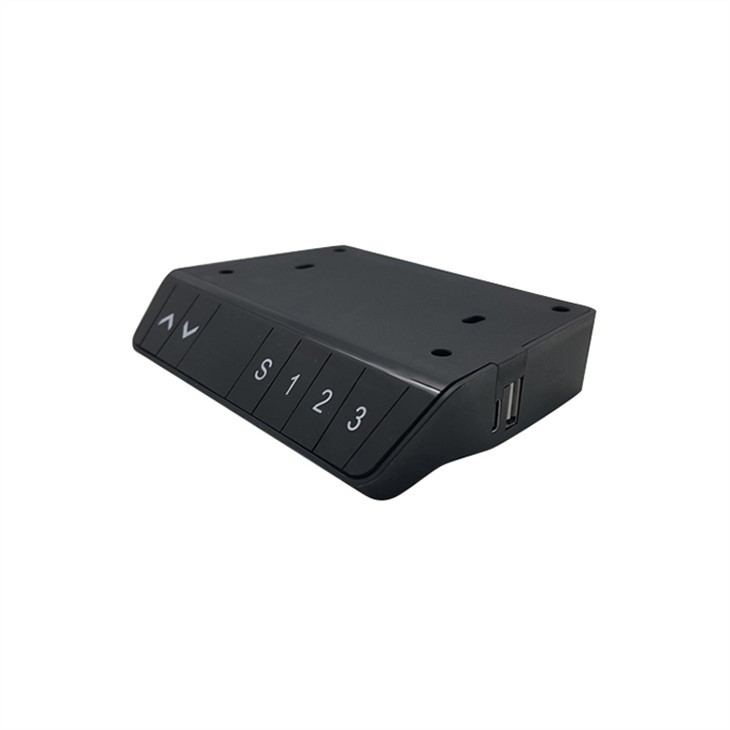

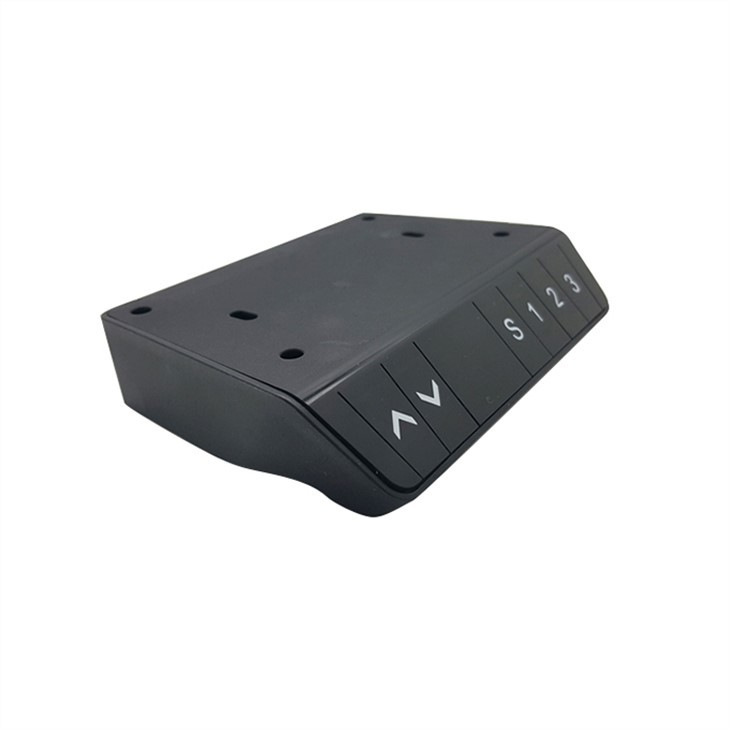

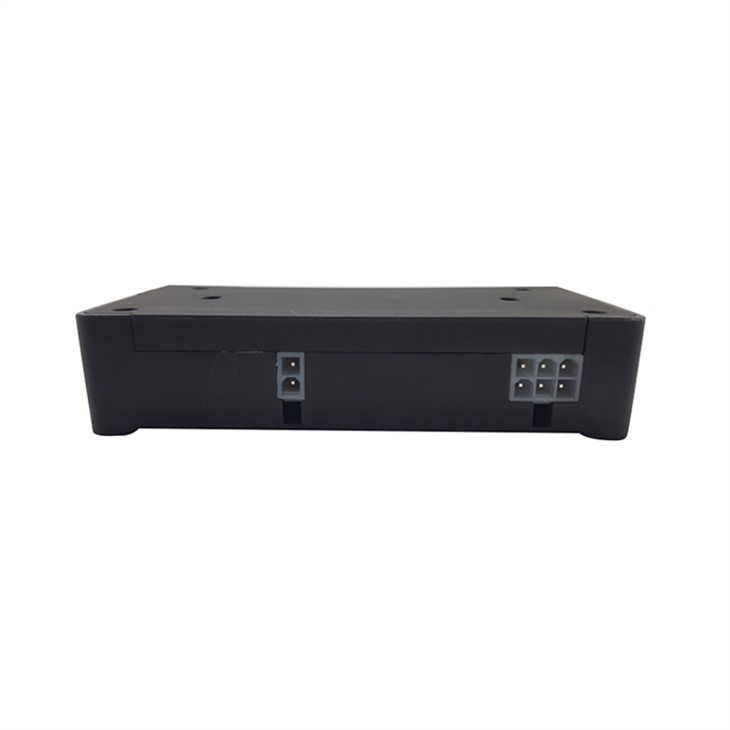

Lifting Desk Control System is the integration of lifting desk control box and hand control, belonging to external power control box. In the front, there are 6 keys which make it can memorize 3 different heights, so it’s very easy to adjust the table to the height suitable for you. At the back, it can connect to motors just as common control boxes do. On the right, there are two ends allowing users to charge up cellphones or something.
Compared to other control boxes, obviously, it has an advantage of combining the functions both control boxes and hand control. This new product is creative and innovative.
Product parameters of Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 130×94×25mm |
Product solutions | MOS scheme |
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Quality management concept
1. Quality embodies the value of companies and win respect of clients. It’s vital for the survival and development of enterprises.
2. We examine all raw materials randomly. Whenever defects happen, the entire batch must be examined. If incidence of defects surpasses 0.2%, the materials will be returned to suppliers and correction is required.
3. All products cannot be released before finishing 2-hour aging test. We definitely don’t allow any products that fail ageing test to enter the market.
4. We disassemble and analyze all the defective products once they are returned from markets. We definitely don’t allow any products that need repair to enter the market.
If you have any questions about Lifting Desk Control System, don’t hesitate to contact us.
