Motorized desk base control box is designed and manufactured by Jingshi Technology company. Jingshi holds the advantage of self-developed technology concerning intelligent motion control and provides one-stop solutions for a wide range of intelligent terminal products that call for drive. Our company offers customers products and services that are good value for money.
product description Control Box
· This control box belongs to 1-motor control box with external power. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Product parameters Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |

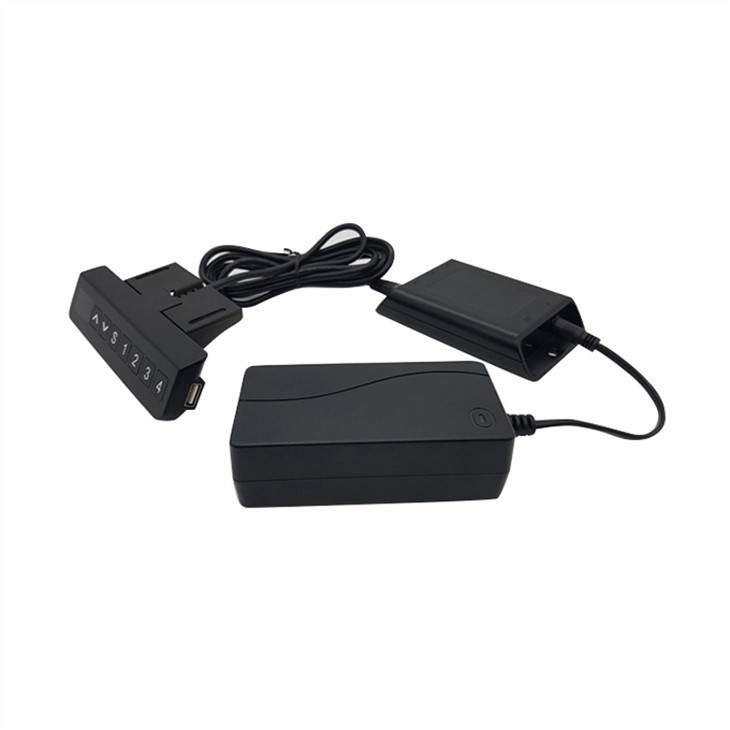

Button Type Standing Desk Hand Controller holds an advantage of 7 buttons, able to memorize 4 different heights. So it’s extremely convenient to adjust the desk to meet your various needs. There is a USB interface on the side enabling users to charge up.
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
Company related introduction: In 2014, Jingshi Technology began to cater to customers and tailor the development of the lifting table control system, serving customers in a point-to-point manner.
In 2017, Hangzhou Jingshi Technology Co., Ltd. was founded.
In 2018, Changxing Jingshi Technology Co., Ltd. was founded.
Based on 6 years of technical experience accumulation, Jingshi Technology has developed generation1, 2, 3 control systems which feature small size, full voltage and high power. The product performance and stability have been consistently praised by customers.
If you have any questions about motorized desk base control box, don’t hesitate to contact us.
