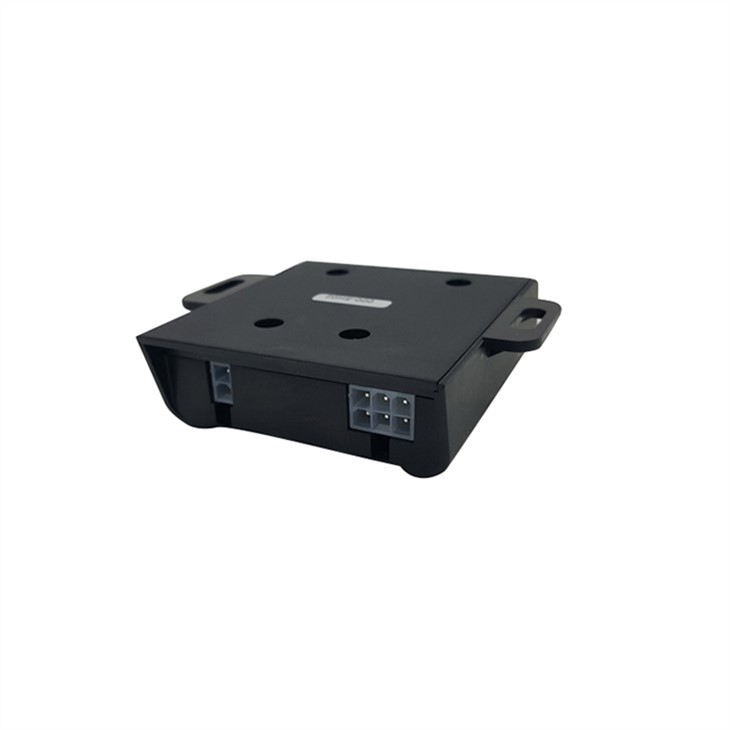

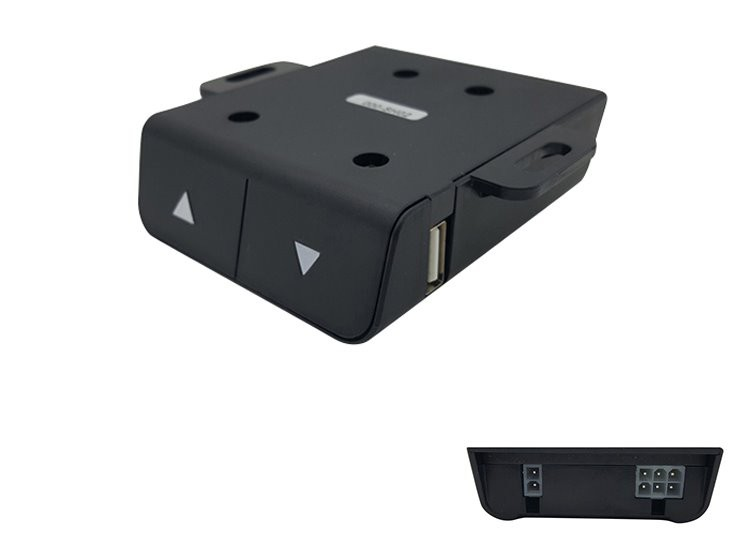

Motorized desk column control box integrates the functions of control box and hand control, belonging to 1-motor control box with external power.
Product parameters of Height Adjustable Desk Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 69×82×25mm |
Product solutions | MOS scheme |

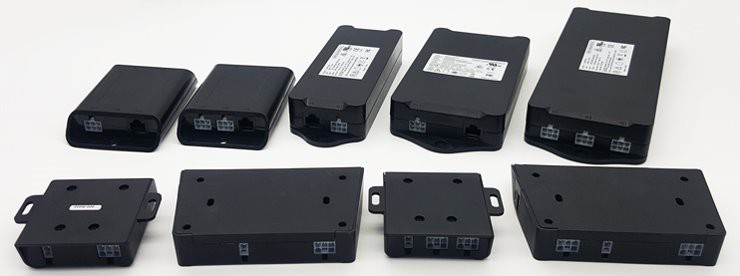

Types of standing desk control box we produce:
Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with 2 sockets on single side and dual-motor controller with 2 sockets on two sides. Products can also be customized according to users’ needs.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
Product testing
Jingshi has developed the fully automatic test system independently, which can be used to do product testing. It can evaluate the power supply and control parts of the control board comprehensively. The following contents can be detected:
1. If the output of the power supply is standard.
2. If there is anything wrong with the main power supply, such as with load, overload, over temperature, and short circuit
3. The control board can initialize desk legs, adjusting the desk upward and downward, etc.The system can quickly alarm through the buzzer, upon it detects any anomaly in the process of the automatic test.
4. If the hardware sensors of each part of the control board are standard.
With self-developed technology of intelligent motion control, Jingshi company provides systematic solutions for a large number of intelligent terminal products that need drive, and provides businesses with cost-effective products and services. If you have any questions about Motorized desk column control box, don’t hesitate to contact us.
