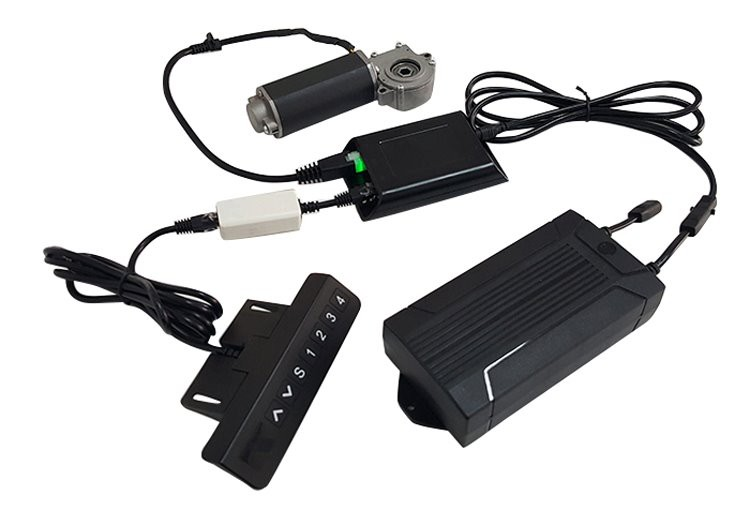

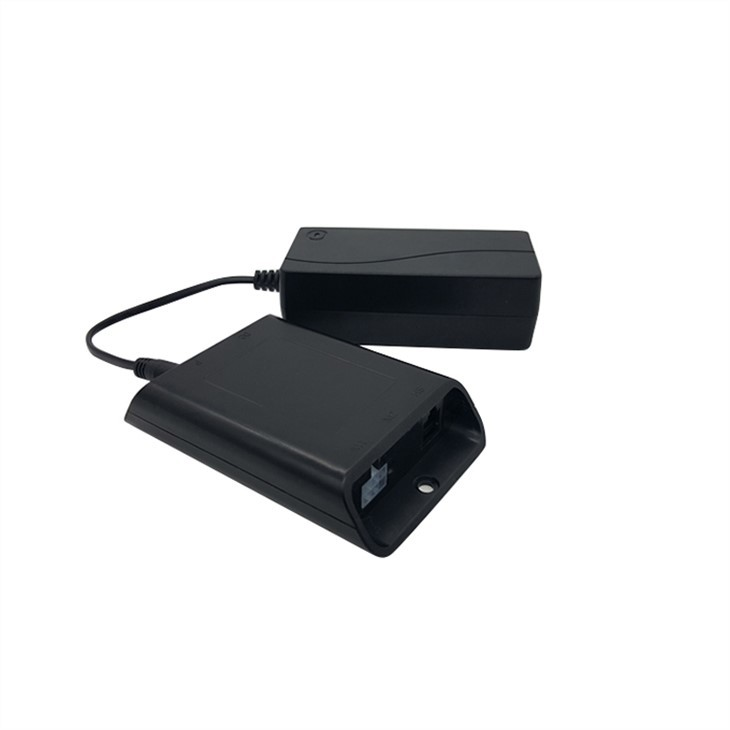

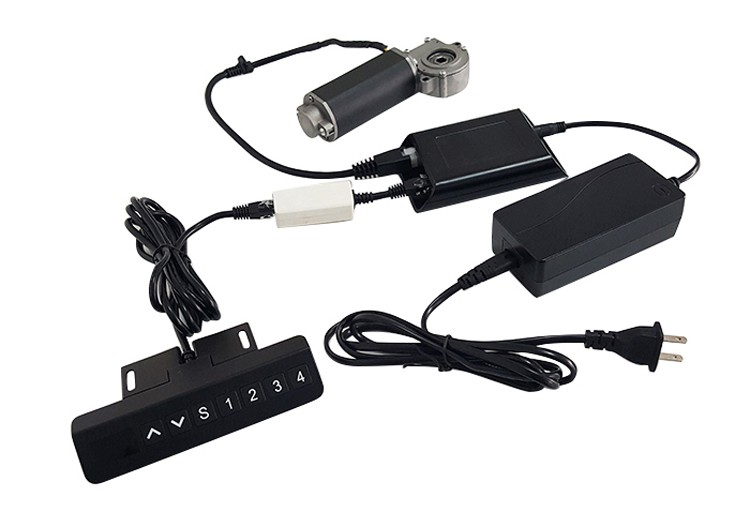

product description of Motorized Desk Frame Control Box

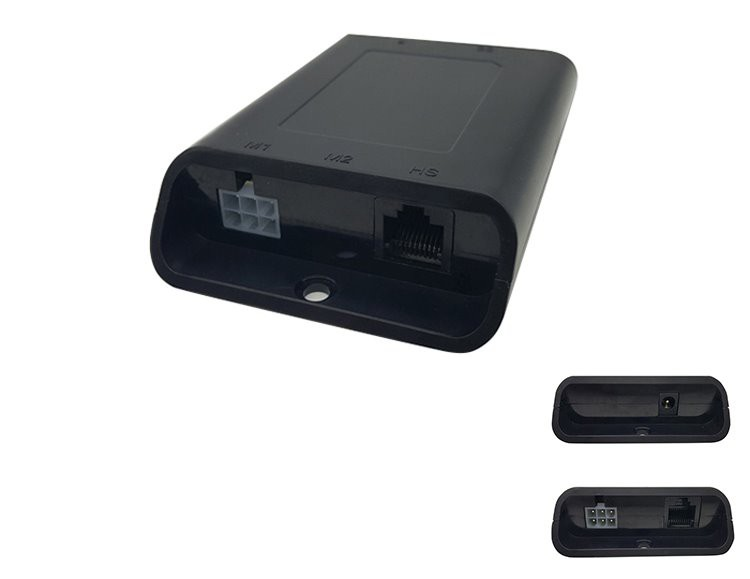

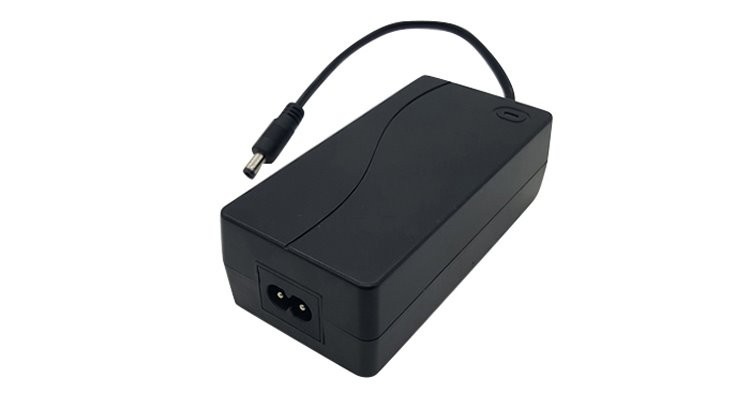

· This control box belongs to 1-motor control box with external power. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Product parameters
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |
Functions of control box
1.Using MOS conductor scheme with gyroscope
2.With reverse brake function, it does not drop under the weight of 200KG
3.5KG high-precision collision protection, no malfunction
4.Protection to keep left and right level, preventing things on desk from falling
5.When No-load, it can run continuously for 20 minutes without protection
6.It supports Bluetooth and can be controlled by apps and wireless computers
7.System parameters can be modified by PC software
8.To update the program of Motorized desk frame control box, it’s not necessary to disassemble the shell, or turn on power
9.Quite convenient to check system problems with 30 error codes

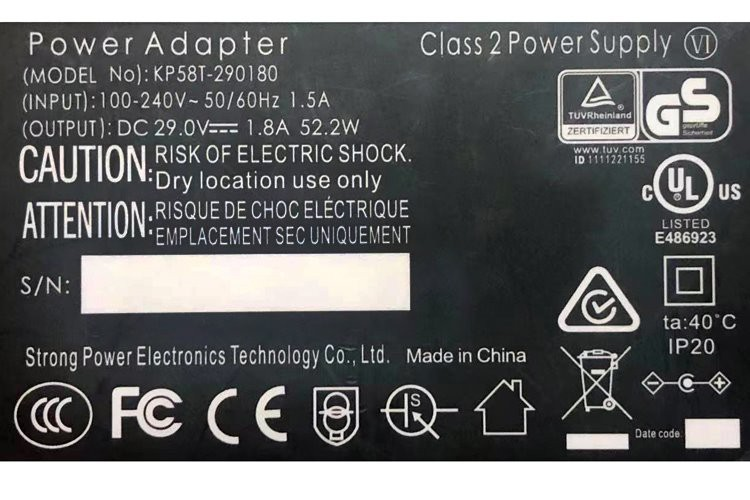

Fixed power supply VS Mobile power supply
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. Hangzhou Jingshi Technology Co., Ltd. was founded in 2017, and Changxing Jingshi Technology Co., Ltd. was founded in 2018.
Our advantages:
1. Strong R&D team
2. Professional processing factories
3. Deep understanding of the industry
4. Sound awareness of service
If you have any questions about Motorized desk frame control box, don’t hesitate to contact us.
