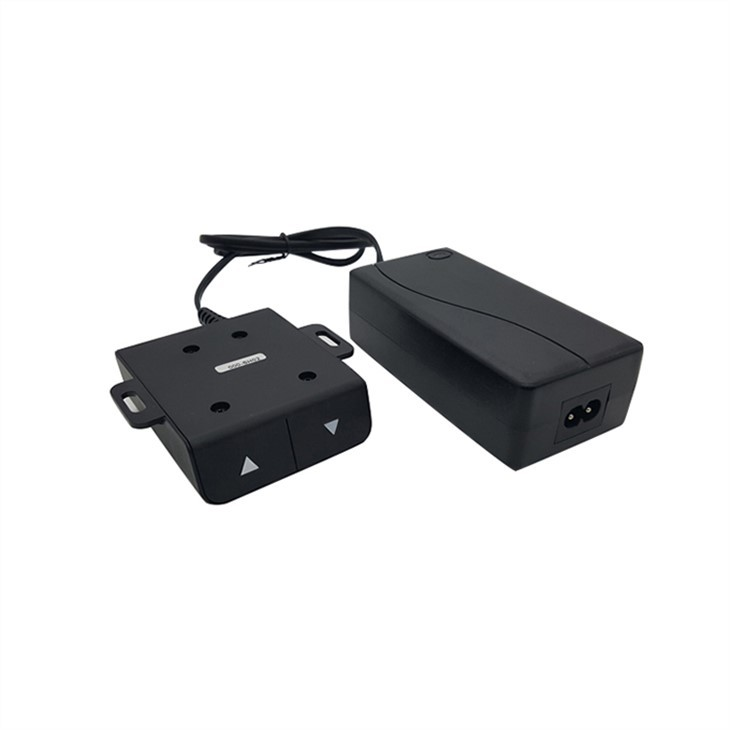

Motorized table base control box integrates the functions of control box and hand control. In the front of Sit Stand Desk Control Box, there are 2 keys that can control the desk rising or falling.
Compared to other control boxes, obviously, it has an advantage of combining the functions both control boxes and hand control. And the size of the Sit Stand Desk Control Box is quite small. This new product is creative and innovative.
Product parameters
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 69×82×25mm |
Product solutions | MOS scheme |
Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box we produce:
Jingshi company makes 1-motor control box, 2-motor control box, 3-motor control box. Up to date, we have innovated 3 generations of control system. Moreover, accessories of control system, such as motors, rechargeable battery packs, Bluetooth, adapters and cables, are all available. Our products can be tailored and support ODM and OEM.
Our customers are mainly distributed in China, North America, Europe and Japan.
In 2018, 27,500 sets of products flowed into the US market and 22,500 sets of products flowed into the European market.
In 2019, 154,000 sets of products flowed into the US market and 126,000 sets of products flowed into the European market.
In 2020, 401,500 sets of products flowed into the US market and 328,500 sets of products flowed into the European market.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
If you have any questions about Motorized table base control box, don’t hesitate to contact us.
