product description of Motorized TV mount control box
· This control box belongs to 1-motor control box with external power. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Functions of Control box
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 150KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
Features
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Overload protection: avoid overload operation by limiting the current to a specific value
Product parameters of Motorized TV mount control box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |
Instructions
Duty cycle: continuous work for up to 2 minutes within 20 minutes
Use environment: indoor

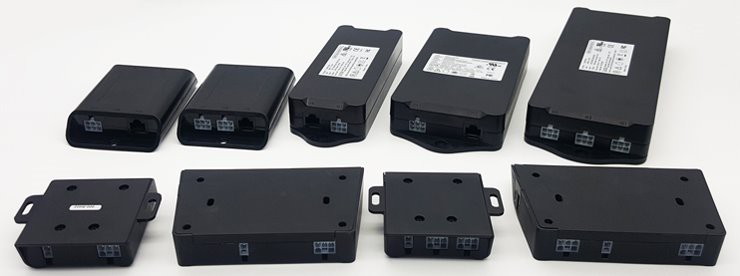

Types of standing desk control box we produce:

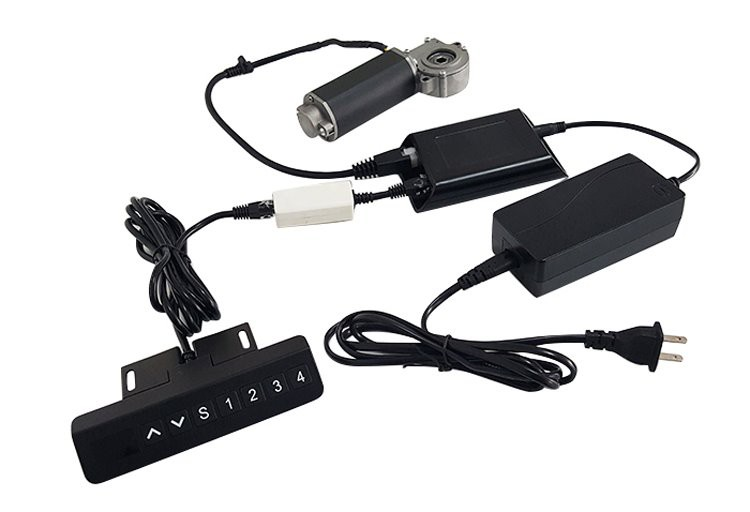

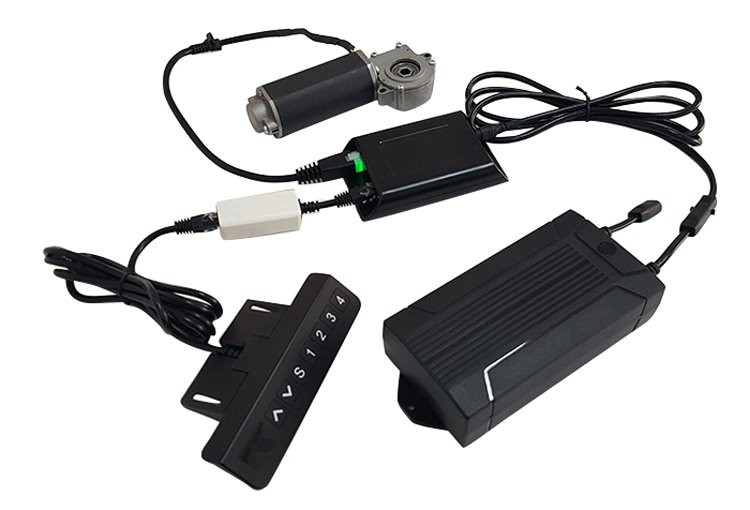

Using adaptor VS using battery bank
Applications:
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
Unknown application areas:
The linear drive system can be customized and developed according to customer requirements.
Product testing of Motorized TV mount control box
The test adopts the fully automatic test system independently developed by Jingshi, and the test tool can make a comprehensive evaluation of the power supply and control part of the control board. The test system can detect the following contents of the control board:
1. Whether each output of the power supply is normal
2. Whether there are any problems of the main power supply, with load, overload, over temperature, and short circuit
3. Whether the hardware sensors of each part of the control board are normal
4. The control board can be initialized with table legs, moving them up and down, etc.
When there is any anomaly during the automatic test, the system can promptly ring through the buzzer as quickly as possible.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
If you have any questions about Motorized TV mount control box, don’t hesitate to contact us.
