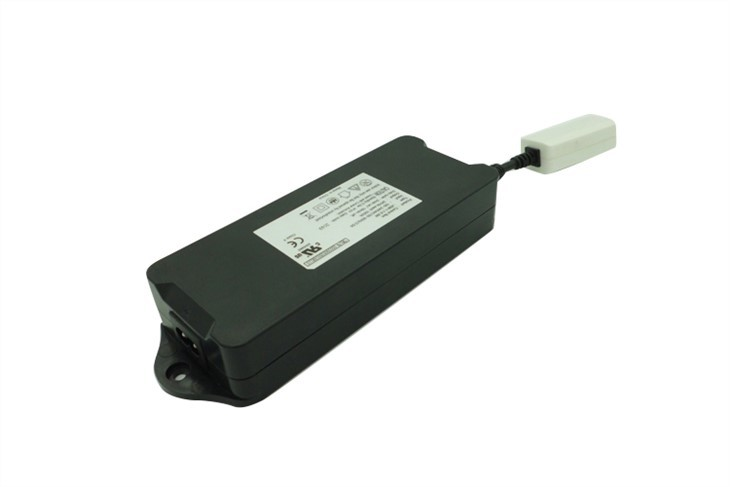

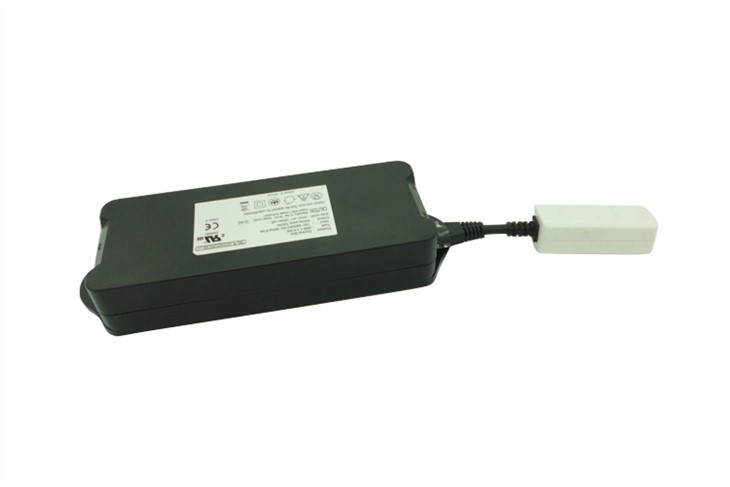

Sit And Stand Office Desk Control Box

5 0 Reviews

Type: JSM-1.1-0.3W Input: 100-240V 50/60Hz, 2.5A Output: 24Vdc, each 100VA Maximum power: 150W Standby power consumption: <0.3W Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc. MOQ=1000 PCS Sit And Stand Office Desk Control Box belongs to 1-motor control box with internal power supply. It features small size, full voltage and high power. The Bluetooth enables users to control sit stand desks on cellphone.

Quantity:




Inquire Add to Basket

Product Description

Product Introduction

Product description of Sit And Stand Office Desk Control Box

· JSM-1.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables

· Equipped with a bounce back function to ensure the safe operation of the lift table

· With slow start and slow stop functions

· 0.3W ultra-low standby power consumption

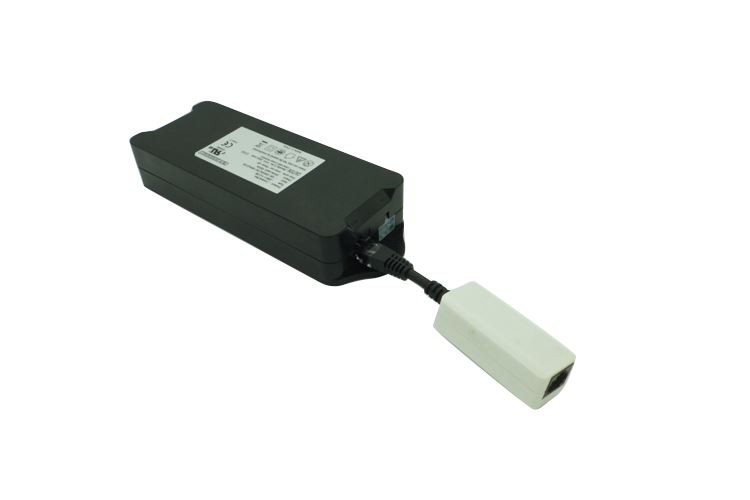

Sit And Stand Office Desk Control Box 6 wholesale lifting desk control box.jpg

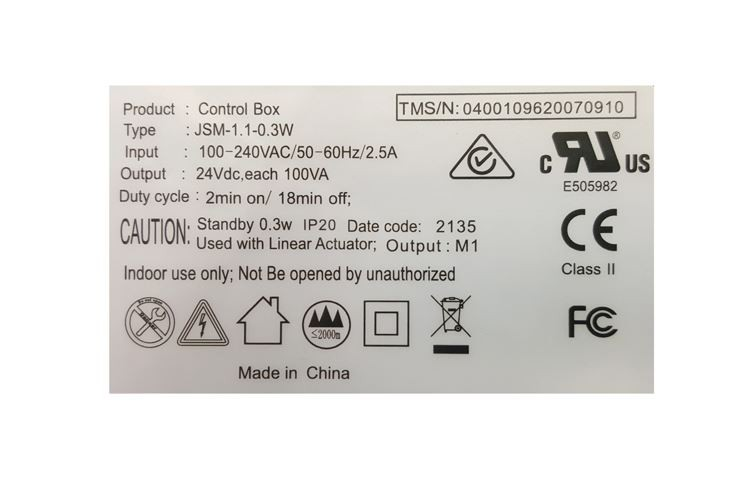

control box label.jpg

Functions of Control Box

1. Using MOS conductor scheme with gyroscope

2. Quite convenient to check system problems with 30 error codes

3. 5KG high-precision collision protection, no malfunction

4. Protection to keep left and right level, preventing things on desk from falling

5. When No-load, it can run continuously for 20 minutes without protection

6. System parameters can be modified by PC software

Comparison of three generations of control boxes made by JS Technology

products	1^st generation	2^ndgeneration	3^rd generation
Number of motors	1,2,3	1,2,3	1,2
Anti-pinch method	Current/torsion sensor	Current + patented sensor	Current + patented sensor
Bluetooth	Support	Support	Support
Multi-machine parallel	not support	Support up to 16	not support
EMC	Pass	Pass	Pass
modify parameters on PC	Support	Support	Support

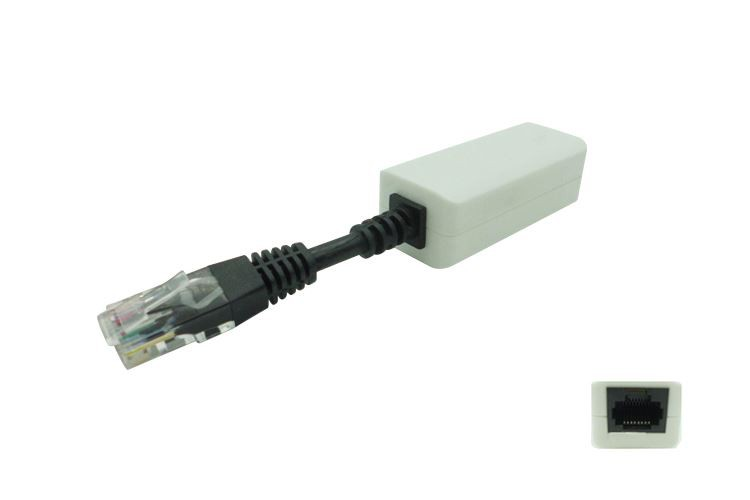

cheap standing desk Bluetooth.jpg

Types of standing desk control box we produce:

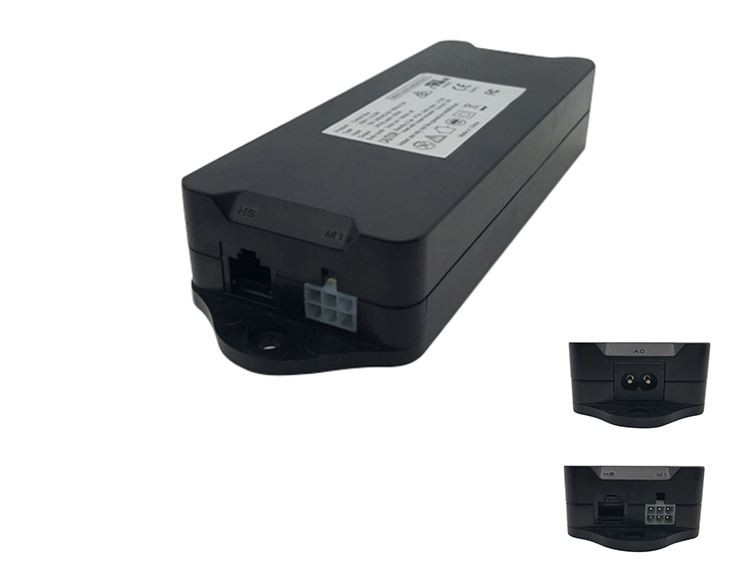

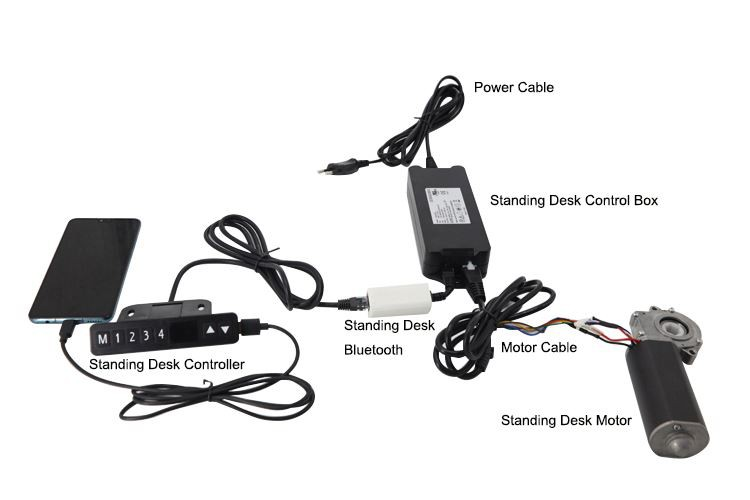

wholesale standing desk control boxes.jpg lifting desk control supplier.jpg

Applications

Our products are applicable to adjustable desks, massage chairs, massage sofas, electric medical beds, electric leisure beds, smart home and voice recognition.

applications of standing desk control box.jpg

Company related introduction:

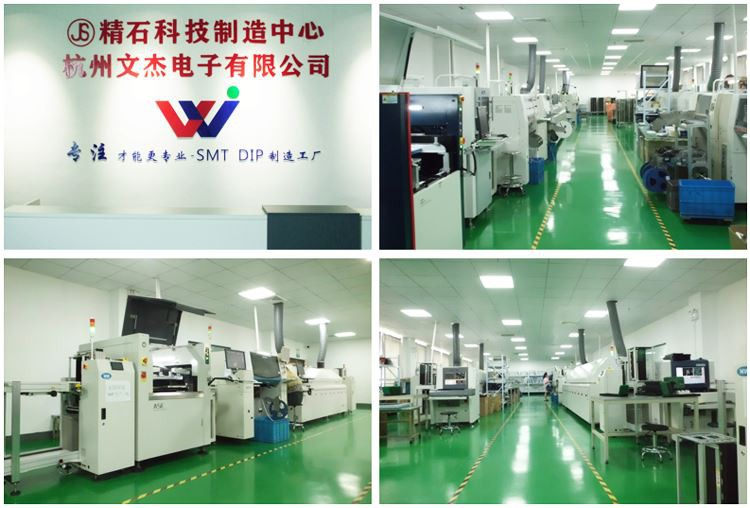

sit stand desk control box manufacturers.png

Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. Hangzhou Jingshi Technology Co., Ltd. was founded in 2017, and Changxing Jingshi Technology Co., Ltd. was founded in 2018. Jingshi Technology company manufactures Sit And Stand Office Desk Control Box. Contact us for more information about it.
