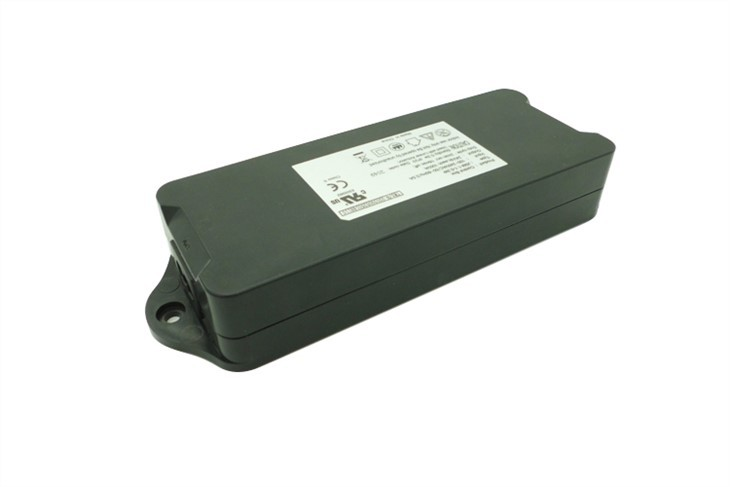

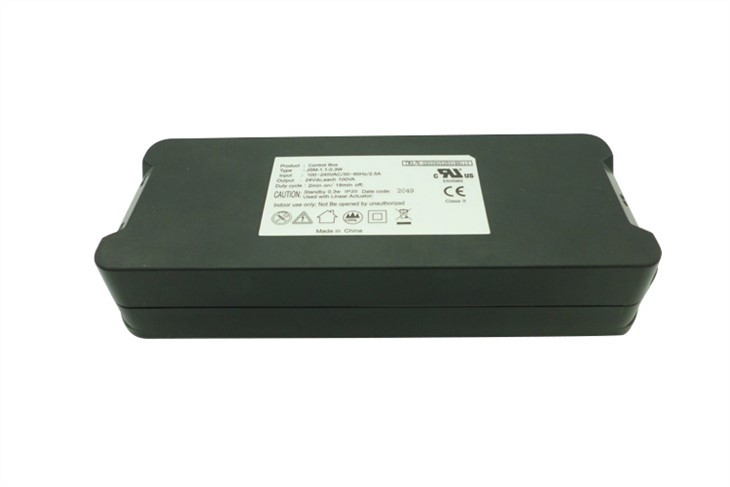

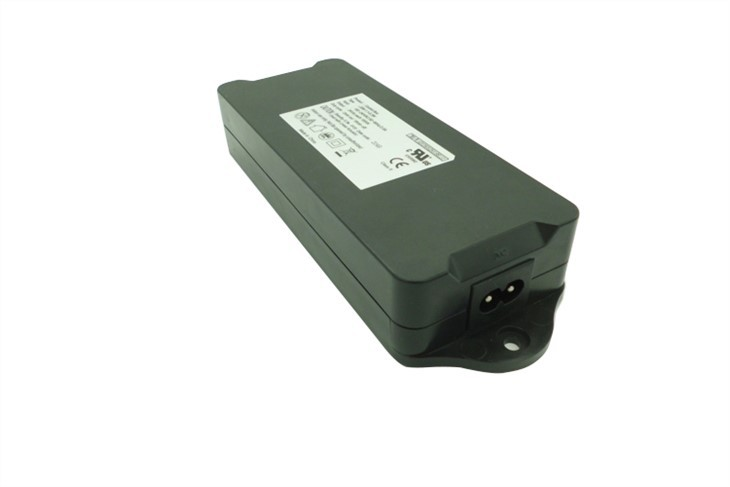

Sit And Stand Workstation Control Box

5 0 Reviews
Type: JSM-1.1-0.3W
Input: 100-240V 50/60Hz, 2.5A
Output: 24Vdc, each 100VA
Maximum power: 150W
MOQ=1000 PCS
Sit And Stand Workstation Control Box belongs to 1-motor control box with internal power supply. It features small size, full voltage and high power. With self-developed technology of intelligent motion control, Changxing JS control box factory produces control boxes and hand controls. Standby power consumption:<0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
MOQ:1000PCS
Quantity:
Product Introduction

Sit And Stand Workstation Control Box belongs to 1-motor control box with internal power supply. It features small size, full voltage and high power. With self-developed technology of intelligent motion control, Changxing JS control box factory produces control boxes and hand controls.

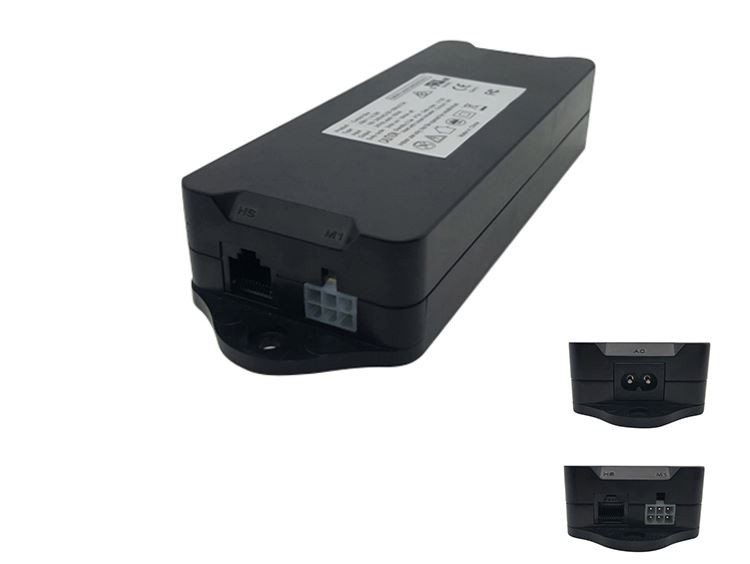

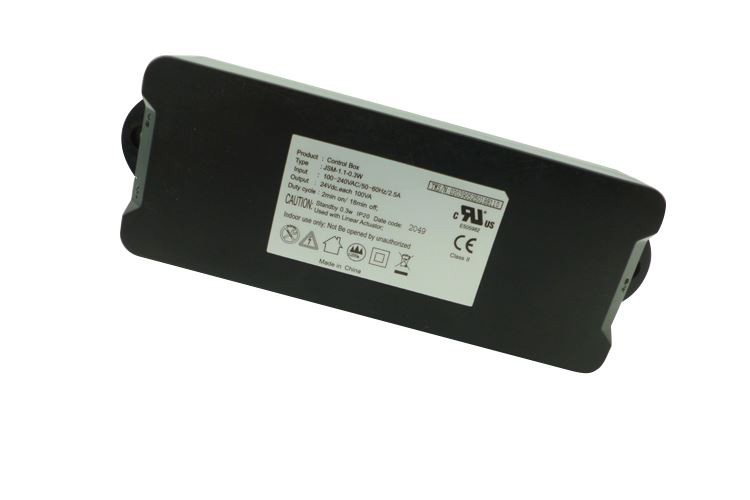

Sit And Stand Workstation Control Box 5wholesale lifting desk control box.jpg

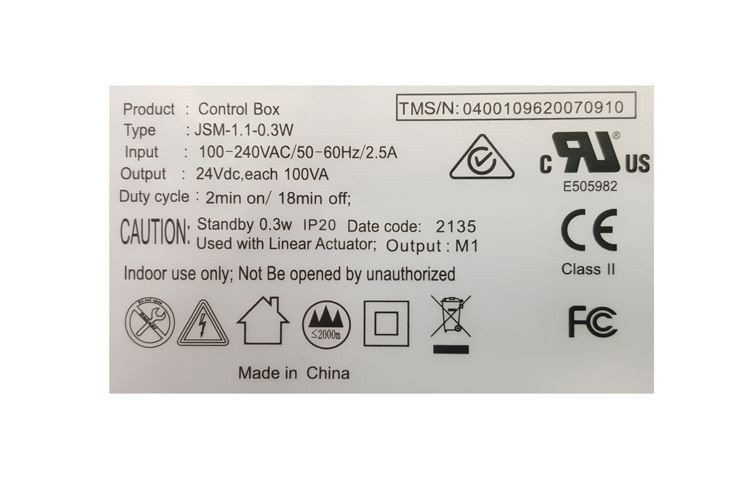

Basic property of Control Box

control box label.jpg

Comparison of three generations of control boxes made by JS Technology

products

1st generation

2nd generation

3rd generation

Anti-pinch method

Current/torsion sensor

Current + patented sensor

Current + patented sensor

Bluetooth

Support

Support

Support

Multi-machine parallel

not support

Support up to 16

not support

EMC

Pass

Pass

Pass

modify parameters on PC

Support

Support

Support

protection

Motor open circuit,

 Hall fault,

motor short circuit,

low voltage,

illegal power-off,

illegal plugging and unplugging,

anti-pinch

Motor open circuit, Hall fault,

motor short circuit, low voltage,

illegal power-off, illegal plugging and unplugging,

desktop tilt angle being too large,

top and bottom anti-pinch

Motor open circuit, Hall fault,

motor short circuit, low voltage,

illegal power-off, illegal plugging and unplugging,

desktop tilt angle being too large,

top and bottom anti-pinch

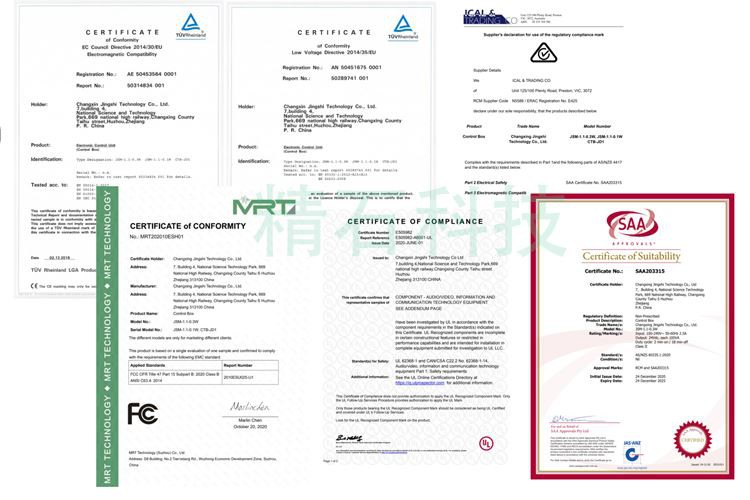

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

China standing desk control box certificates 1.jpg

control box manufacturers certificates

Types of standing desk control box:

wholesale standing desk control boxes.jpg

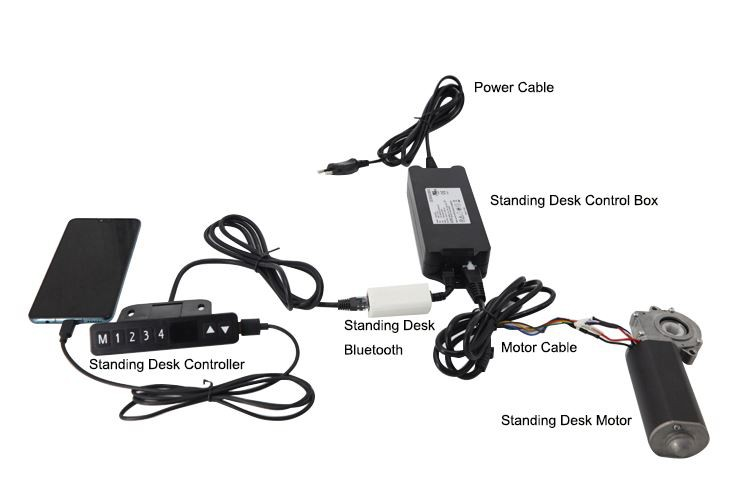

lifting desk control supplier.jpg

Jingshi has independently developed the fully automatic test system of Sit And Stand Workstation Control Box. It can evaluate the power supply and control parts of the control board comprehensively. The following contents can be detected :

1. If the output of the power supply is standard.

2.If the hardware sensors of each part of the control board are standard.

3.  If there is anything wrong with the main power supply, such as with load, overload, over temperature, and short circuit

4. The control board can initialize desk legs, adjusting the desk upward and downward, etc.The system can quickly alarm through the buzzer, upon it detects any anomaly in the process of the automatic test.

Applications

applications of standing desk control box.jpg

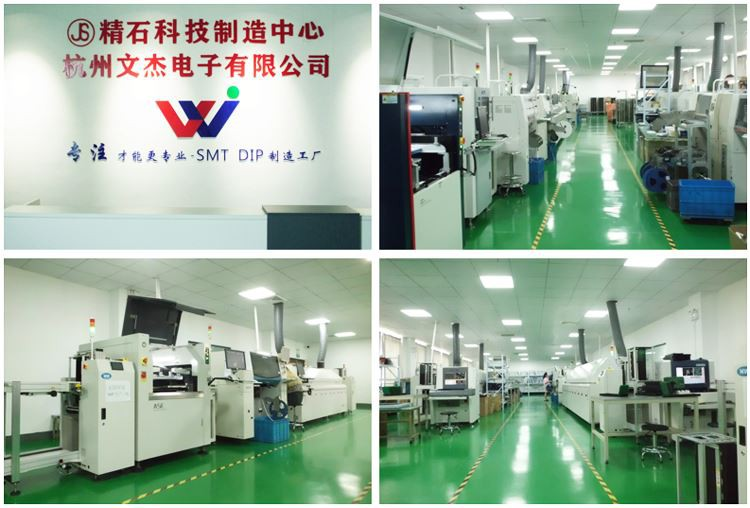

Photos of factory:

sit stand desk control box manufacturers.png

FAQ

1. Who are your clients?

We specialize in manufacturing control boxes as well as hand controls. In terms of new clients, once we receive the electric lifting columns, we can measure the parameter and check the property of it. Only then can we program the control box and offer the samples effective for you. We serve companies and factories whose products need drive.

2. How many agents or wholesalers does the company currently have overseas?

Some areas can be opened, welcome to join us.

If you have any questions about Sit And Stand Workstation Control Box, don’t hesitate to contact us.
