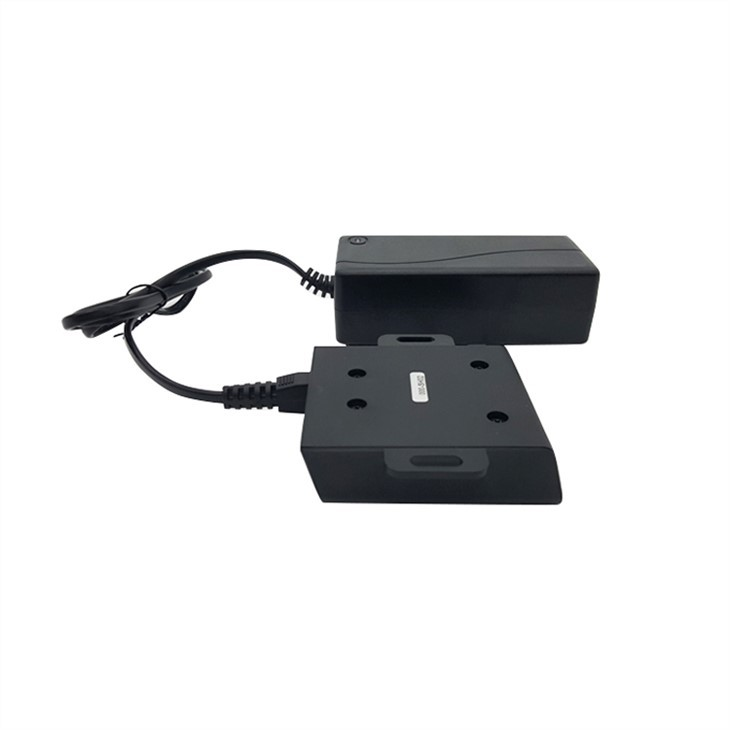

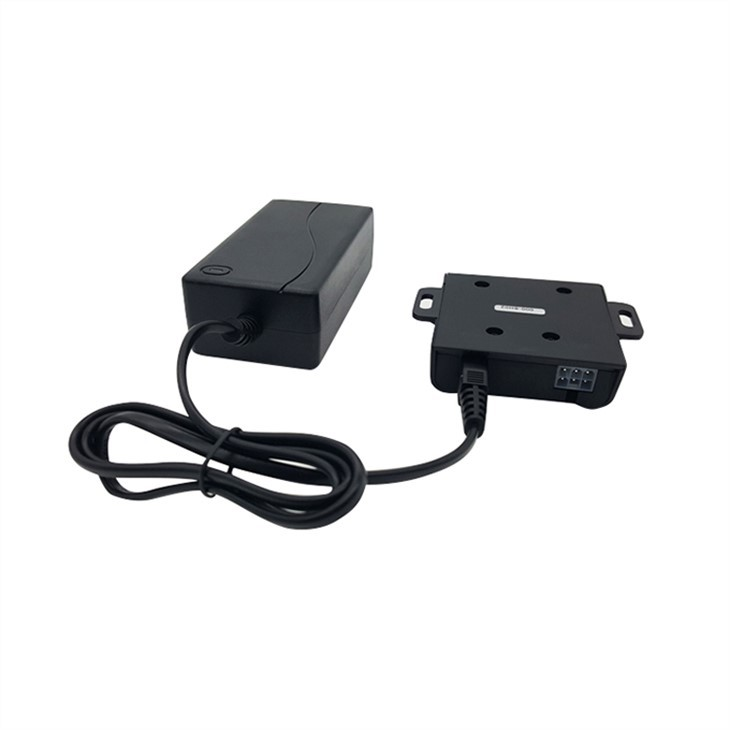

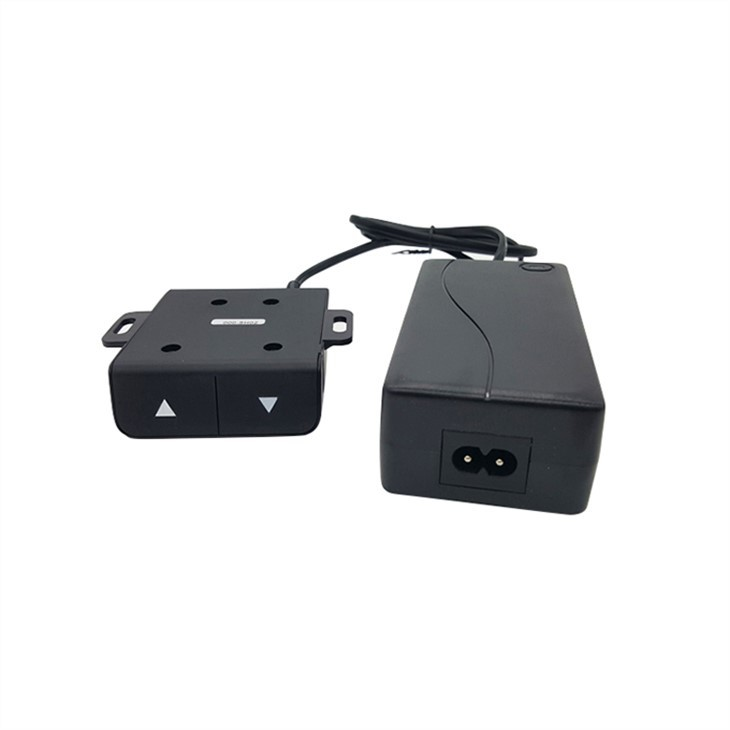

Sit Stand Desk Control System integrates the functions of control box and hand control, belonging to external power control box. In the front of Sit Stand Desk Control Box, there are 2 keys that can control the desk rising or falling. At the back, It can directly connect to motors just as common control boxes do. On the right, there is a USB end enabling users to charge up cellphones or something.
Compared to other control boxes, obviously, it has an advantage of combining the functions both control boxes and hand control. And the size of the Sit Stand Desk Control Box is quite small. This new product is creative and innovative.
Product parameters
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 69×82×25mm |
Product solutions | MOS scheme |
Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box:
Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with 2 sockets on single side and dual-motor controller with 2 sockets on two sides. Products can also be customized according to users’ needs.
Besides, Jingshi company produces matching hand controls and accessories, including motors, rechargeable battery packs, Bluetooth, adapters and cables.
China, North America, Europe and Japan are our major markets.
In 2018, we sold 22,500 sets of products to Europe and 27,500 sets to US.
In 2019, we sold 126,000 sets of products to Europe and 154,000 sets to US.
In 2020, we sold 328,500 sets of products to Europe and 401,500 sets to US.
Despite many obstacles, Jingshi Technology takes a good momentum of growth and continues to provide excellent products and service for our clients from home and abroad.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
If you have any questions about Sit Stand Desk Control System, don’t hesitate to contact us.
