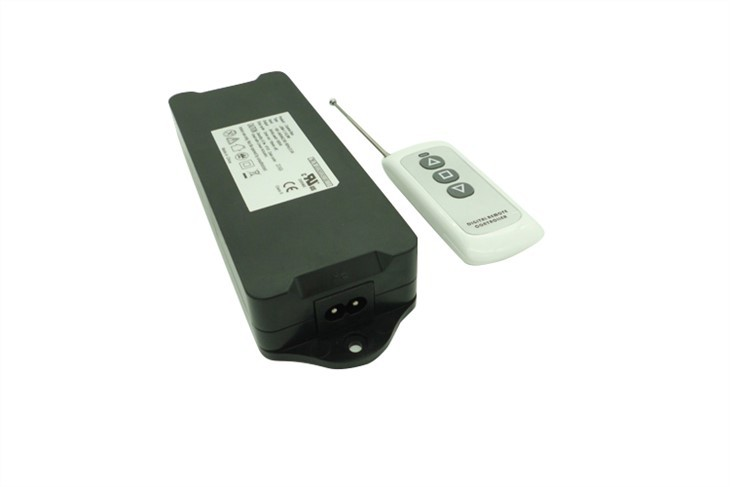

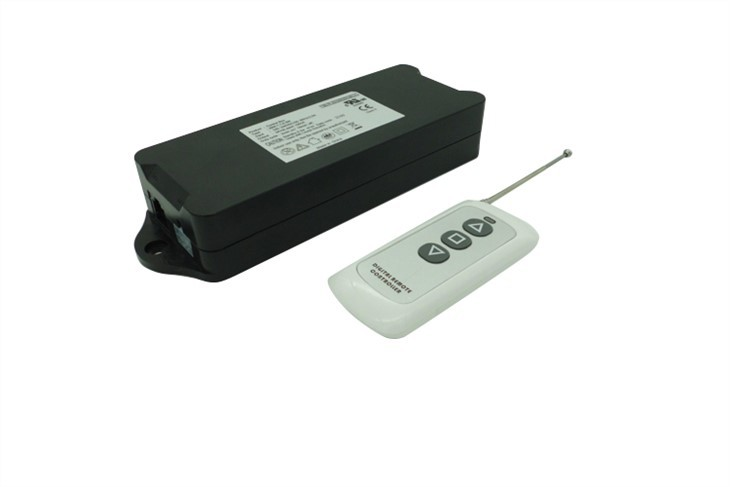

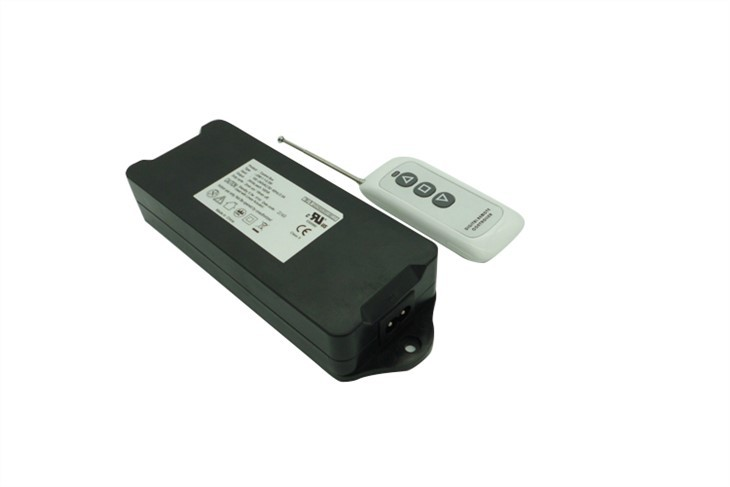

Sit Stand Desks Home Office Controller

5 0 Reviews

Type: JSM-1.1-0.3W Input: 100-240V 50/60Hz, 2.5A Output: 24Vdc, each 100VA Maximum power: 150W Standby power consumption: <0.3W Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc. MOQ:1000PCS

Quantity:




Inquire Add to Basket

Product Description

Product Introduction

Sit Stand Desks Home Office Controller 3 single Combination

Basic property of Sit Stand Desks Home Office Controller

Selling points of Sit Stand Desks Home Office Controller

1. Infineon chips imported from Germany

2. The running distance is accurate to 1mm

3. 100% simultaneity, 10,000 operations, 0 error on 2 columns

4. Low standby power consumption, less than 0.3W

5. Adopt the cutting-edge MOS conductor scheme

6. Able to support the speed of 60mm per second

7. Low noise

Comparison of three generations of control boxes made by JS Technology

products	1^st generation	2^ndgeneration	3^rd generation
Drive way	Mos+ Relay	Mos	Mos
EMC	Pass	Pass	Pass
Battery interface	Have	No	Have
modify parameters on PC	Support	Support	Support
Desktop auto balance	No	Have	Have
protection	Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch	Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch	Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

certification 1 remote 2

Wireless remote control: There are 3 buttons, up, down and stop. The wireless remote control can remotely control the lifting desk within 200m of the receiver. Only a battery is needed for power supply.

Types of standing desk control box:

all kinds

Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. Besides, Jingshi company produces matching hand controls and accessories, including rechargeable battery packs, bluetooth, adapters and cables. Our control boxes support Bluetooth, voice reorganization, remote control and mobile battery pack. Besides, the series function or parallel function can be added to control boxes.

illustration single
