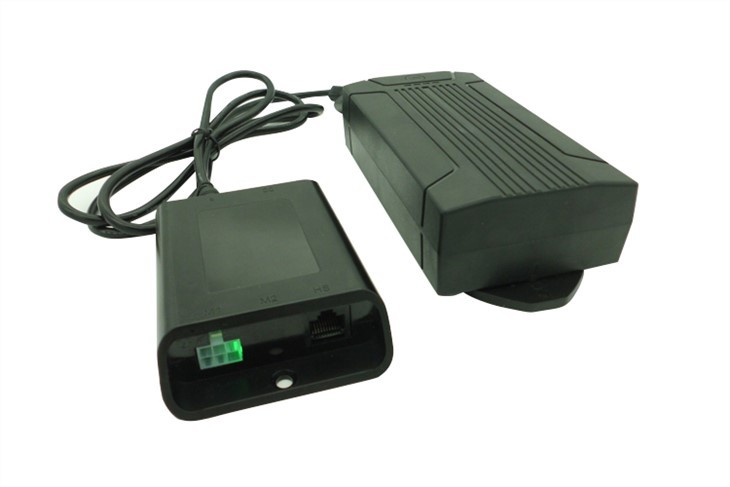

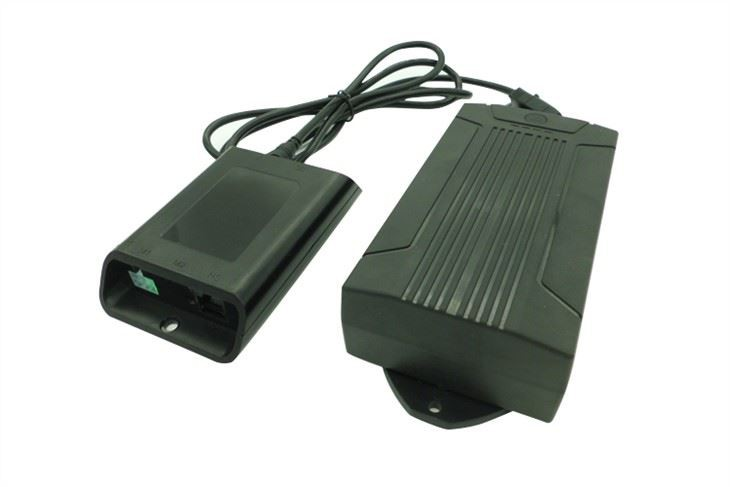

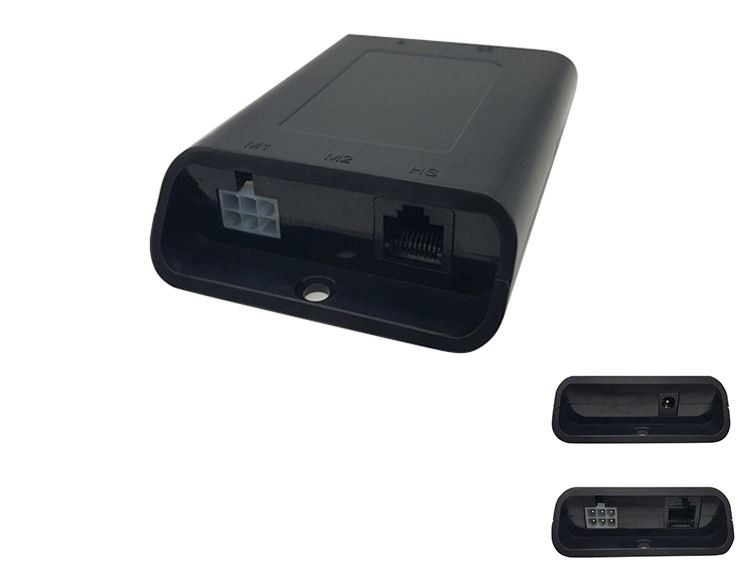

JS makes Sit Stand Mobile Workstation Control Box. With self-developed technology of intelligent motion control, Jingshi company provides systematic solutions for a large number of intelligent terminal products that need drive, and provides businesses with cost-effective products and services.
Basic property
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |

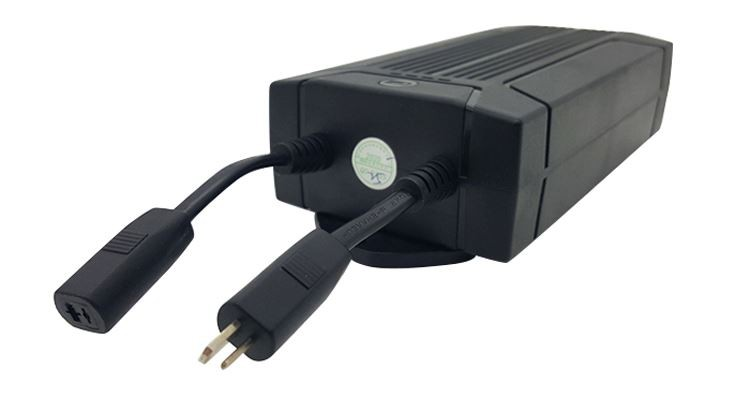

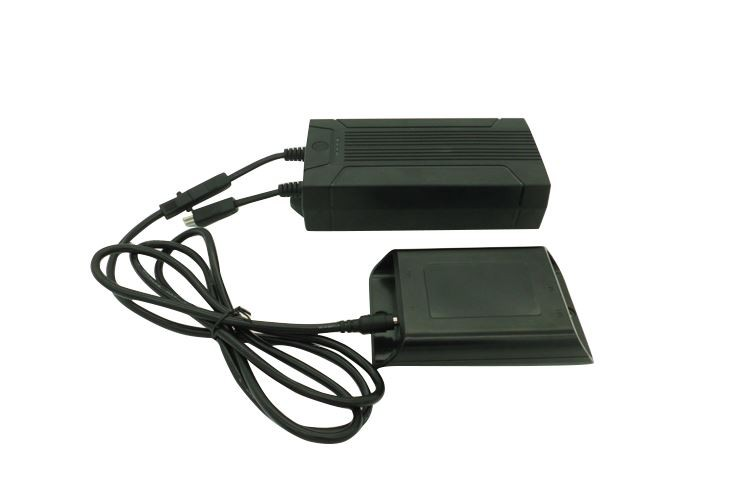

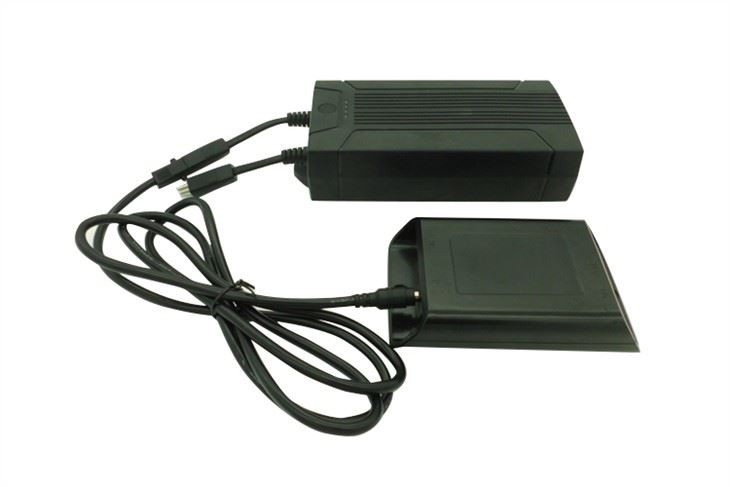

Battery pack:
1. Output parameters: 29V 2.2A
2. Maximum output parameter: 29V 5.5A
3. Enter the charging parameters: 29V 1.8A
4. Maximum charging parameters: 29V 0.5A
5. Battery capacity; 2200MAH

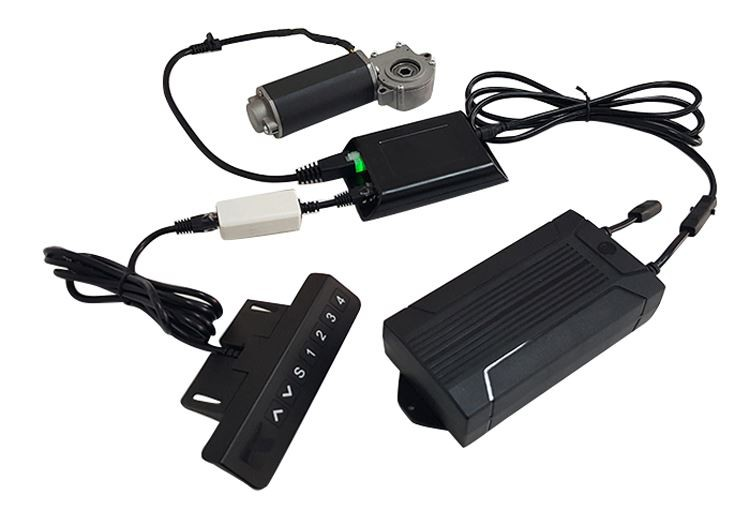

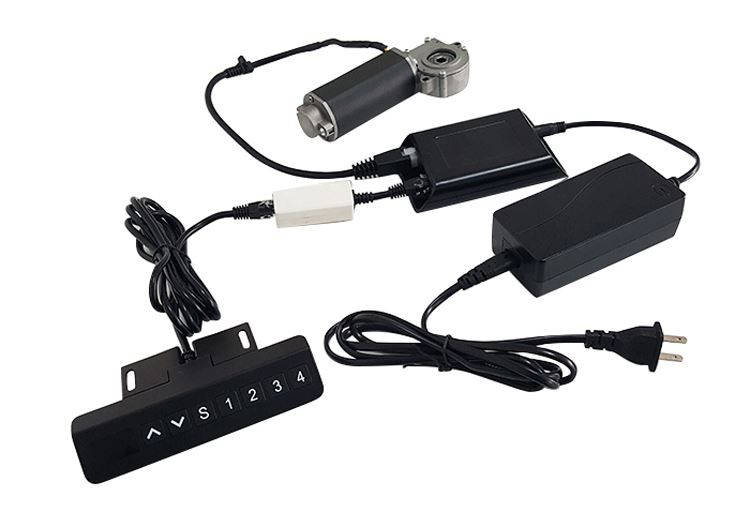

Types of standing desk control box we produce:
According to pictures above, we can see some difference between using mains and battery pack. First, adopting battery pack enables users to move around instead of being fixed in one place; second, standing desk adapters are not needed any more using battery pack. However, the battery pack needs an adapter when being charged.
Applications
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.

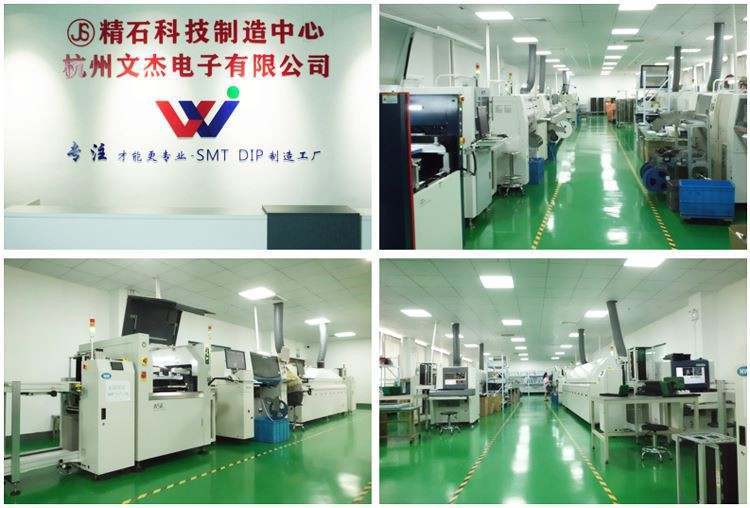

Company related introduction:
In 2014, Jingshi Technology began to cater to customers and tailor the development of the lifting table control system, serving customers in a point-to-point manner.
In 2017, Hangzhou Jingshi Technology Co., Ltd. was founded.
In 2018, Changxing Jingshi Technology Co., Ltd. was founded.
Based on 4 years of technical experience accumulation, Jingshi Technology has developed 1, 2, 3 control systems which feature small size, full voltage and high power. The product performance and stability have been consistently praised by customers. In the future, we will continue to invest a large amount of fund in the research and development of new products in the field of lifting tables.
If you have any questions about Sit Stand Mobile Workstation Control Box, don’t hesitate to contact us.
