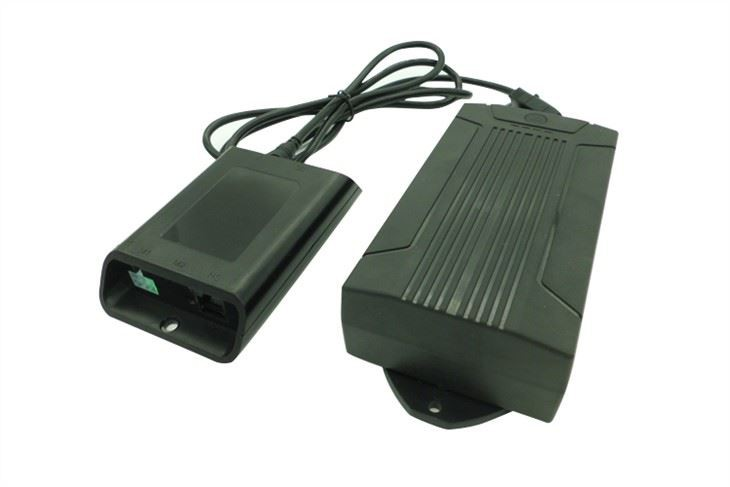

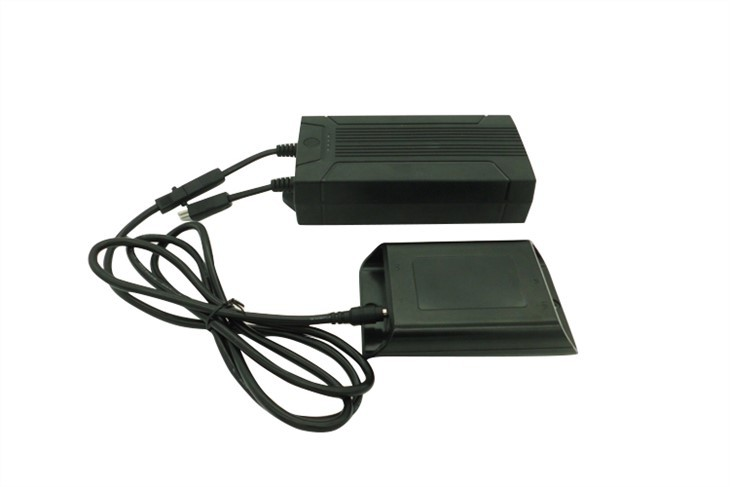

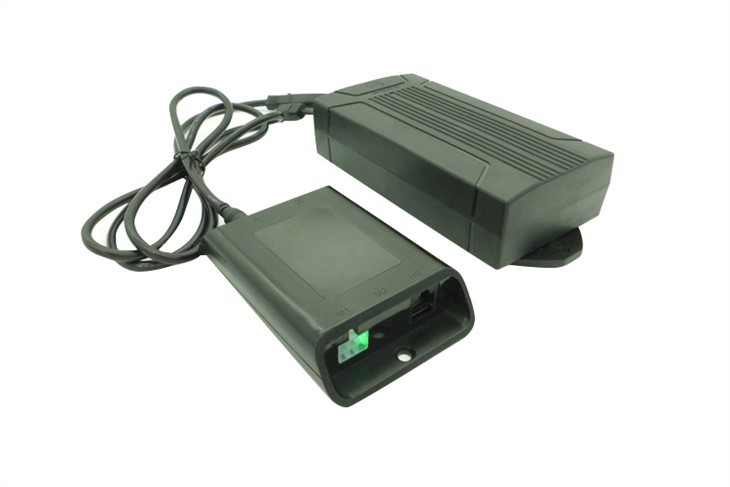

Standing Desk Workstation Control Box belongs to 1-motor control box with external power supply. Using power bank enables you to move your desk at your will.
Basic property of Control Box
Input: 24-36V
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Battery pack:
1. Output parameters: 29V 2.2A
2. Maximum output parameter: 29V 5.5A
3. Enter the charging parameters: 29V 1.8A
4. Maximum charging parameters: 29V 0.5A
5. Battery capacity; 2200MAH
When connected to the adapter, the battery pack can be charged. It can be fully charged in about 5 hours. When in use, connect the battery pack and the control box (external power) with a wire so that the battery pack works as a mobile power source to supply power to the control box. Currently, battery packs are mainly used for control boxes (external power).
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection functions of control boxes made by Jingshi Technology
protection functions automatically start when standing desk encounter cases of
motor open circuit, Hall fault,
motor short circuit, low voltage,
illegal power-off, illegal plugging and unplugging,
desktop tilt angle being too large,
top and bottom anti-pinch
Types of standing desk control box:
China, North America, Europe and Japan are our major markets.
In 2018, we sold 22,500 sets of products to Europe and 27,500 sets to US.
In 2019, we sold 126,000 sets of products to Europe and 154,000 sets to US.
In 2020, we sold 328,500 sets of products to Europe and 401,500 sets to US .
Despite many obstacles, Jingshi Technology takes a good momentum of growth and continues to provide excellent products and service for our clients from home and abroad.
Applications:
Photos of factory:
FAQ
Q1. Can I get a sample?
A: Yes, we welcome sample order to test and check its quality and performance.
Q2. What about the lead time?
A:Sample needs 7 days, mass production time needs 35 days.
Q3. Do you have any MOQ limit for control box order?
A: Low MOQ, small orders are available.
If you have any questions about Standing Desk Workstation Control Box, don’t hesitate to contact us.
