Up And Down Desk Control Box

5 0 Reviews
Input: 24-36V Output:12-32V Maximum power: 150W Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor MOQ=1000 PCS Up And Down Desk Control Box belongs to 1-motor control box with external power supply. It needs to work with an adapter.
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

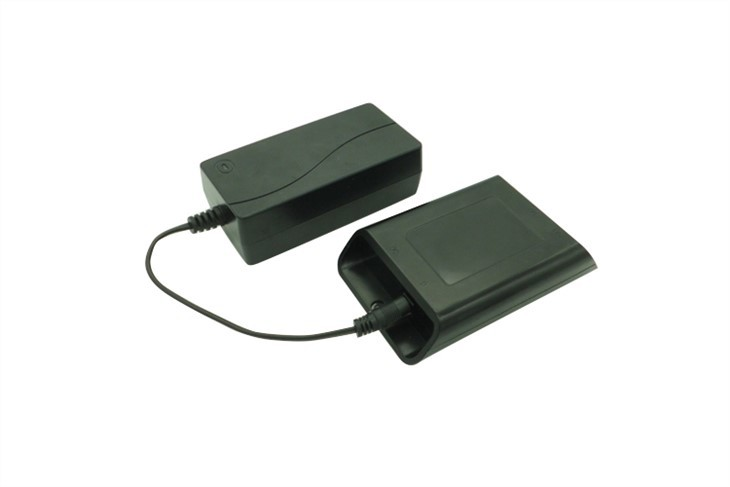

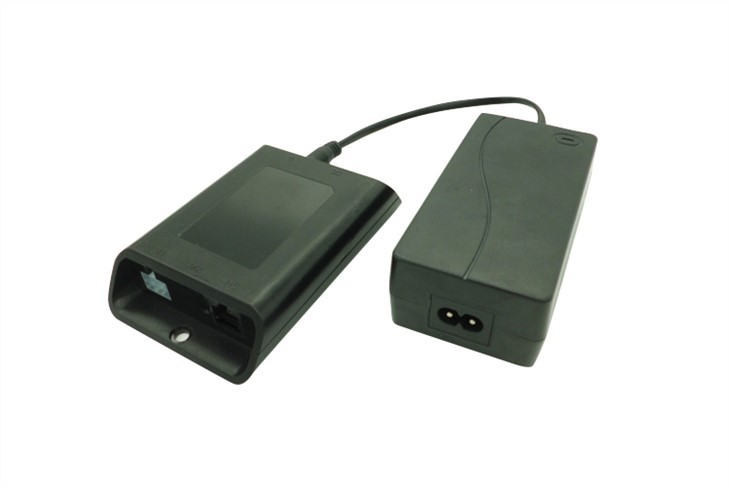

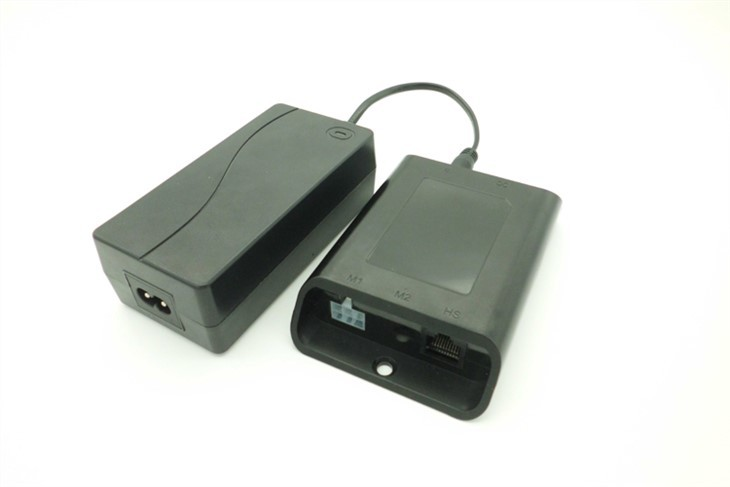

Up And Down Desk Control Box belongs to 1-motor control box with external power supply.

It needs to work with an adapter.

Basic property

Input: 24-36V

Output:12-32V

Maximum power: 150W

Duty cycle: 2min ON/18min OFF

Product scheme: MOS conductor

Up And Down Desk Control Box 2

China control box.jpg

control box adapter 1 factory.jpg

Description of Adapter:

        1. Input parameters: 100-240VAC/50-60HzA

        2. Output parameters: 29V1.8A

        3. Maximum power: 150W

        4. Working mode: 2 Min: 18Min/ ON: OFF

        5. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM

  Product size: 10.5*5.5*3.5cm


Comparison of three generations of control boxes made by JS Technology

products

1st generation

2nd generation

3rd generation

Drive way

Mos+ Relay

Mos

Mos

Number of motors

1,2,3

1,2,3

1,2

Anti-pinch method

Current/torsion sensor

Current + patented sensor

Current + patented sensor

Anti-pinch

detection accuracy

15Kg

5Kg

5Kg

Bluetooth

Support

Support

Support

Height memory

Two keys 0/digital display 4 groups

Two keys 1/digital display 3 groups

Two keys 1/digital display 3 groups

Multi-machine parallel

not support

Support up to 16

not support

Standby

power consumption

0.2W

0.1W

0W



Types of standing desk control box:

 wholesale standing desk control boxes.jpg

Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with 2 sockets on single side and dual-motor controller with 2 sockets on two sides . Products can also be customized according to users’ needs.

Up And Down Desk Control Boxes support Bluetooth, voice reorganization, remote control and mobile battery pack. Besides, the series function or parallel function can be added to control boxes.


cheap electric desk control sysytem.jpg

Applications

applications of standing desk control box.jpg

Photos of factory:

Focus on wholesale and customization of electric lifting desk control box

free design/origin factory/ODM/OEM/

sit stand desk control box manufacturers.png
