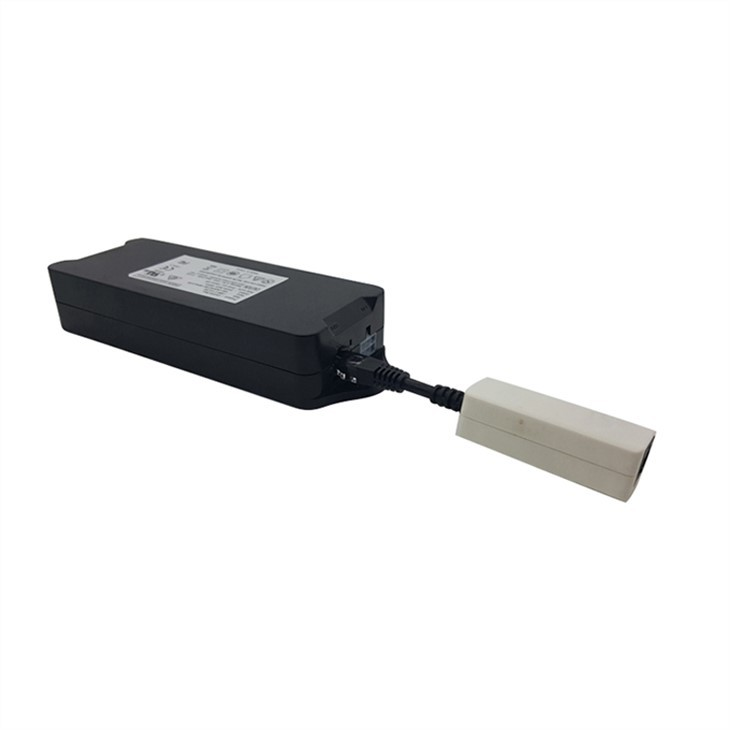

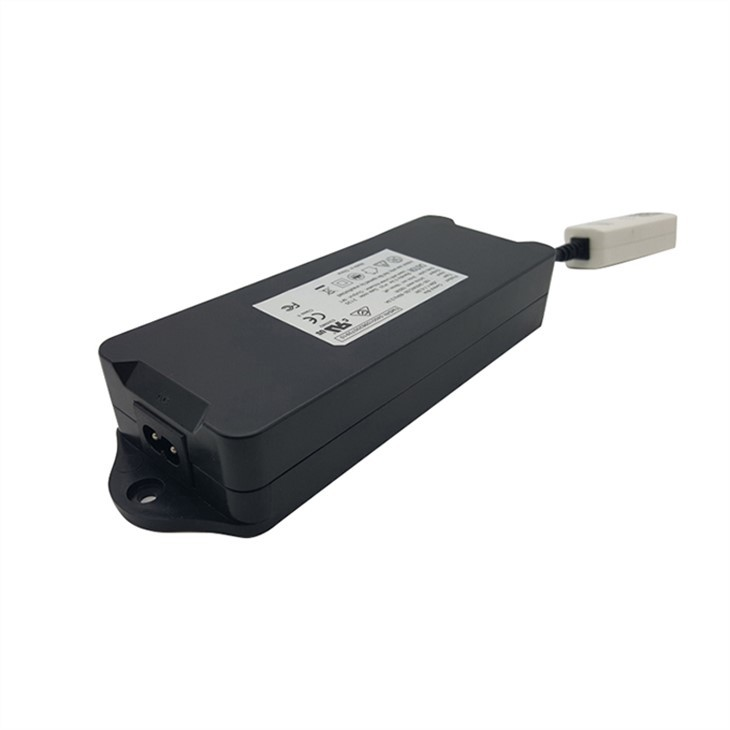

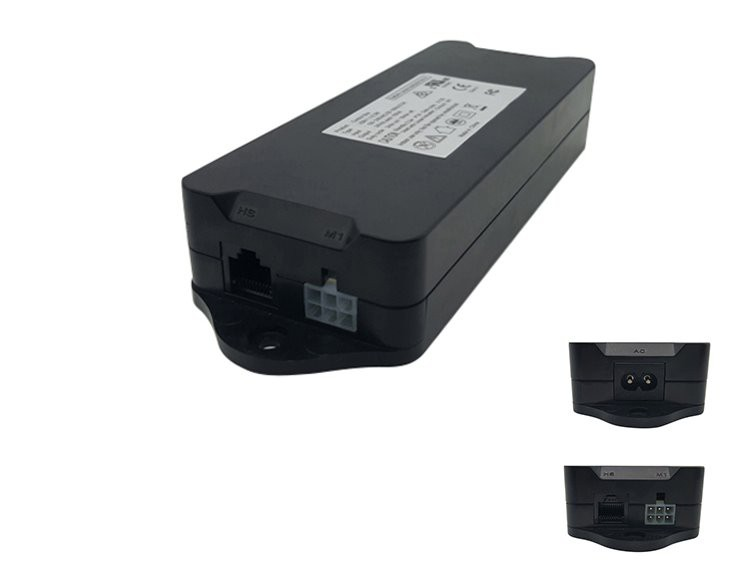

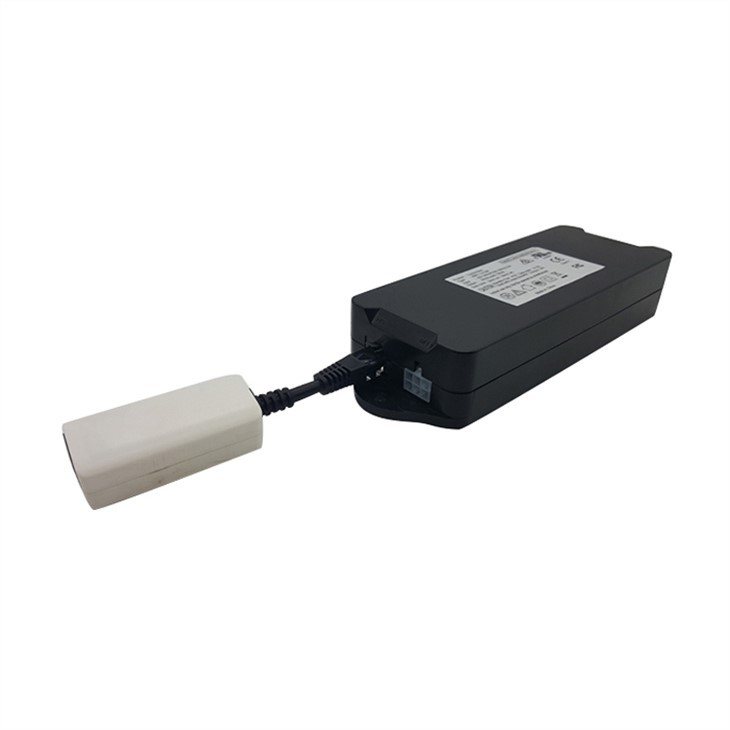

product description of Uplift Table Control System
· JSM-1.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Features
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws

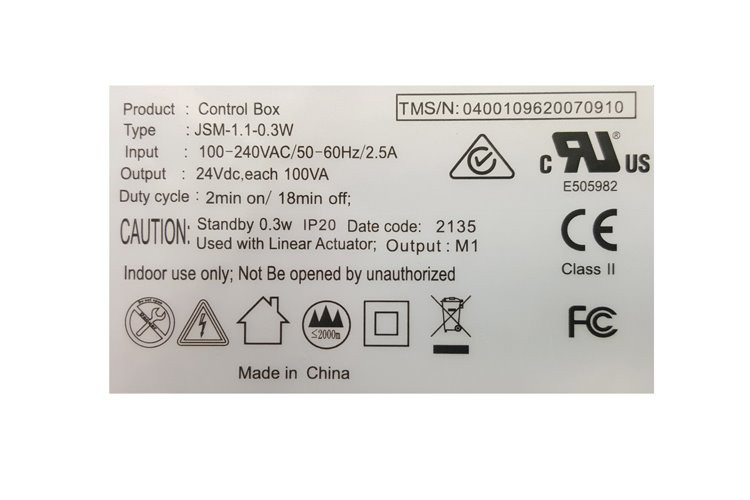

Product parameters
Input voltage | 100-240V |
Maximum power | 150W |
Standby power consumption | 0.3W |
size | 166×66×33mm |
weight | 0.28kg |
Product solutions | MOS scheme |
Instructions
Duty cycle: continuous work for up to 2 minutes within 20 minutes
Use environment: indoor

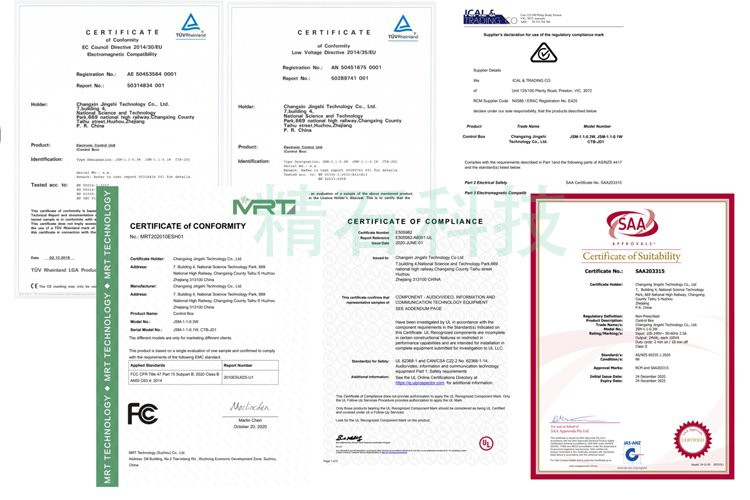

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Adjustable Desk Controller function
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 200KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection

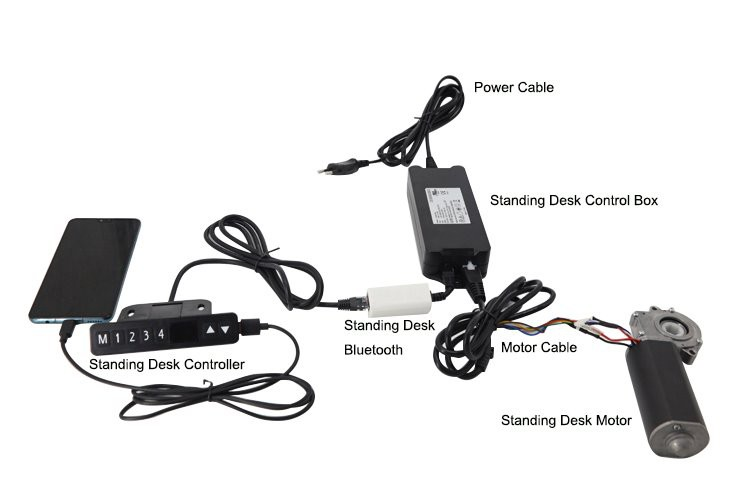

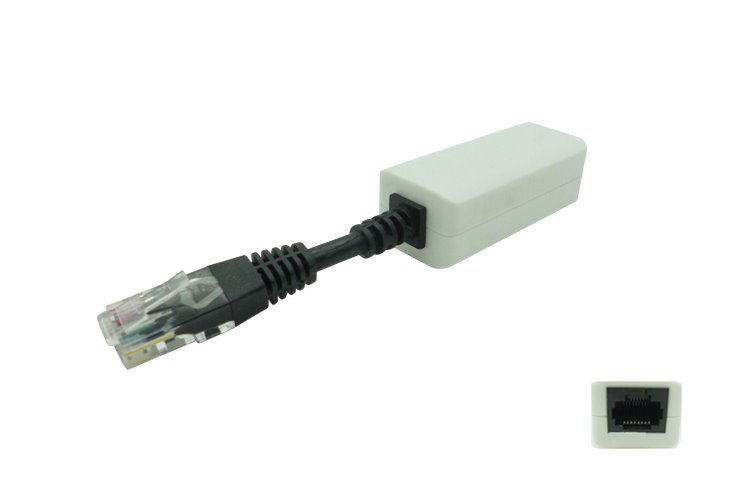

The Bluetooth is external Bluetooth. For Android phones, scan the QR code to download the APP. For Apple phones, search for Electric lift table in the app store to download the APP. After connecting the device, the lifting table can be controlled by the mobile phone. The lift table can be controlled on mobile phone within 50m. According to requirements, Bluetooth can also be installed inside the controller box.
Types of standing desk control box we produce:
Uplift Table Control System is designed and manufactured by Jingshi Technology. Jingshi company makes 1-motor control box, 2-motor control box, 3-motor control box. Up to date, we have innovated 3 generations of control system. We also make hand controllers which can be roughly divided into touch screen controllers and type controllers.
Applications:
Our products are applicable to adjustable desks, massage chairs, massage sofas, electric medical beds, electric leisure beds, smart home and voice recognition.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Contact us for more information about Uplift Table Control System.
