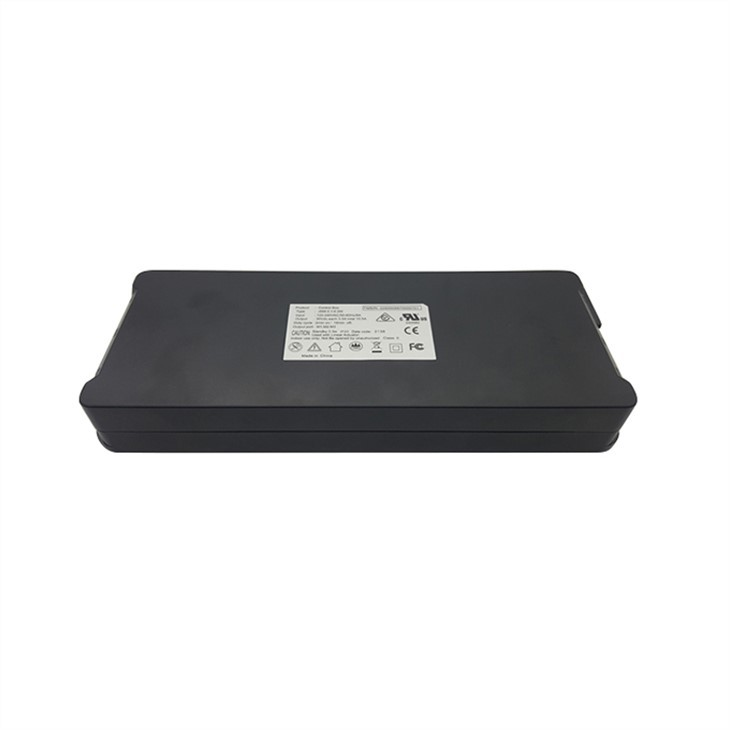

Product description of Adjustable Desk Black control box
·JSM-3.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Through the transfer box, one power supply can supply power to multiple control boxes at the same time. Up to 48 column lifts can be controlled.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Product parameters of Adjustable Desk Black control box
Input voltage | 100-240V |
Maximum power | 450W |
Standby power consumption | 0.3W |
size | 235×95×33mm |
Product solutions | MOS scheme |
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
Photos of our factory:
Company related introduction: In 2014, Jingshi Technology began to cater to customers and tailor the development of the lifting table control system, serving customers in a point-to-point manner.
In 2017, Hangzhou Jingshi Technology Co., Ltd. was founded.
In 2018, Changxing Jingshi Technology Co., Ltd. was founded.
Based on 6 years of technical experience accumulation, Jingshi Technology has developed generation1, 2, 3 control systems which feature small size, full voltage and high power. The product performance and stability have been consistently praised by customers. In the future, we will continue to invest a large amount of fund in the research and development of new products in the field of lifting tables.
Contact us for more information about Adjustable Desk Black control box.
