Triple motor sit stand desk control box can help users easily adjust the surface height according to their needs, reducing the body burden caused by long-term sitting. The controller can control the height of the upgraded drop meter through buttons, remote controller, etc., and can also cooperate with mobile phone applications for remote control. Some high-end upgrade watches also integrate intelligent memory functions, which are sufficient to record user habits and automatically adjust the height of the desktop to provide users with a more comfortable working environment.
Thriple motor sit stand desk control box:
·JSM-3.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Through the transfer box, one power supply can supply power to multiple control boxes at the same time. Up to 48 column lifts can be controlled.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· 0.3W ultra-low standby power consumption

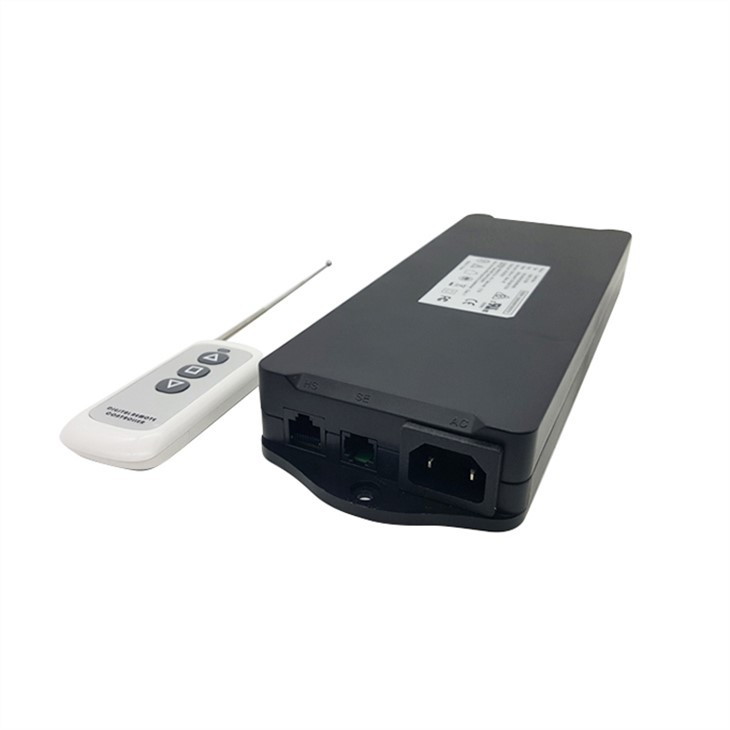

Product parameters of Adjustable table leg control box
| Input voltage | 100-240V |
| Maximum power | 450W |
| Standby power consumption | 0.3W |
| size | 235×95×33mm |
| Product solutions | MOS scheme |
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions of 3-motor control box
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 500KG
3. At most, it supports 48 motors to operate
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. To update the program, it’s not necessary to disassemble the shell, or turn on power
7. It supports Bluetooth and can be controlled by apps and wireless computers

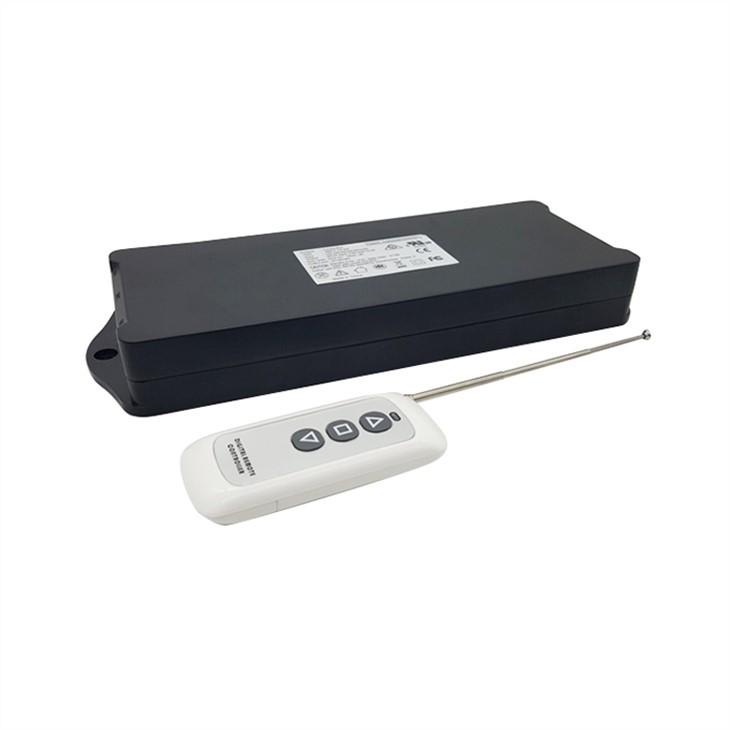

Wireless remote control: There are 3 buttons, up, down and stop. The wireless remote control can remotely control the lifting desk within 200m of the receiver. Only a battery is needed for power supply.
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
| products | 1st generation | 2nd generation | 3rd generation |
| Drive way | Mos+ Relay | Mos | Mos |
| Number of motors | 1,2,3 | 1,2,3 | 1,2 |
| Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
| protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Applications:
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition
Photos of our company:
Company related introduction: Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. We have specialized in the electric lift table industry for more than 6 years; therefore, we have a deeper understanding of it. We can provide customers with high-quality services and fine products, and can provide customers with a strong backing for expanding markets. We are looking forward to build long-term partnership with all enterprises and achieve win-win situation with all partners.
Contact us for more information about Adjustable table leg control box.
