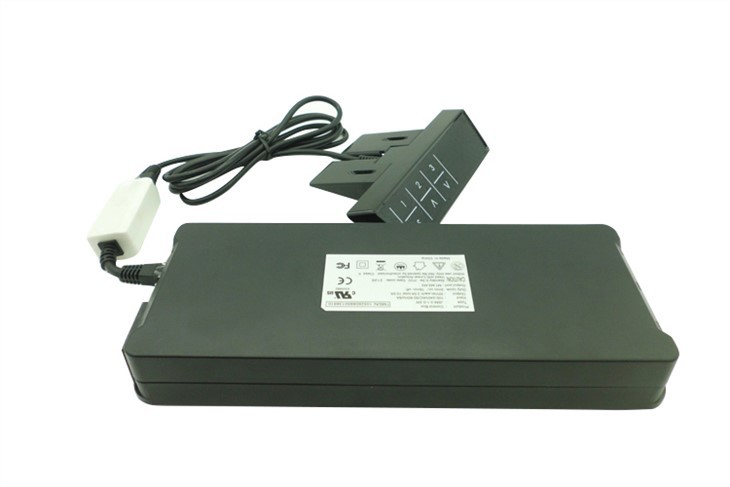

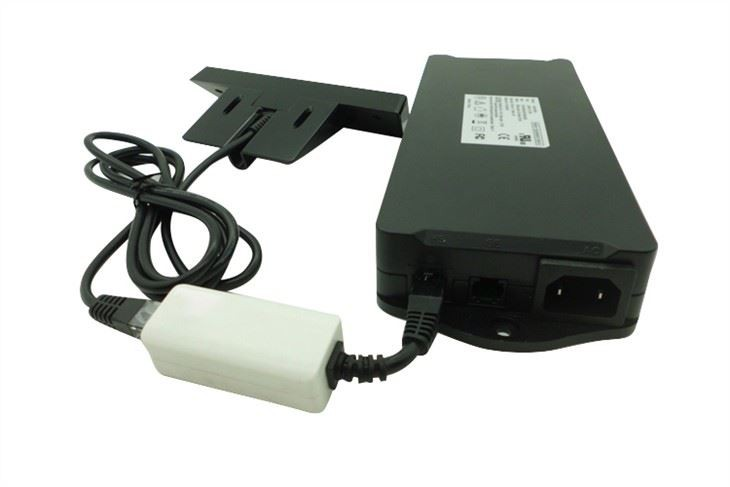

Basic property of Electric Rising Desk Controller
Maximum power: 450W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
This touch-type hand control, holding an advantage of 6 buttons, able to memorize 3 different heights. So it’s convenient to adjust the desk to meet your various needs. And the 6 keys are displayed in 2 rows with the screen on the left side.Whenever pressing button S and a button marked number, the memory will be refreshed.
Bluetooth is external Bluetooth. Download the APP, after connecting the device, the lifting table can be controlled by the mobile phone. The lift table can be controlled on mobile phone within 50m. According to requirements, Bluetooth can also be installed inside the controller box. Interfaces of external Bluetooth APP are shown as below:
Where Bluetooth is installed inside the controller box, download this specific version of APP. Interfaces of internal Bluetooth APP are shown as below:
Types of standing desk control box we produce:
1. What are the characteristics of Jingshi Technology's latest generation of control boxes?
1. Standby power consumption is less than 0.1W, any key to wake up
2. Support high-precision anti-pinch detection
3. Motor short-circuit protection, to prevent burnout to the control system because of motor short-circuit.
4. Support over-voltage protection, optional Bluetooth, wireless and voice functions are available.
Contact us for more information about Electric Rising Desk Controller.
