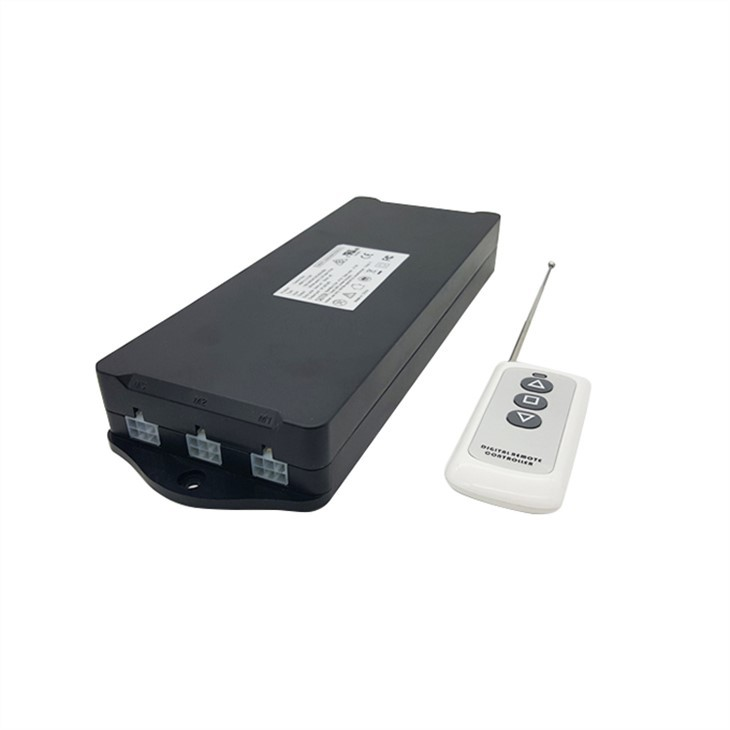

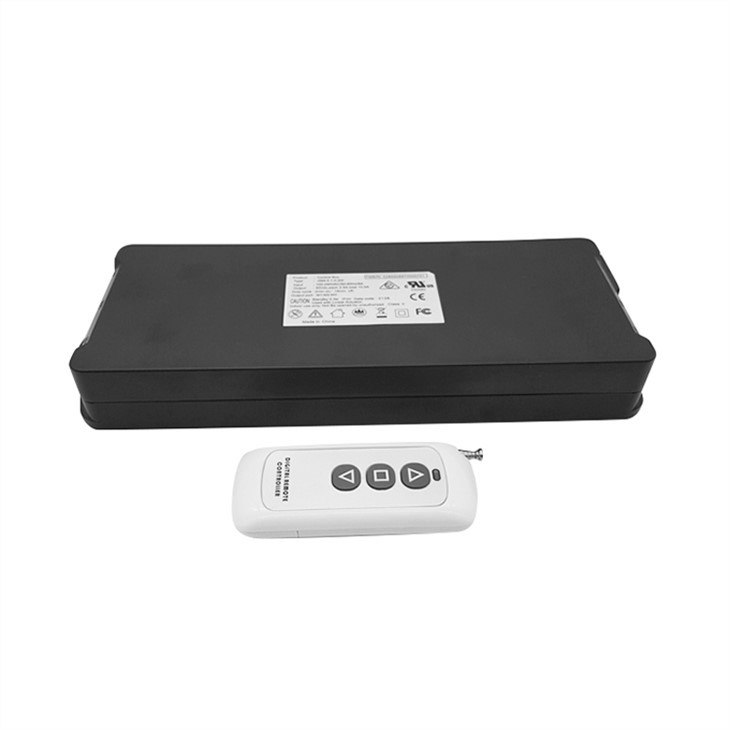

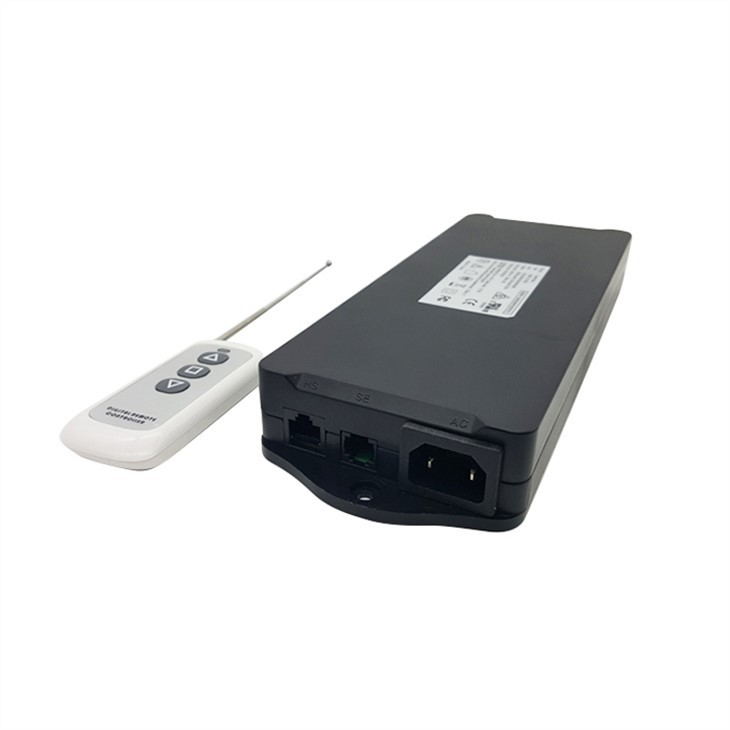

product description of Electric Lift Desk Control System
·JSM-3.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Through the transfer box, one power supply can supply power to multiple control boxes at the same time. Up to 48 column lifts can be controlled.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Features
Number of control columns: 1-3
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Product parameters of Electric Lift Desk Control System
Input voltage | 100-240V |
Maximum power | 450W |
Standby power consumption | 0.3W |
size | 235×95×33mm |
Product solutions | MOS scheme |
Instructions
Duty cycle: continuous work for up to 2 minutes within 20 minutes
Use environment: indoor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Wireless remote control: There are 3 buttons, up, down and stop. The wireless remote control can remotely control the lifting desk within 200m of the receiver. Only a battery is needed for power supply.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Applications:
Our products are applicable to adjustable desks, massage chairs, massage sofas, electric medical beds, electric leisure beds, smart home and voice recognition.
Photos of our factory:
Company related introduction: Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. We have specialized in the electric lift table industry for more than 6 years; therefore, we have a deeper understanding of it. We can provide customers with high-quality services and fine products, and can provide customers with a strong backing for expanding markets. We are looking forward to build long-term partnership with all enterprises and achieve win-win situation with all partners. Contact us for more information about Elevate Desk Control Box System.
