Height Adjustable Desk Control Box

5 0 Reviews
Maximum power: 450W Standby power consumption: <0.3W Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor MOQ=1000 PCS Electric Height Adjustable Desk Controller belongs to 3-motor control box with internal power supply.It features small size, full voltage and high power.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction


Basic property of Height Adjustable Desk Control Box

Maximum power: 450W

Standby power consumption: <0.3W

Duty cycle: 2min ON/18min OFF

Product scheme: MOS conductor

Electric Stand Desk Controller.jpgChina 3 motor control box label.jpg

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

China 3 motor controller certificates.jpgcontrol box manufacturers certificates.jpg


Functions

1. Using MOS conductor scheme with gyroscope

2. With reverse brake function, it does not drop under the weight of 500KG

3. 5KG high-precision collision protection, no malfunction

4. Protection to keep left and right level, preventing things on desk from falling

5. When No-load, it can run continuously for 20 minutes without protection

6. It supports Bluetooth and can be controlled by apps and wireless computers

7. System parameters can be modified by PC software

8. To update the program, it's not necessary to disassemble the shell, or turn on power

9. Quite convenient to check system problems with 30 error codes

10. 100% simultaneity, 10,000 operations, 0 error on 2 columns

11. At most, Height Adjustable Desk Control Box supports 48 motors to operate


China standing desk remote.jpg

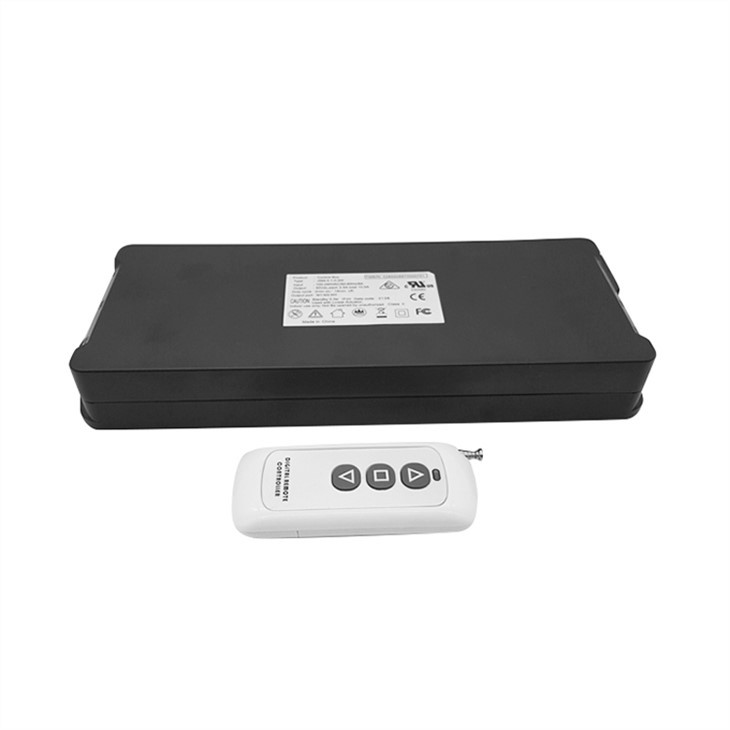

Wireless remote control: There are 3 buttons, up, down and stop. The wireless remote control can remotely control the lifting desk within 200m of the receiver. Only a battery is needed for power supply.


Types of standing desk control box we produce:

wholesale standing desk control boxes.jpg


Jingshi company makes 1-motor control box, 2-motor control box, 3-motor control box. Up to date, we have innovated 3 generations of control system. We also make hand controllers which can be roughly divided into touch screen controllers and type controllers. Moreover, accessories of control system, such as motors, rechargeable battery packs, Bluetooth, adapters and cables, are all available. Our products can be tailored and support ODM and OEM.


wholesale sit stand desk control system.jpg


China, North America, Europe and Japan are our major markets.

In 2018, we sold 22,500 sets of products to Europe and 27,500 sets to US.

In 2019, we sold 126,000 sets of products to Europe and 154,000 sets to US .

In 2020, we sold 328,500 sets of products to Europe and 401,500 sets to US.

Despite many obstacles, Jingshi Technology takes a good momentum of growth and continues to provide excellent products and service for our clients from home and abroad.


Applications of Height Adjustable Desk Control Box:

China control box application.jpg


Company related introduction:

Jingshi Technology comprises of two firms, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. Since 2014, we have accumulated experience in this industry for some 6 years. Therefore, we have more comprehension of the field. Jingshi Technology is able to offer customers high-quality products and service, strongly backing up customers to expand markets. Jingshi Technology expect to develop long-term partnership with all companies and create win-win situation with all businesses.

202112161543479eb363e81512483db4df2c6b8bd30f79standing desk control box supplierselectric desk control box factory




Previous:
Next:

Related Products

Model JSM-2.1-0.3W
Input 100-240V 50/60Hz, 5A
Output 32Vdc, each 110VA, total 220VA
Maximum power 350W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL, UKCA, SAA, KC
0
0
Model JSM-4.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 32Vdc, each 110VA, total 220VA
Maximum power 600W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-1.1-0.3W
Input 100-240V 50/60Hz, 2.5A
Output 24Vdc, each 100VA
Maximum power 150W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Angular design, with 1.5m connection cable
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Compact and flexible design, with 1.5m connection cable
0
0
Piano key design with background light
Lifting function,3 memory positions can be selected
Optional USB charging
Strong design technology, with 1.5m connection cable
0
0
Bluetooth support
OLEO display, rich menu
With two memory buttons
Smart appearance, RGB light effect
Up and down operation mode is flexible and fast
The startup Logo is displayed. Can customize the logo
0
0
Bluetooth support
With two memory buttons
Smart appearance, RGB light effect
Slim touch keys with background light
Supports max 18W Type-c fast charging
OLEO display, rich menu, Can customize the logo
0
0
OLEO display, rich menu
The knob can be pressed as a key
Knob comes with RGB light effect
The knob automatically rotates with the table
The startup Logo is displayed. Can customize the logo
Knob using BLOC motor, through the FOC control can simulate a variety of feel
0
0
