Height Adjustable Executive Desk Control Box

5 0 Reviews
Type: JSM-3.1-0.3W Input: 100-240V 50-60Hz, 8A Output: 30Vdc, each 3.5A, total 10.5A Maximum power: 450W Standby power consumption: <0.3W Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc. MOQ=1000 PCS Height Adjustable Executive Desk Control Box belongs to 3-motor control box with internal power supply. It features small size, full voltage and high power. And the remote enables users to remotely control sit stand desks.
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

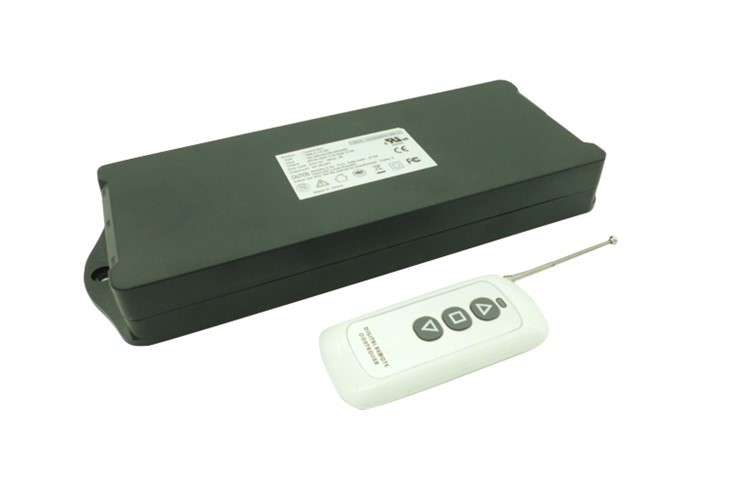

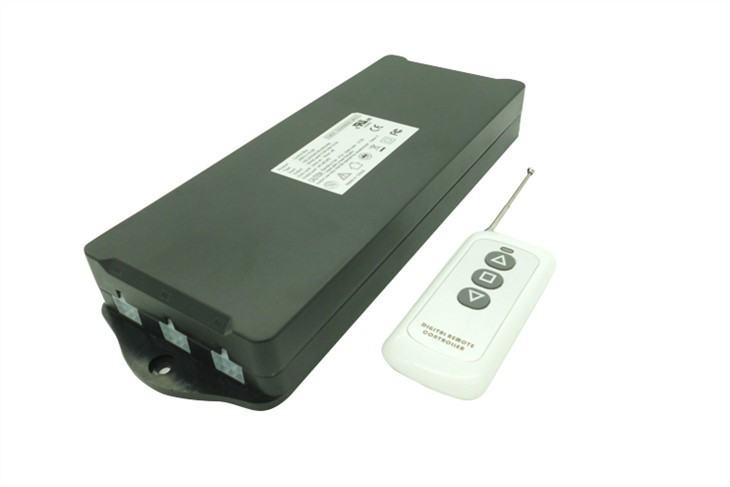

Height Adjustable Executive Desk Control Box belongs to 3-motor control box with internal power supply. It features small size, full voltage and high power. And the remote enables users to remotely control sit stand desks.

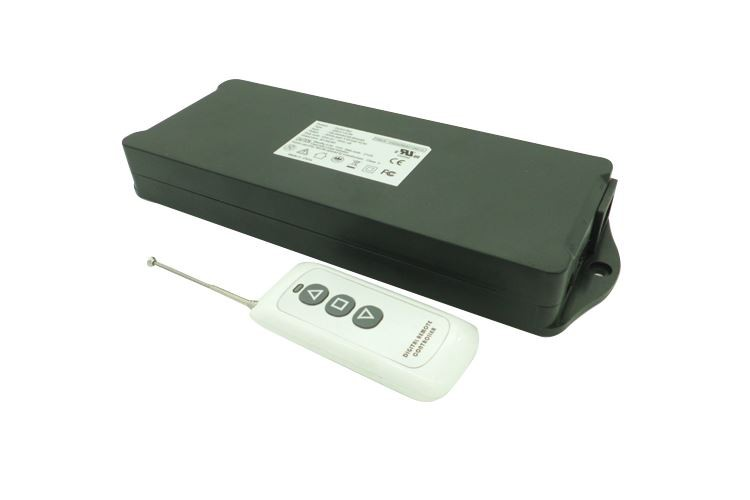

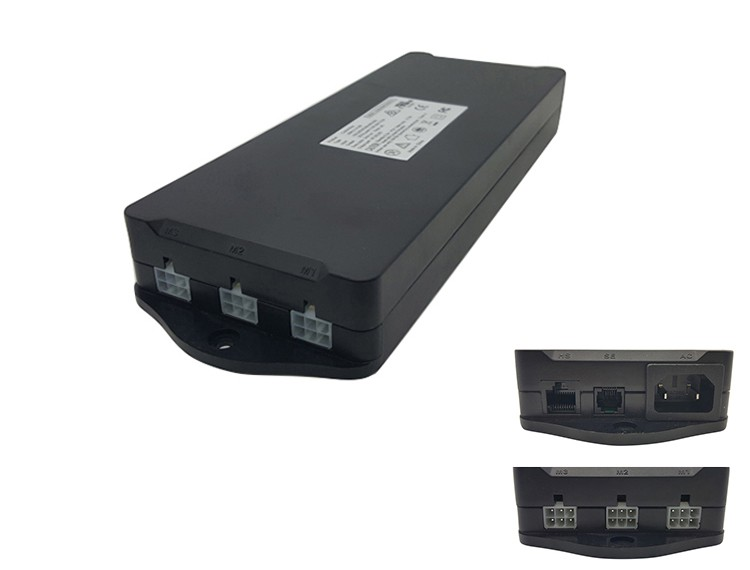

Height Adjustable Executive Desk Control Box 5Electric Stand Desk Controller.jpg

Basic property

Type: JSM-3.1-0.3W

Input: 100-240V 50-60Hz, 8A<br />

Output: 30Vdc, each 3.5A, total 10.5A<br />

Maximum power: 450W

Standby power consumption: <0.3W

Duty cycle: 2min ON/18min OFF

Product scheme: MOS conductor

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

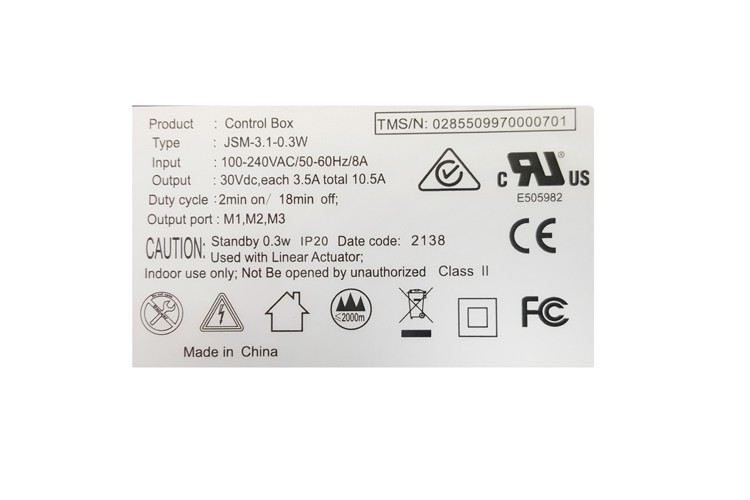

China 3 motor control box label.jpg

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

China 3 motor controller certificates.jpgcontrol box manufacturers certificates.jpgChina standing desk remote.jpg

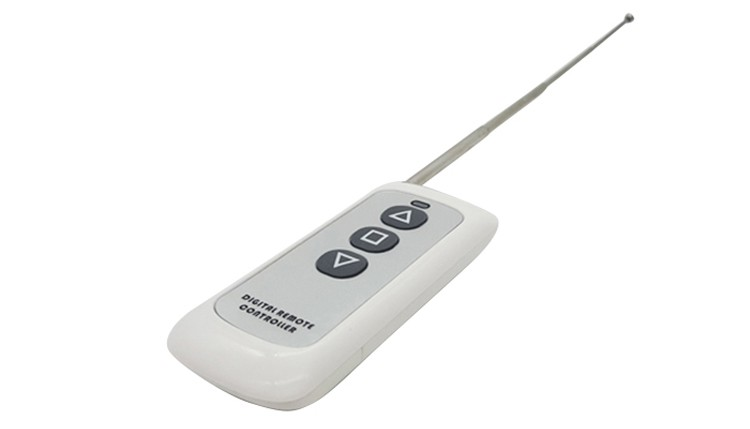

Wireless remote control: There are 3 buttons, up, down and stop. The wireless remote control can remotely control the lifting desk within 200m of the receiver. Only a battery is needed for power supply.

Comparison of three generations of control boxes made by JS Technology

products

1st generation

2nd generation

3rd generation

Number of motors

1,2,3

1,2,3

1,2

Anti-pinch method

Current/torsion sensor

Current + patented sensor

Current + patented sensor

Bluetooth

Support

Support

Support

Multi-machine parallel

not support

Support up to 16

not support

EMC

Pass

Pass

Pass

modify parameters on PC

Support

Support

Support

Types of standing desk control box we produce:

wholesale standing desk control boxes.jpg

Applications

applications of standing desk control box.jpg

Photos of factory:

sit stand desk control box manufacturers.png

Company related introduction:

JS Technology comprises of two firms, Hangzhou JS Technology Co., Ltd. and Changxing JS Technology Co., Ltd. Since 2014, we have accumulated experience in this industry for some 6 years. Therefore, we have more comprehension of the field. JS Technology is able to offer customers high-quality products and service, strongly backing up customers to expand markets. JS Technology expect to develop long-term partnership with all companies and create win-win situation with all businesses.

If you have any questions about Height Adjustable Executive Desk Control Box, don’t hesitate to contact us.


Previous:
Next:

Related Products

Model JSM-2.1-0.3W
Input 100-240V 50/60Hz, 5A
Output 32Vdc, each 110VA, total 220VA
Maximum power 350W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL, UKCA, SAA, KC
0
0
Model JSM-4.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 32Vdc, each 110VA, total 220VA
Maximum power 600W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-1.1-0.3W
Input 100-240V 50/60Hz, 2.5A
Output 24Vdc, each 100VA
Maximum power 150W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Angular design, with 1.5m connection cable
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Compact and flexible design, with 1.5m connection cable
0
0
Piano key design with background light
Lifting function,3 memory positions can be selected
Optional USB charging
Strong design technology, with 1.5m connection cable
0
0
Bluetooth support
OLEO display, rich menu
With two memory buttons
Smart appearance, RGB light effect
Up and down operation mode is flexible and fast
The startup Logo is displayed. Can customize the logo
0
0
Bluetooth support
With two memory buttons
Smart appearance, RGB light effect
Slim touch keys with background light
Supports max 18W Type-c fast charging
OLEO display, rich menu, Can customize the logo
0
0
OLEO display, rich menu
The knob can be pressed as a key
Knob comes with RGB light effect
The knob automatically rotates with the table
The startup Logo is displayed. Can customize the logo
Knob using BLOC motor, through the FOC control can simulate a variety of feel
0
0
We have invested in the field of intelligent office, motor drive, electric wheelchair and so on, and the intelligent office field has done very outstandingly.
