L Shaped Desk Sit Stand Control Box

5 0 Reviews

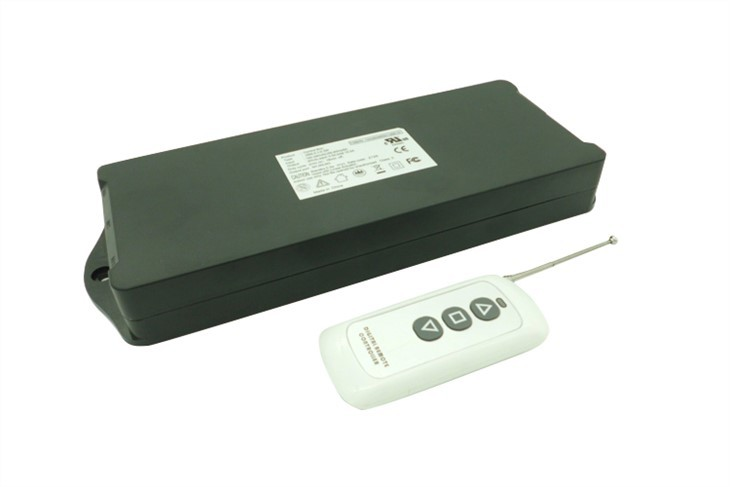

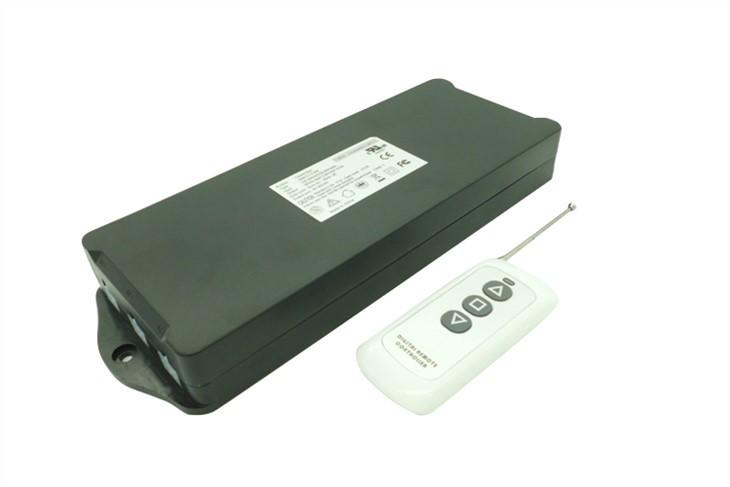

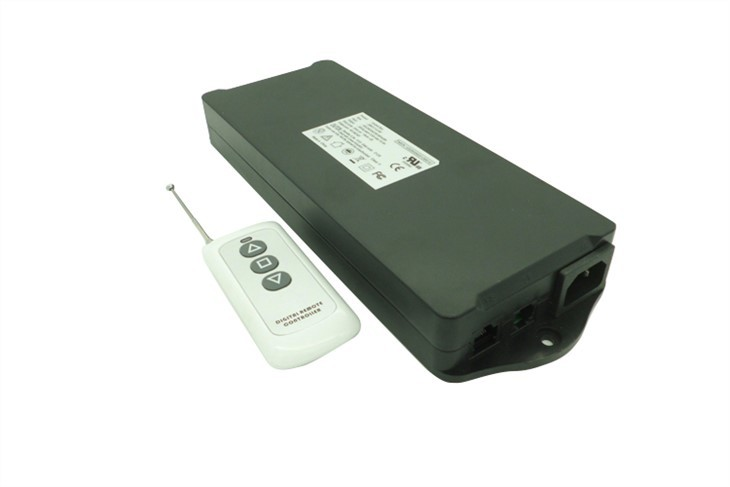

Type: JSM-3.1-0.3W Input: 100-240V 50-60Hz, 8A Output: 30Vdc, each 3.5A, total 10.5A Maximum power: 450W Standby power consumption: <0.3W Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc. MOQ=1000 PCS L Shaped Desk Sit Stand Control Box belongs to 3-motor control box with internal power supply. It features small size, full voltage and high power. And the remote enables users to remotely control sit stand desks.
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

L Shaped Desk Sit Stand Control Box features small size, full voltage and high power. And the remote enables users to remotely control sit stand desks.

L Shaped Desk Sit Stand Control Box 4Electric Stand Desk Controller.jpg

Basic property

China 3 motor control box label.jpg

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

China 3 motor controller certificates.jpgcontrol box manufacturers certificatesChina standing desk remote.jpg

Wireless remote control: There are 3 buttons, up, down and stop. The wireless remote control can remotely control the lifting desk within 200m of the receiver.




Types of standing desk control box we produce:

wholesale standing desk control boxes.jpg


Applications of L Shaped Desk Sit Stand Control Box


applications of standing desk control box.jpg

Photos of factory:

sit stand desk control box manufacturers.png

Company related introduction:

In 2014, Jingshi Technology began to cater to customers and tailor the development of the lifting table control system, serving customers in a point-to-point manner.

Based on 6 years of technical experience accumulation, Jingshi Technology has developed generation1, 2, 3 control systems which feature small size, full voltage and high power. The product performance and stability have been consistently praised by customers. In the future, we will continue to invest a large amount of fund in the research and development of new products in the field of lifting tables.

If you have any questions about L Shaped Desk Sit Stand Control Box, don’t hesitate to contact us.


Previous:
Next:

Related Products

Model JSM-2.1-0.3W
Input 100-240V 50/60Hz, 5A
Output 32Vdc, each 110VA, total 220VA
Maximum power 350W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL, UKCA, SAA, KC
0
0
Model JSM-4.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 32Vdc, each 110VA, total 220VA
Maximum power 600W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-1.1-0.3W
Input 100-240V 50/60Hz, 2.5A
Output 24Vdc, each 100VA
Maximum power 150W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Angular design, with 1.5m connection cable
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Compact and flexible design, with 1.5m connection cable
0
0
Piano key design with background light
Lifting function,3 memory positions can be selected
Optional USB charging
Strong design technology, with 1.5m connection cable
0
0
Bluetooth support
OLEO display, rich menu
With two memory buttons
Smart appearance, RGB light effect
Up and down operation mode is flexible and fast
The startup Logo is displayed. Can customize the logo
0
0
Bluetooth support
With two memory buttons
Smart appearance, RGB light effect
Slim touch keys with background light
Supports max 18W Type-c fast charging
OLEO display, rich menu, Can customize the logo
0
0
OLEO display, rich menu
The knob can be pressed as a key
Knob comes with RGB light effect
The knob automatically rotates with the table
The startup Logo is displayed. Can customize the logo
Knob using BLOC motor, through the FOC control can simulate a variety of feel
0
0
