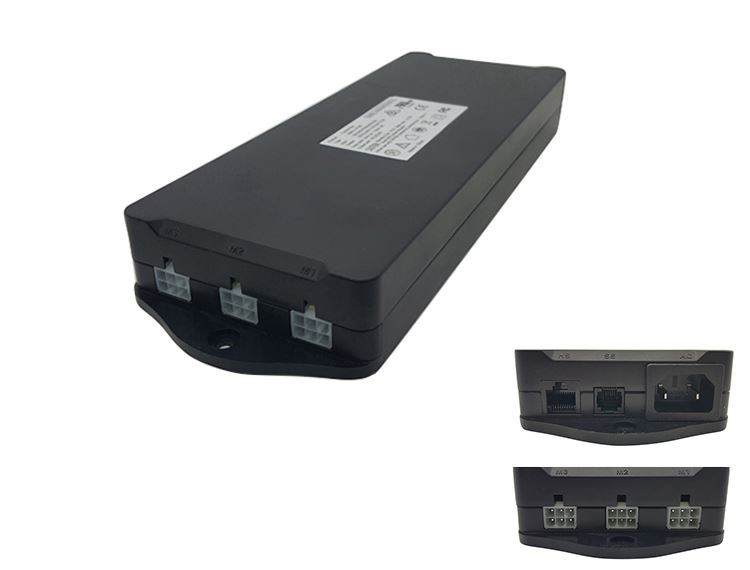

Lotus Sit Stand Workstation Control Box

5 0 Reviews
Type: JSM-3.1-0.3W
Input: 100-240V 50-60Hz, 8A
Output: 30Vdc, each 3.5A, total 10.5A
Maximum power: 450W
Standby power consumption:<0.3W
MOQ=1000 PCS
Lotus Sit Stand Workstation Control Box belongs to 3-motor control box with internal power supply. It features small size, full voltage and high power. The switch panel can memorize 4 different positions and there is a charging port to charge cellphones. The Bluetooth enables users to control sit stand desks on cellphone.
Quantity:
Product Introduction

product description of Lotus Sit Stand Workstation Control Box




·JSM-3.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables

· Through the transfer box, one power supply can supply power to multiple control boxes at the same time. Up to 48 column lifts can be controlled.

· Equipped with a bounce back function to ensure the safe operation of the lift table

· With slow start and slow stop functions

· 0.3W ultra-low standby power consumption

Electric Stand Desk Controller

Features




Number of control columns: 1-3

Colour: Black

Shell: ABS material

Installation method: can be fixed on the desktop board by screws

Overload protection: avoid overload operation by limiting the current to a specific value

Overheating protection, motor open circuit, Hall fault, motor short circuit, low voltage, illegal power failure, illegal plugging and unplugging, excessive desktop tilt angle, anti-pinch upward and downward

China 3 motor control box label

Product parameters of Lotus Sit Stand Workstation Control Box



Input voltage

100-240V

Maximum power

450W

Standby power consumption

0.3W

size

235×95×33mm

Product solutions

MOS scheme



Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

cheap standing desk Bluetooth

The Bluetooth is external Bluetooth. For Android phones, scan the QR code to download the APP. For Apple phones, search for Electric lift table in the app store to download the APP. After connecting the device, the lifting table can be controlled by the mobile phone.

QR code of external Bluetooth

wholesale switch panel 7-key USB

Button Type Standing Desk Hand Controller holds an advantage of 7 buttons, able to set 4 different heights in memory. Button Type Standing Desk Hand Controller is delicate and light, hand-size with 1.5m long wire and USB end, easily installed. The screen will automatically show you real-time height, making it much more easy to adjust your desk to suitable height. There is a USB interface on the side enabling users to charge up cellphones.

sit stand desk control box manufacturers

Company related introduction




Jingshi company places great emphasis on innovating technology and optimizing procurement channels, and achieves product stability through cooperation with our partners. Our products have independent intellectual property rights and patents, and the products have been sold to more than 10 countries around the world. Products have acquired many global certifications, such as UL, CB, CE, etc. In 2018, Jingshi company was rated by customers as China's leading solution provider concerning adjustable desk control system.


FAQ




1. Are you a trading company or manufacturer?

Jingshi Technology is a manufacturer with its own factory. Jingshi owns two companies, Hangzhou Jingshi Technology and Changxing Jingshi Technology.

2. How about the size of the company, the number of production and R&D personnel?

Jingshi Technology covers an area of 4000 square meters altogether with 120 staff including 12 R&D personnel.

3. Can the products be tailored? Can you do OEM and ODM?

Sure. All products can be customized according to users’ needs, and we support both OEM and ODM.
