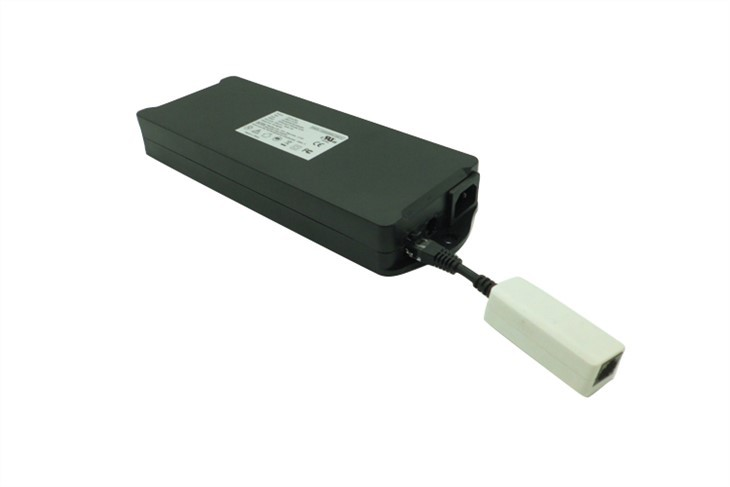

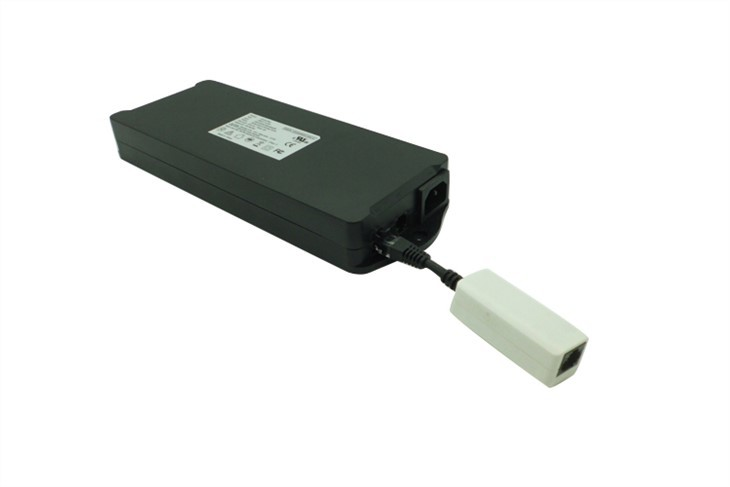

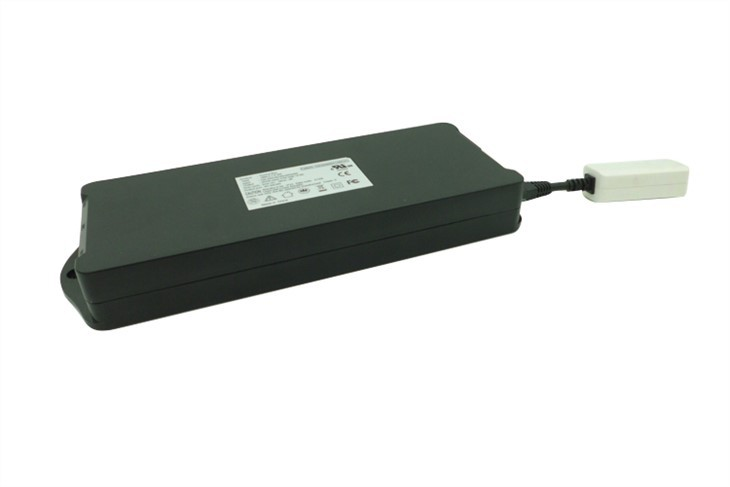

Motorized Height Adjustable Desk Control Box belongs to 3-motor control box with internal power supply. The Bluetooth enables users to control sit stand desks on cellphone.

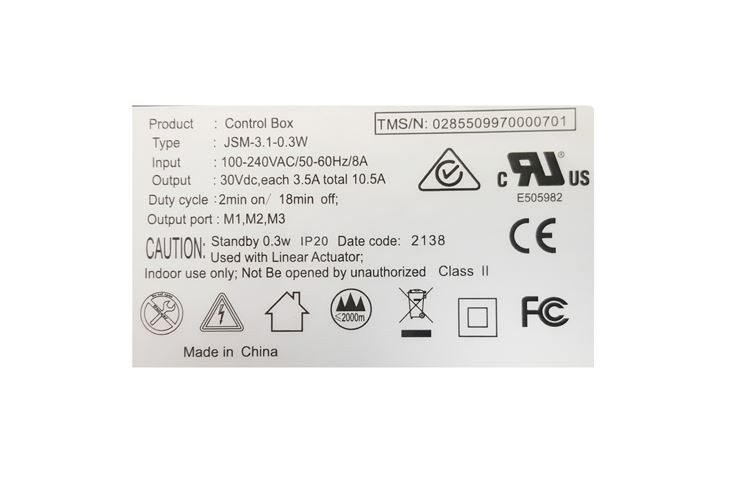

Basic property
Type: JSM-3.1-0.3W
Input: 100-240V 50-60Hz, 8A
Output: 30Vdc, each 3.5A, total 10.5A
Maximum power: 450W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor

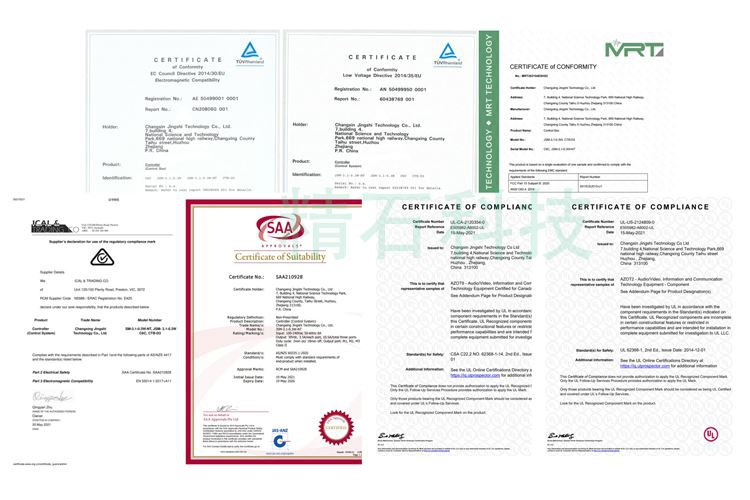

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 500KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
10. 100% simultaneity, 10,000 operations, 0 error on 2 columns
11. At most, Motorized Height Adjustable Desk Control Box supports 48 motors to operate

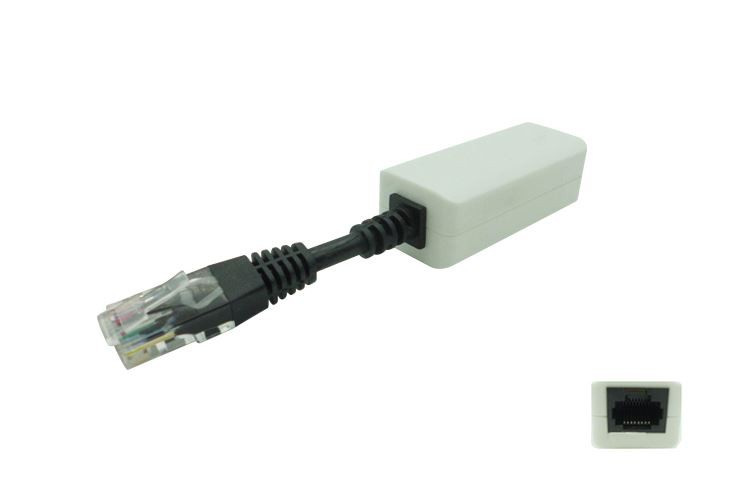

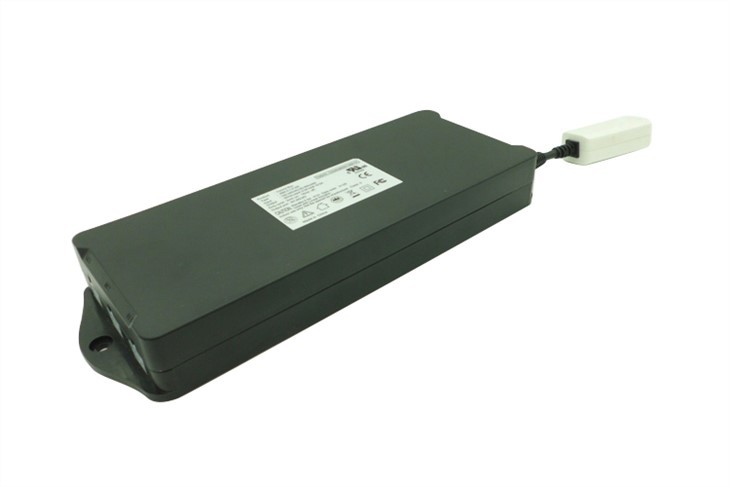

This is external Bluetooth. Scan corresponding QR code to download the APP, after connecting the device, the lifting table can be controlled by the mobile phone. The lift table can be controlled on mobile phone within 50m. According to requirements, Bluetooth can also be installed inside the controller box.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Bluetooth | Support | Support | Support |
Multi-machine parallel | not support | Support up to 16 | not support |
EMC | Pass | Pass | Pass |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Types of standing desk control box we produce:
JS company makes 1-motor control box, 2-motor control box, 3-motor control box. Up to date, we have innovated 3 generations of control system. We also make hand controllers which can be roughly divided into touch screen controllers and type controllers. Moreover, accessories of control system, such as rechargeable battery packs, Bluetooth, adapters and cables, are all available. Our products can be tailored and support ODM and OEM.

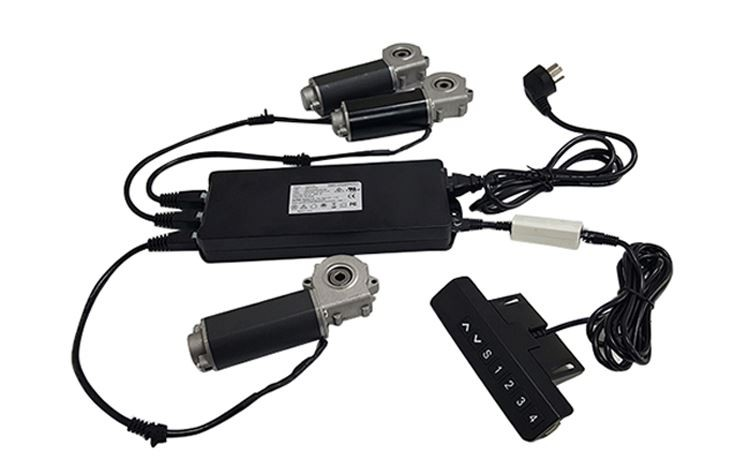

Applications of Motorized Height Adjustable Desk Control Box

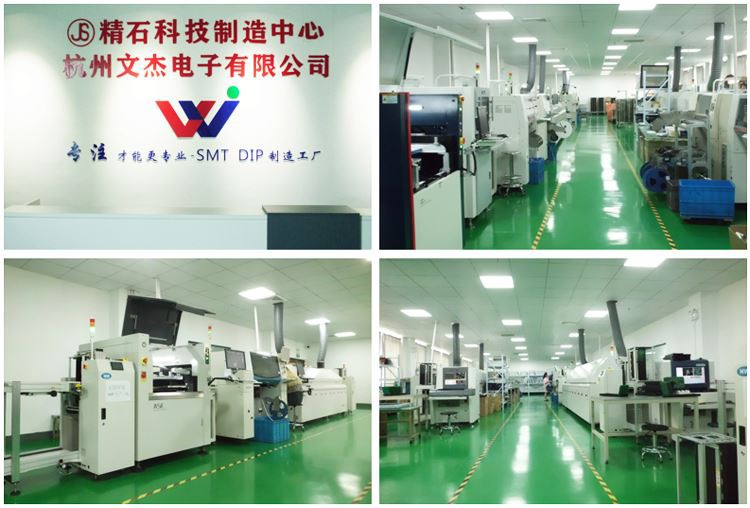

Photos of factory:
Company related introduction: JS Technology has two companies, Hangzhou JS Technology Co., Ltd. and Changxing JS Technology Co., Ltd. We have specialized in the electric lift table industry for more than 6 years, therefore, we have a deeper understanding of it. We can provide customers with high-quality services and fine products, and can provide customers with a strong backing for expanding markets. We are looking forward to build long-term partnership with all enterprises and achieve win-win situation with all partners.
