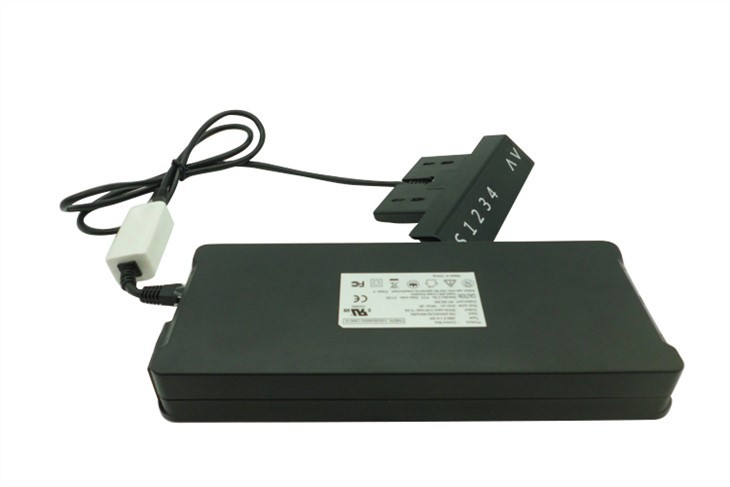

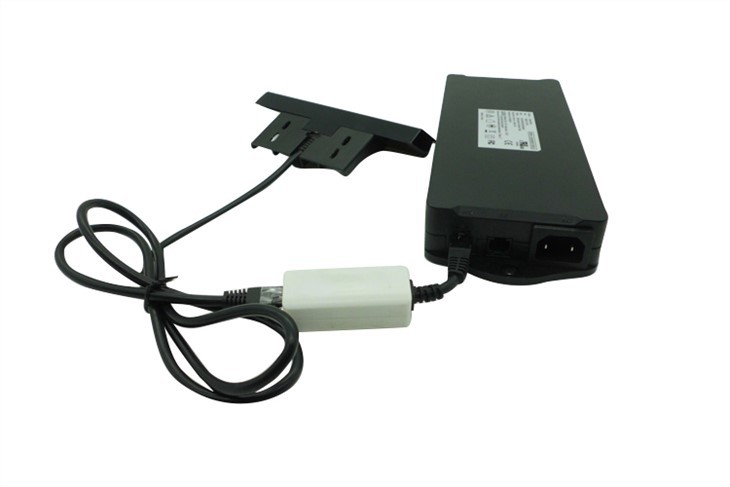

Office Desk Adjustable Height Controller belongs to 3-motor control box with internal power supply.
It features small size, full voltage and high power. The Bluetooth enables users to control sit stand desks on cellphone. And the keypad adopts touch screen.
Basic property
Maximum power: 450W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions
1. With reverse brake function, it does not drop under the weight of 500KG
2. 5KG high-precision collision protection, no malfunction
3. Protection to keep left and right level, preventing things on desk from falling
4. It supports Bluetooth and can be controlled by apps and wireless computers
5. System parameters can be modified by PC software

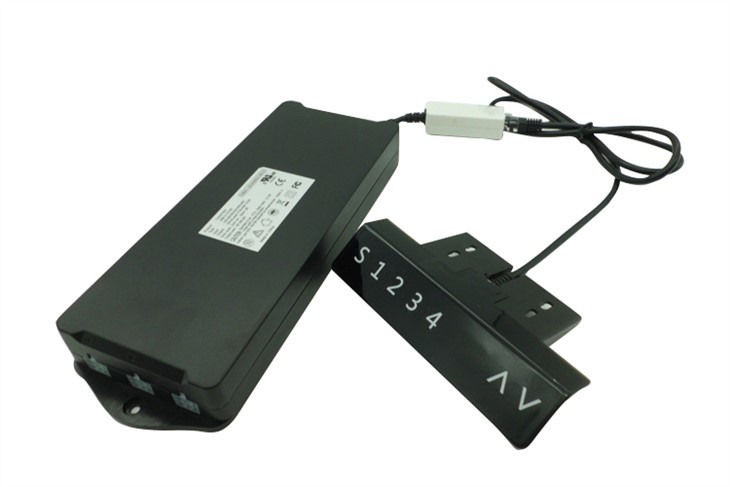

This Hand Control belongs to touch type hand control, holding an advantage of 7 buttons, able to memorize 4 different heights. Whenever pressing button S and a button marked number, the memory will be refreshed.
Bluetooth is external Bluetooth. Scan corresponding QR code to download the APP, after connecting the device, the lifting table can be controlled by the mobile phone. The lift table can be controlled on mobile phone within 50m. According to requirements, Bluetooth can also be installed inside the controller box. Interfaces of Bluetooth APP are shown as below:
Where Bluetooth is installed inside the controller box, you should scan the other QR code to download this specific version of APP.
Types of standing desk control box we produce:
Jingshi company makes Office Desk Adjustable Height Controller and our products include 1-motor control box, 2-motor control box, 3-motor control box. Up to date, we have innovated 3 generations of control system. We also make hand controllers which can be roughly divided into touch screen controllers and type controllers. Moreover, accessories of control system, such as motors, rechargeable battery packs, Bluetooth, adapters and cables, are all available. Our products can be tailored and support ODM and OEM.
Applications:
FAQ
1. Are you a trading company or manufacturer?
Jingshi Technology is a manufacturer with its own factory. Jingshi owns two companies, Hangzhou Jingshi Technology and Changxing Jingshi Technology.
2. How about the size of the company, the number of production and R&D personnel?
Jingshi Technology covers an area of 4000 square meters altogether with 120 staff including 12 R&D personnel.
3. How long does it take to finish mass production? What is the MOQ?
After order details and production are confirmed, 30-35days.
MOQ=1000 pieces
4. Can I get some samples ? Is it free?
We can offer a few samples for free, and the transport cost is on clients.
If you have any questions about Office Desk Adjustable Height Controller, don’t hesitate to contact us.
