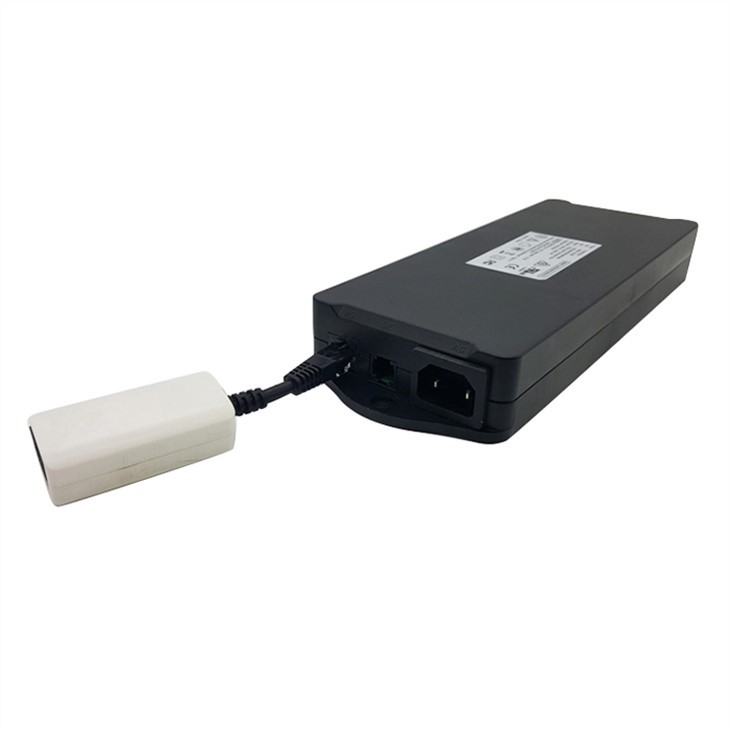

product description of Wood Height Adjustable Desk Control Box
·JSM-3.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Through the transfer box, one power supply can supply power to multiple control boxes at the same time. Up to 48 column lifts can be controlled.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Product parameters of Wood Height Adjustable Desk Control Box
Input voltage | 100-240V |
Maximum power | 450W |
Standby power consumption | 0.3W |
size | 235×95×33mm |
Product solutions | MOS scheme |
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
The Bluetooth is external Bluetooth. For Android phones, scan the QR code to download the APP. For Apple phones, search for Electric lift table in the app store to download the APP. After connecting the device, the lifting table can be controlled by the mobile phone. The lift table can be controlled on mobile phone within 50m. According to requirements, Bluetooth can also be installed inside the controller box.
Quality management concept
1. Quality is the starting point of value and respect, and is the lifeblood of a company's survival.
2. All raw materials are inspected randomly, and the whole batch must be inspected in case of defects. Where incidence of defects exceeds 0.2%, the materials will be returned to the supplier and rectification is required.
3. 100% of released products get through 2-hour aging test. We by no means allow any products that fail ageing test to flow into the market.
4. 100% of defective products returned from all markets are disassembled and analyzed. We by no means allow any products that need to be fixed to flow into the market.
If you have any questions about Wood Height Adjustable Desk Control Box, don’t hesitate to contact us.
