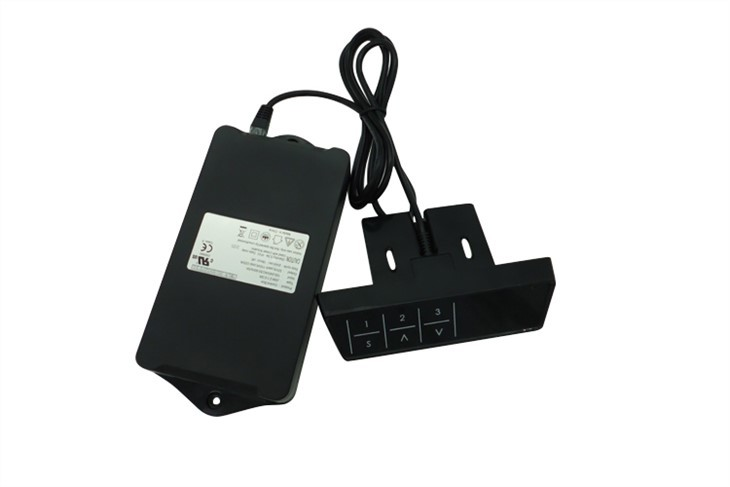

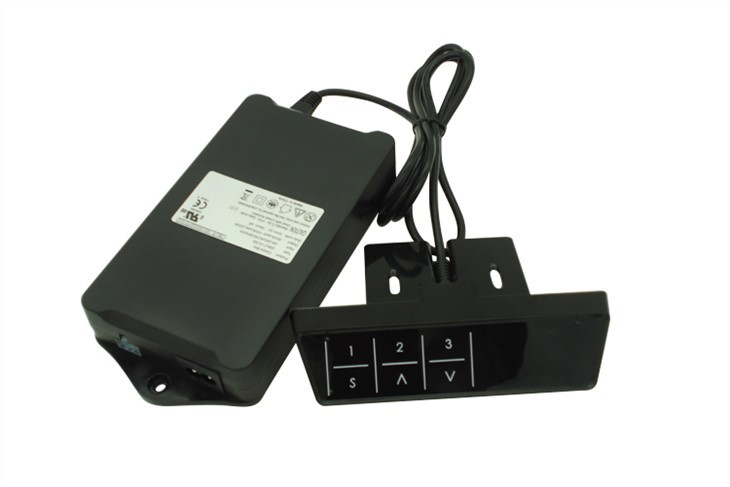

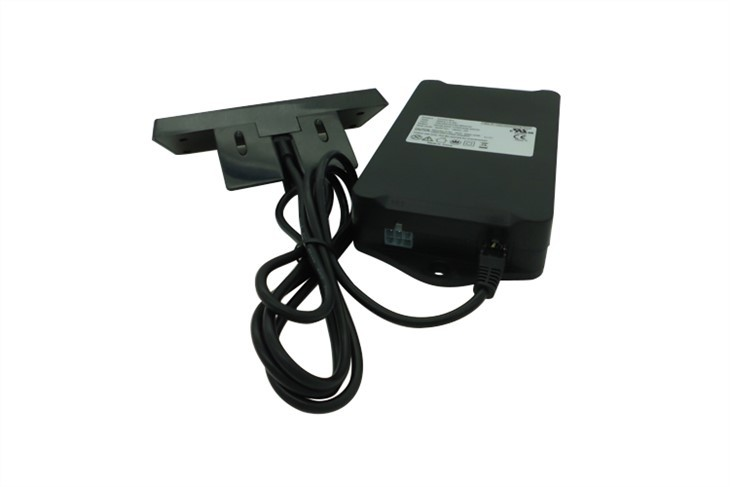

Standing Desk Lift Control Box belongs to 2-motor control box with internal power supply. It features small size, full voltage and high power. And the keypad adopts touch screen able to memorize 3 different positions.
Basic property
Maximum power: 350W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions
1. With reverse brake function, it does not drop under the weight of 400KG
2. 5KG high-precision collision protection, no malfunction
3. Protection to keep left and right level, preventing things on desk from falling
4. When No-load, it can run continuously for 20 minutes without protection
5. It supports Bluetooth and can be controlled by apps and wireless computers
6. System parameters can be modified by PC software
This touch-type hand control, holding an advantage of 6 buttons, able to memorize 3 different heights. And the 6 keys are displayed in 2 rows with the screen on the left side. Pressing button S then button No.1, button No.1 will memorize the present height, so pressing No.1, the desk will return to the height you saved. Buttons of No.2,3 are the same. Whenever pressing button S and a button marked number, the memory will be refreshed.
Types of standing desk control box we produce:
Standing Desk Lift Control Box are manufactured by Jingshi factory. China, North America, Europe and Japan are our major markets.
In 2018, we sold 22,500 sets of products to Europe and 27,500 sets to US.
In 2019, we sold 126,000 sets of products to Europe and 154,000 sets to US.
In 2020, we sold 328,500 sets of products to Europe and 401,500 sets to US .
Despite many obstacles, Jingshi Technology takes a good momentum of growth and continues to provide excellent products and service for our clients from home and abroad.
Applications of Control Box:
Our products are applicable to adjustable desks, massage chairs, massage sofas, electric medical beds, electric leisure beds, smart home and voice recognition.
Unknown application areas:
The linear drive system can be customized and developed according to customer requirements.
Contact us for more information about Standing Desk Lift Control Box.
Photos of company and factory:
